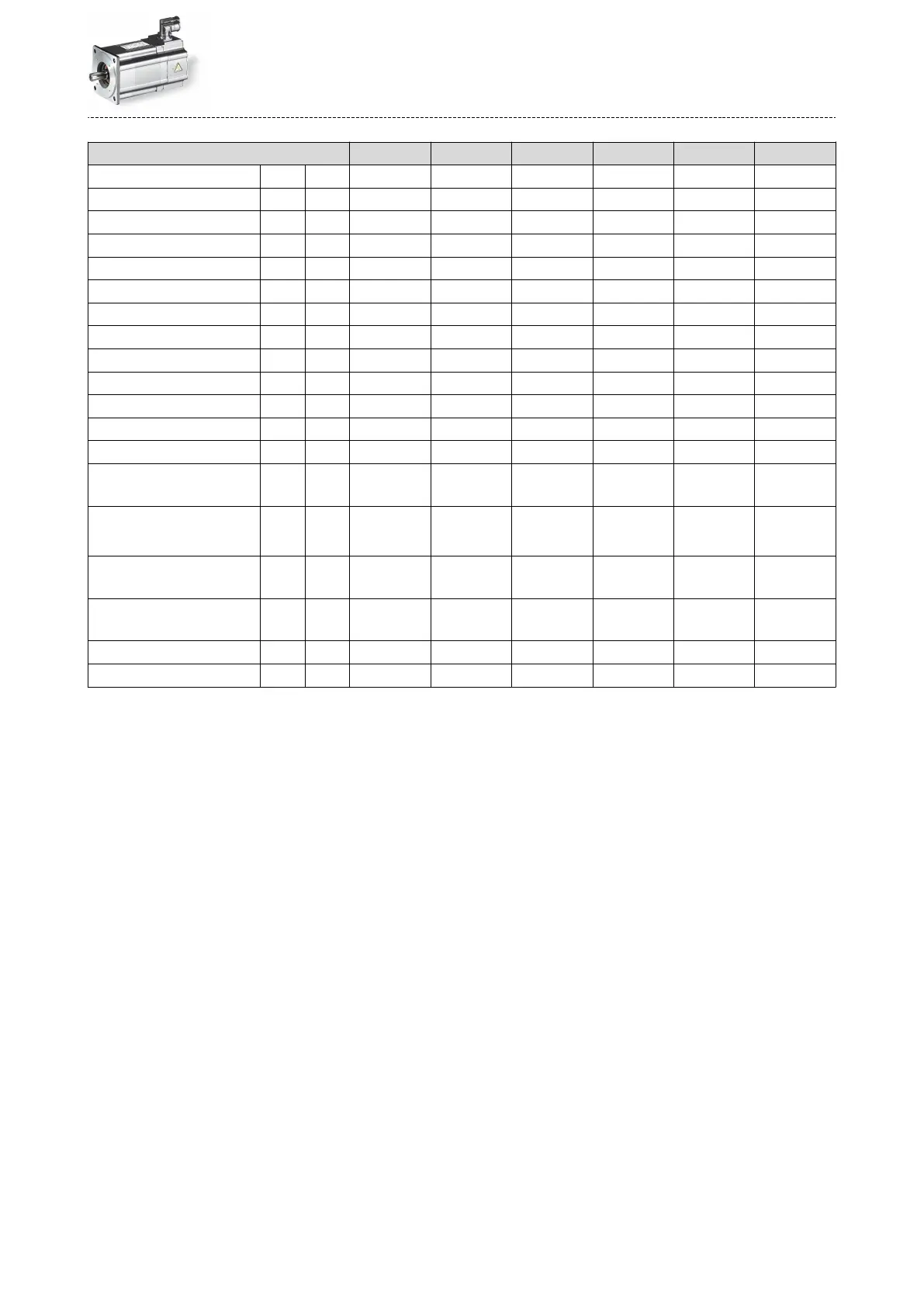

Lenze MCS 06I41 - 400 V Forced-Ventilated Motor Data (Part 2)

Motor MCS 14D30- MCS 14D14- MCS 14H28- MCS 14H12- MCS 14L30- MCS 14L14-
Standsll torque M
0
Nm 12.5 12.5 25.5 25.5 34.5 34.5
Rated torque M
rated
Nm 10.5 12.0 20.5 23.5 25.5 30.5
Max. torque M
max
Nm 29.0 29.0 54.8 54.8 77.1 77.1
Rated speed n
rated
rpm 3000 1350 2775 1200 3000 1350
Max. speed n
max
rpm 6000 6000 6000 6000 6000 6000
Rated power P
rated
kW 3.3 1.7 6 3 8 4.3
Standsll current I
0
A 11.4 5.70 18.4 9.30 26.7 13.4
Rated current I
rated
A 9.70 5.40 15.0 8.30 20.8 11.8
Max. current I
max
A 33.0 16.5 51.5 25.8 74.5 37.3
Rated voltage V
rated
V 325 345 325 335 310 335
Rated frequency f
rated
Hz 200 90 185 80 200 90
Moment of inera J kgcm² 8.10 8.10 14.2 14.2 23.4 23.4
Eciency η 0.92 0.84 0.93 0.87 0.92 0.88
Torque constant Kt
0 150
°C
Nm/A 1.10 2.19 1.39 2.74 1.29 2.57
Voltage constant KE
LL 150
°C
V/
(1000/
min)
62.77 126.13 74.6 149.6 74.5 148.62
Stator terminal resistance R
UV 20
°C
Ω 1 4 0.52 2.08 0.4 1.2
Stator terminal resistance R
UV 150
°C
Ω 1.507 6.028 0.784 3.135 0.603 1.808
Stator inductance L mH 12.5 49.8 8.53 34.1 5.51 22.0
Weight m kg 15.2 15.2 20.2 20.2 24.7 24.7
