Leutert 50 - The Indicator

Friedrich Leutert GmbH & Co. KG 7
Engine Indicators Type 50 and Type 30 - Operating Instructions

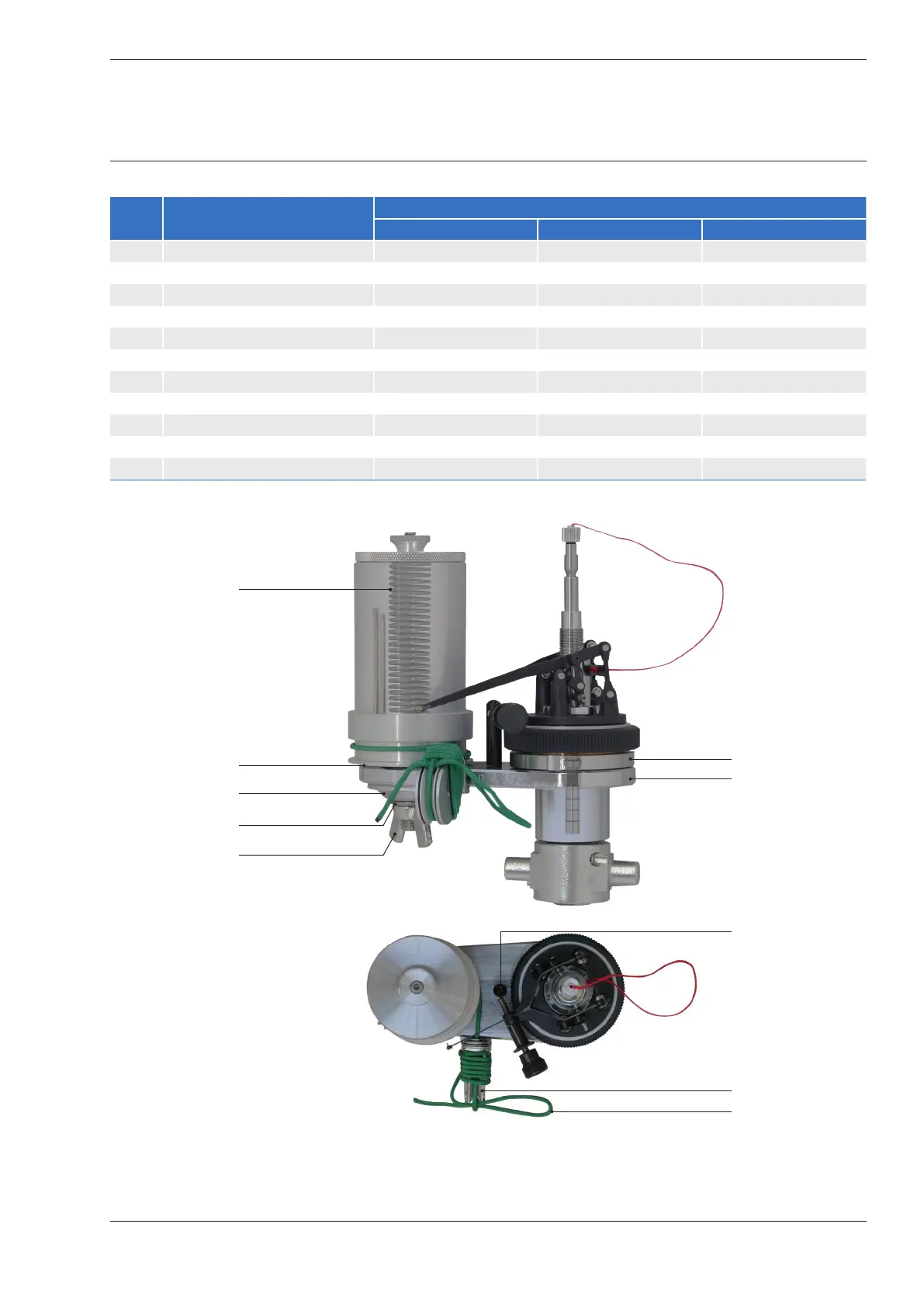

2.1 The Indicator
Item Description
Part-No.
Type 50 Piston 1/10 Type 50 Piston 1/5 Type 30
*)
Piston 1/5
2 Indicator 4656.11.00000 4663.11.00000 4611.11.00000
3 Slotted nut 4651.11.03002 4651.11.03002 4 611.11.030 02
4 Stop screw 4651.11.03003 4651.11.03003 N.A.
5 Stop column 4651.11.03004 4651.11.03004 4 611.11.030 03
6 Drum support 4651.11.03005 4651.11.03005 4 611.11.030 0 4
7 Wing nut MUTTERM10.05300 MUTTERM10.05300 MUTTERM10.05300
8 Nut M10 MUTTERM10.05200 MUTTERM10.05200 MUTTERM10.05200
9 Washer 10,5 USCHEID10.07000 USCHEID10.07000 USCHEID10.07000
41 Drum spring 4651.11.01003 4651.11.01003 4 611.11.010 02
47 Guide roll 4661.11.02000 4661.11.02000 4 611.11.020 0 0
48 Indicator cord 4651.98.00004 4651.98.00004 4651.98.00004
*)
Discontinued product. No availability of spare parts. Availability of complete units while stock last.
