Mounting
Leuze electronic MLC 530 49

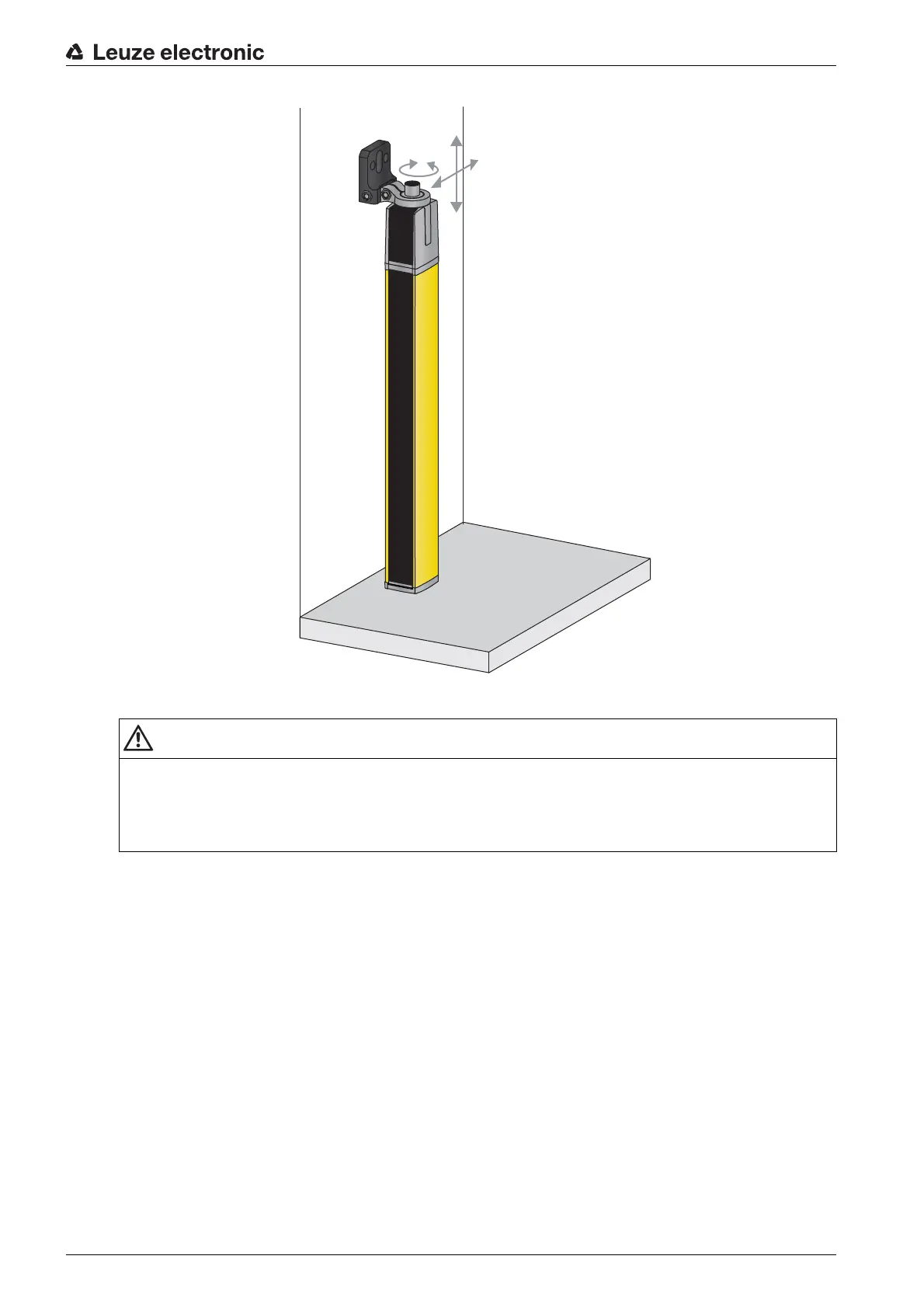

Figure 6.13: Mounting directly on the machine table
6.4 Mounting accessories
6.4.1 AC-SCM8 sensor connection module
The AC-SCM8 and AC-SCM8-BT sensor connection modules are used for the local connection of sensors
as well as controls and indicators near the receiver. While AC-SCM8 is the connection module in the stan-
dard housing which is mounted directly on the machine via the M4 screws, the AC-SCM8-BT also contains
a mounting plate which opens up further mounting options:
WARNING
Impairment of the protective function due to reflections on the machine table!
 Make sure that reflections on the machine table are prevented reliably.
 After mounting and every day after that, check the detection capability of the safety sensor in the entire
protective field using a test rod (see figure 9.1).
