Device description
Leuze electronic MLC 530 12
Device synchronization
The synchronization of receiver and transmitter for creating a functioning protective field is done optically,
i.e. without cables, via two specially coded synchronization beams. A cycle (i.e. a pass from the first to the
last beam) is called a scan (see chapter 4.5 „Scan mode“). The length of a scan determines the length of
the response time and affects the calculation of the safety distance (see chapter 6.1.1).
a Optically active area, housed in yellow
b Synchronization beams

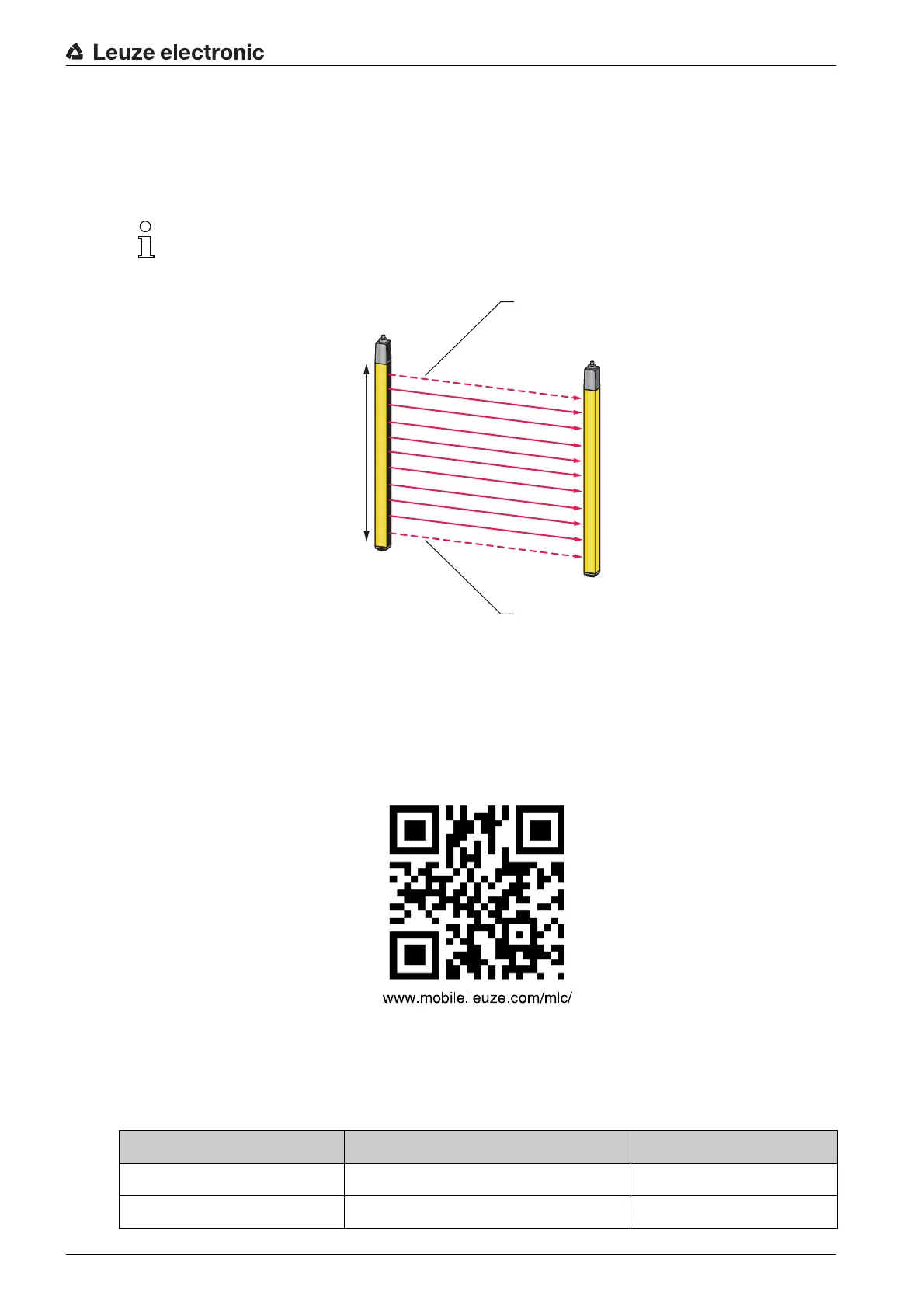

Figure 3.1: Transmitter-receiver system
QR code
A QR code as well as the corresponding web address are located on the safety sensor (see figure 3.2). At
the web address, you will find device information and error messages (see chapter 11.3 „Error messages
7-segment display“) after scanning the QR code with a mobile end device or after entering the web
address. When using mobile end devices, mobile service charges can accrue.
Figure 3.2: QR code with corresponding web address (URL) on the safety sensor
3.2 Connection technology
The transmitter and receiver feature an M12 connector as an interface to the machine control with the
following number of pins:
For the correct synchronization and function of the safety sensor, at least one of the two synchro-
nization beams must be free during synchronization and operation.
a
b
b
Device version Device type Device plug
MLC 500 Transmitter 5-pin
MLC 530 Extended receiver 8-pin
