Mounting
Leuze electronic MLC 530 48
6.3.3 Fastening via BT-NC60 sliding blocks
By default, transmitter and receiver are delivered with 2 BT-NC60 sliding blocks each in the side slot. This
makes fastening the safety sensor to the machine or system to be safeguarded easy via four M6 screws.
Sliding in the direction of slot to set the height is possible, but turning, tilting and pitching is not.

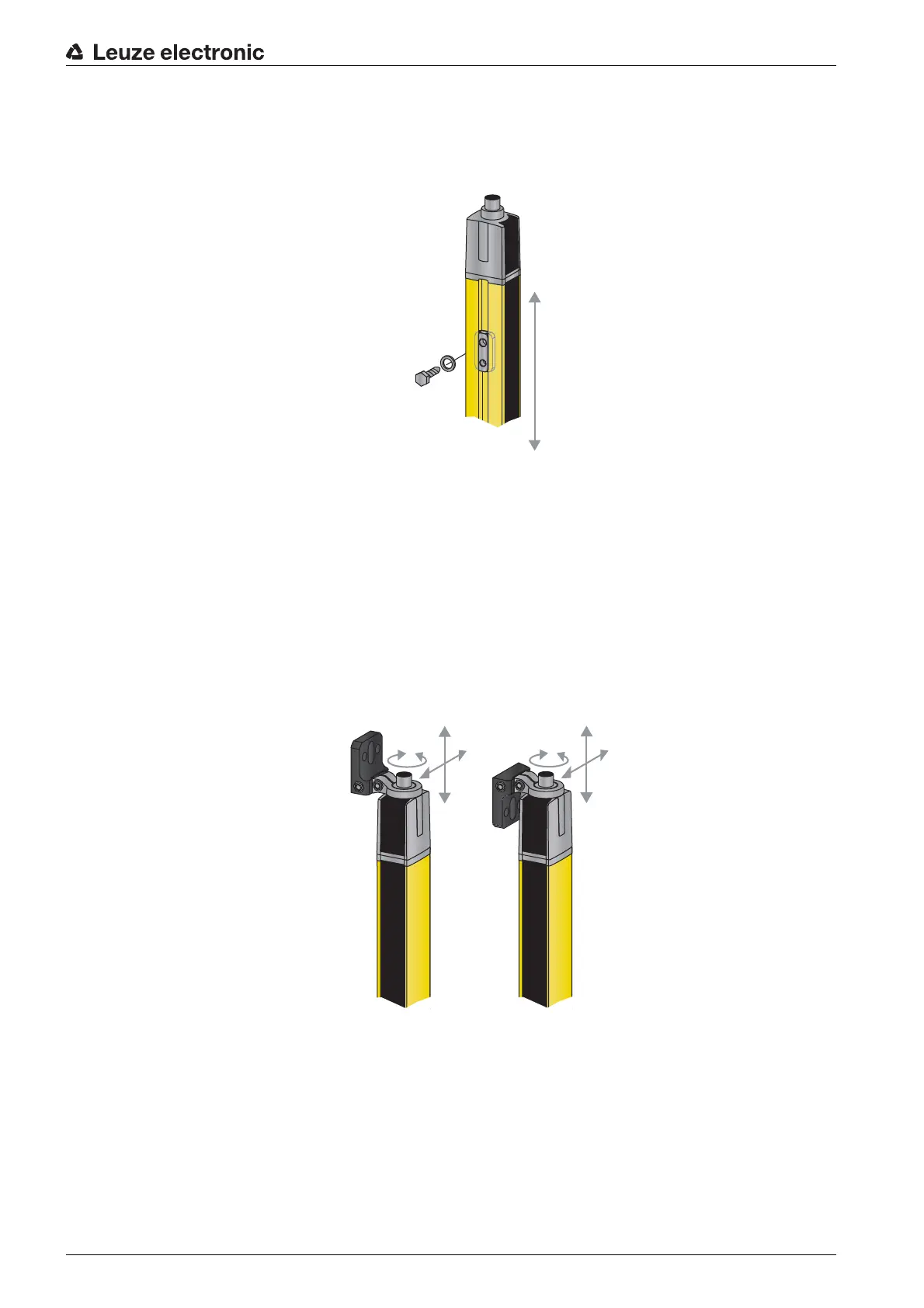

Figure 6.11: Mounting via BT-NC60 sliding blocks
6.3.4 Fastening with BT-R swivel mount
With the swivel mount (see table 15.5), sold separately, the safety sensor can be aligned as follows:
• Sliding through the vertical threaded holes in the wall plate of the swivel mount
• Turning by 360° around the longitudinal axis by fixing on the screw-on cone
• Pitching in the direction of the protective field with horizontal threaded holes in the wall mounting
• Tilting around main axis
The wall mounting through threaded holes makes it possible to lift the mounting bracket after the screws
have been loosened over the connection cap. Therefore, the mounting brackets do not need to be
removed from the wall when exchanging the device. Loosening the screws is sufficient.
Figure 6.12: Mounting via BT-R swivel mount
6.3.5 One-sided mounting on the machine table
The safety sensor can be mounted directly on the machine table via an M5 screw on the blind hole in the
end cap. On the other end, a BT-R swivel mount can be used, for example, so that turning movements for
alignment are possible despite the fact that the sensor is mounted on one side. The full resolution of the
safety sensor is thus preserved on all points of the protective field down to the machine table.
