2
Systems overview
6
A
2020-07-17
S023569

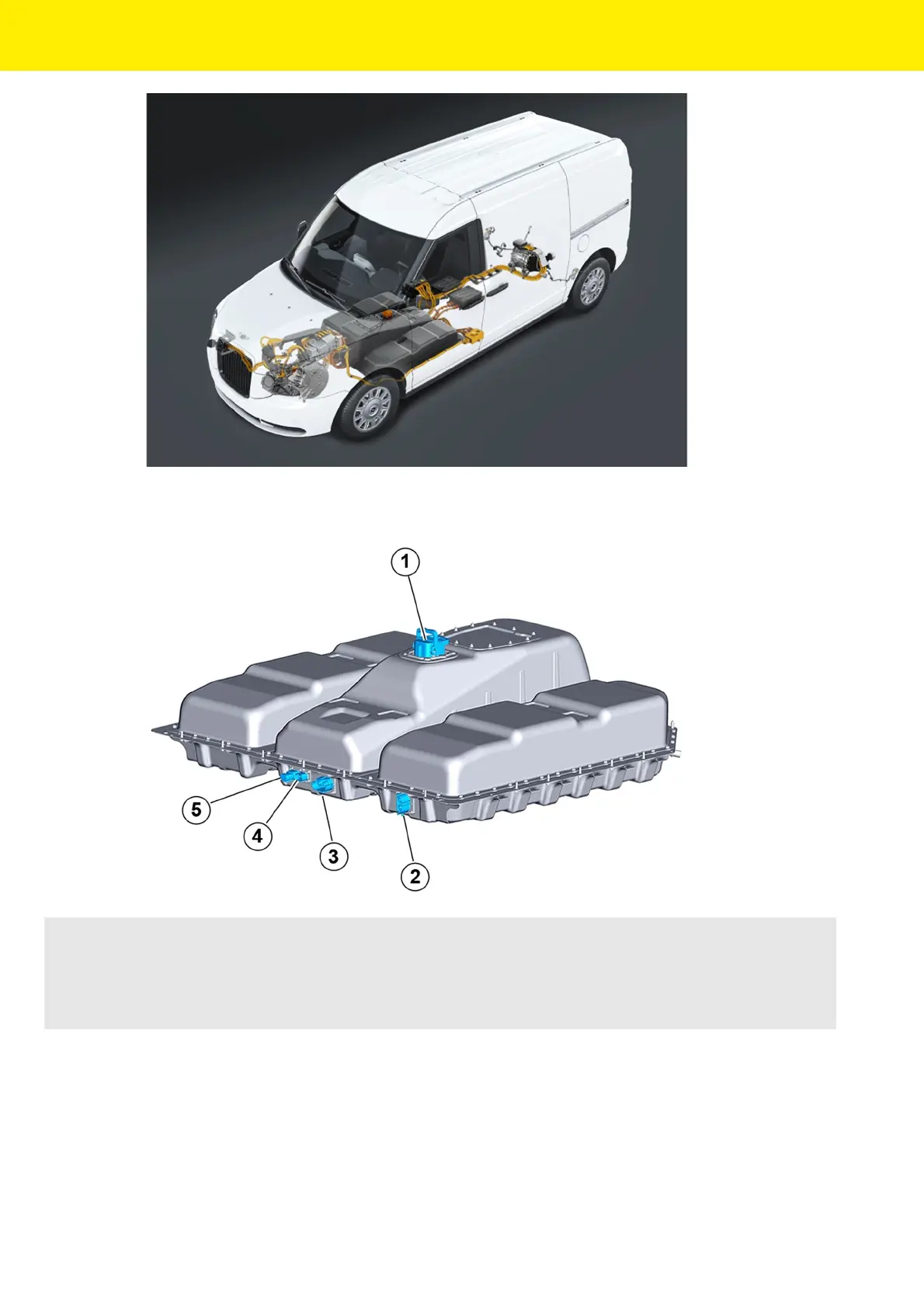

High Voltage Battery Connections
1 High Voltage Battery safety switch (MSD)
2 High Voltage connection to the CHAdeMO point (optional)
3 High Voltage connection to the ERAD inverter
4 High Voltage connection to the on board charger 2 (optional)
5 High Voltage connection to the on board charger
