Systems overview
2
S023569 A
2020-07-17
5

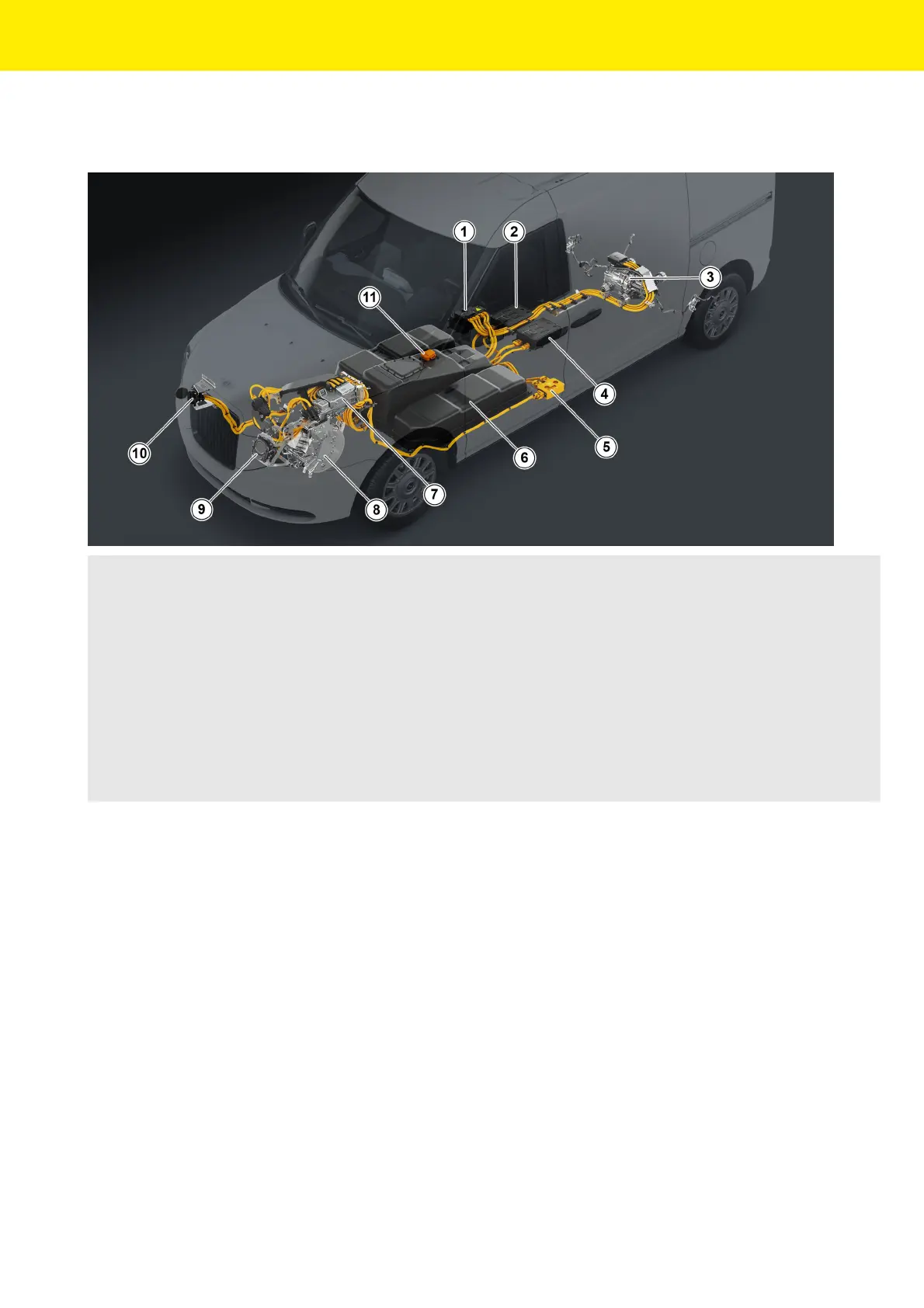

High Voltage components
1 Inverter - Electric Rear Axle Drive (ERAD)
2 On Board Charger (Primary)
3 Electric Rear Axle Drive (ERAD)
4 On Board Charger (Secondary) (Optional)
5 Junction box - combined charging system
6 High Voltage (HV) Battery
7 Combined Inverter
8 Crankshaft Integrated Starter Generator (CISG)
9 Combined Charging System (CCS) charge point
10 CHAdeMo charge point (optional)
11 Switch - Safety High Voltage Battery
High Voltage battery
The high voltage cables that connect all of the high voltage components are shown in the next
two images. The high voltage cables on the vehicle are orange.
The vehicle is fitted with a 400 volt lithium-ion battery. The high voltage battery attaches to the
vehicle, below the floor and behind the front subframe. Do not break the high voltage battery
when you lift from under the vehicle, or when you use rescue tools.
