Systems overview
2
S023569 A
2020-07-17
7

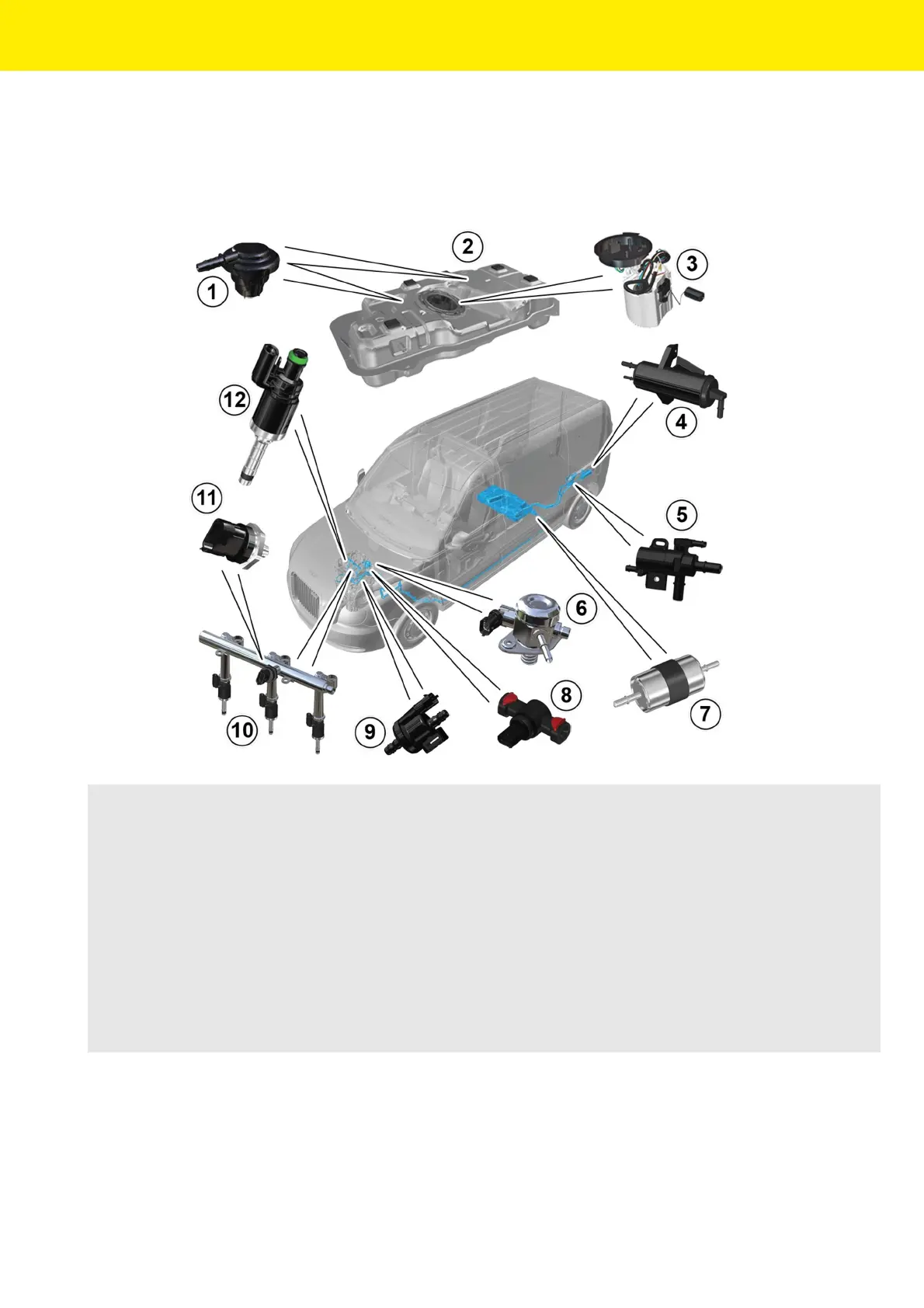

Fuel system components
Although the vehicle is a High Voltage electric vehicle, it uses a petrol engine to charge the High
Voltage Battery. All precautions taken with a petrol powered vehicle must be followed.
1 Roll over valve
2 Fuel tank
3 Fuel delivery module
4 Charcoal canister
5 Fuel tank isolation valve
6 High pressure fuel pump
7 Fuel filter
8 Fuel line pressure sensor
9 Canister purge solenoid
10 Fuel rail
11 High pressure fuel sensor
12 Fuel injector (x3)
Airbag system
The vehicle is equipped with an airbag system consisting of:
– Driver's airbag.
– Passenger's airbag.
