LevelOne FCS-3072 - Page 17

Hardware Manual
17

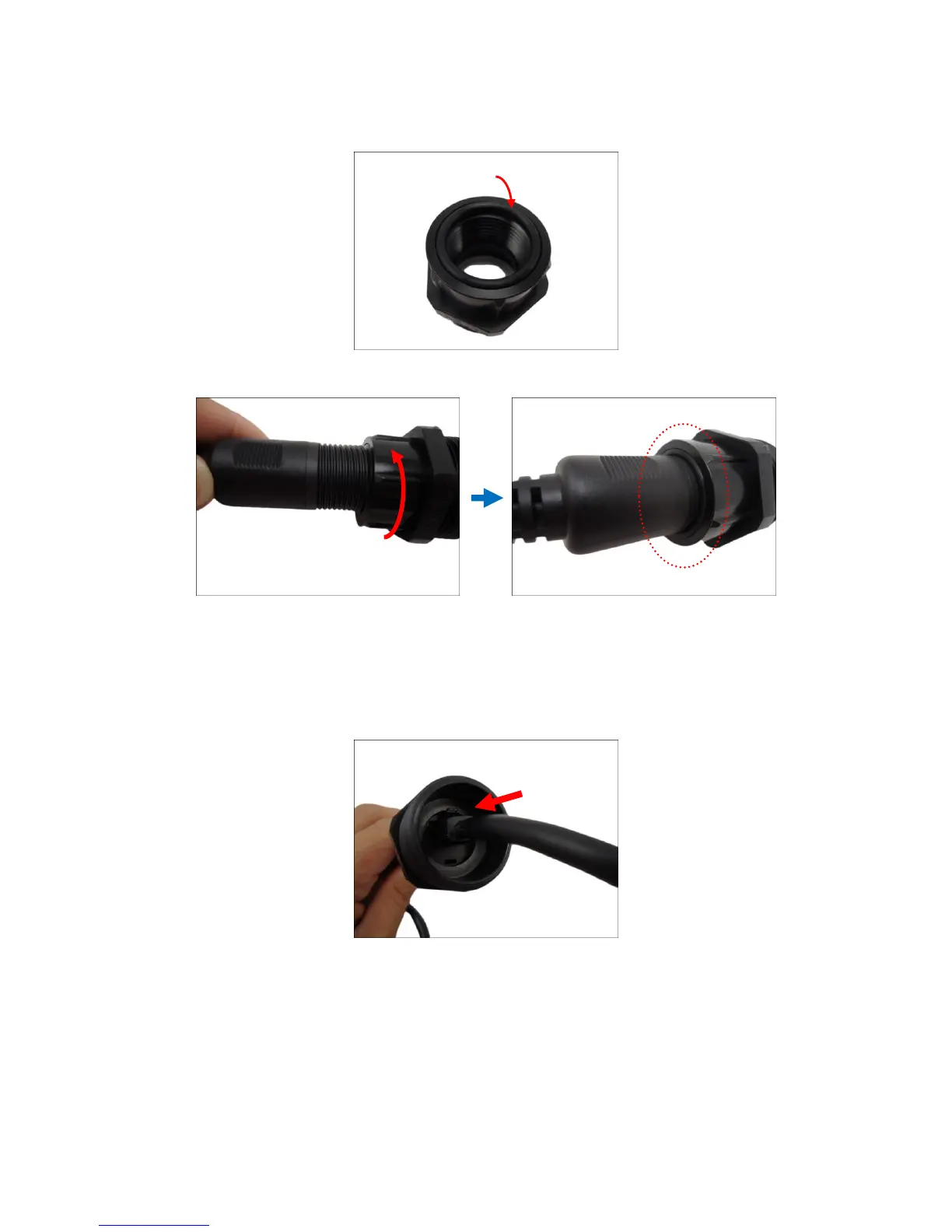

4. Make sure the bundled rubber ring is completely aligned on the gap on the gland body.
5. Attach the gland body to the Ethernet port of the camera.
IMPORTANT!
Make sure the rubber ring is completely aligned and flat on the gland body to avoid
possible water leakage.
6. Connect the RJ-45 connector of the network cable to the Ethernet port of the camera.
