LevelOne FCS-3072 - Page 25

Hardware Manual
25

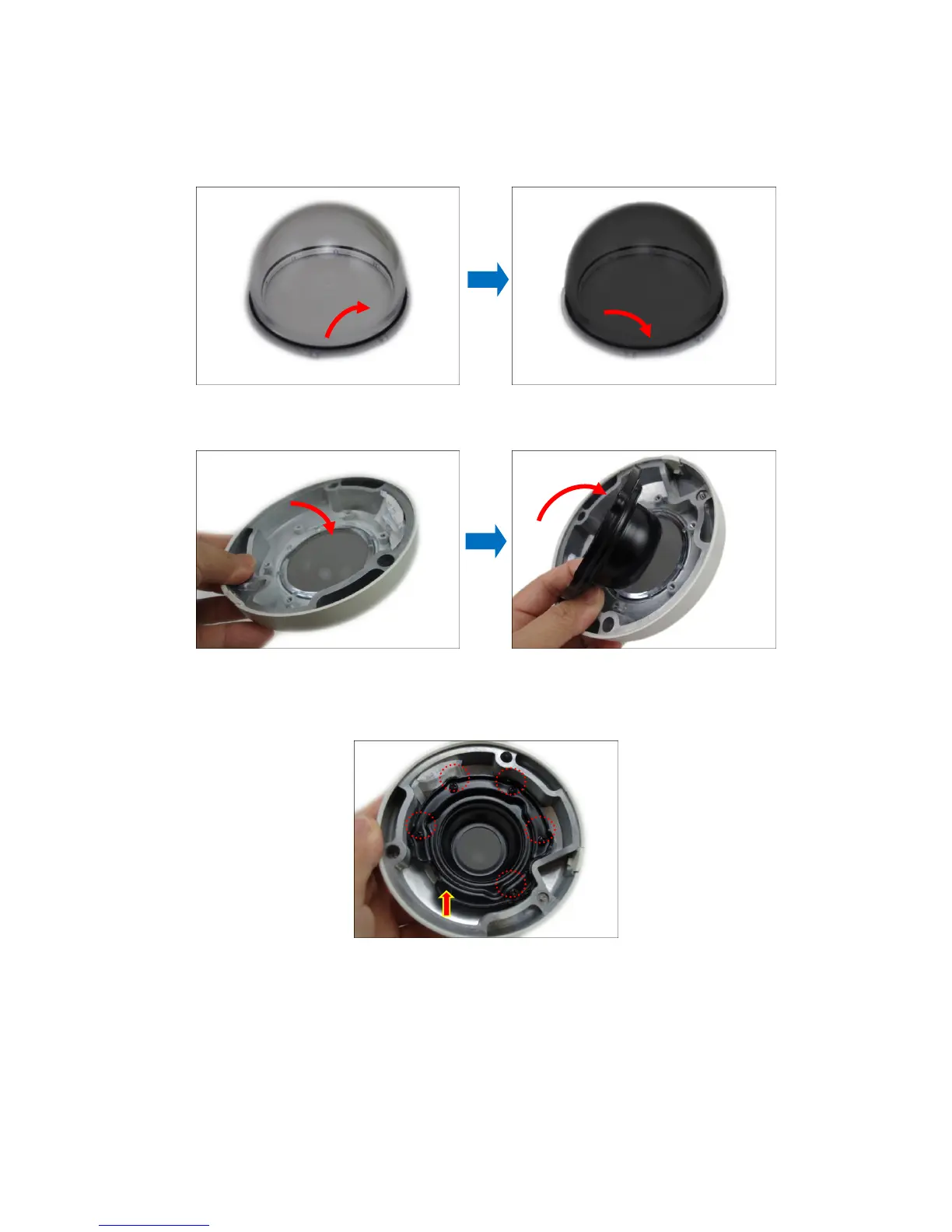

4. Remove the black rubber from the transparent dome cover and place the black rubber to the
replacement dome cover.
5. Install the replacement dome cover and then the bracket.
6. Align the screw holes and secure the five (5) screws first. Take note of the screw hole which
must not be screwed at this point.
