LevelOne WAP-8121 - AP Installation; Connecting AP with PC

4

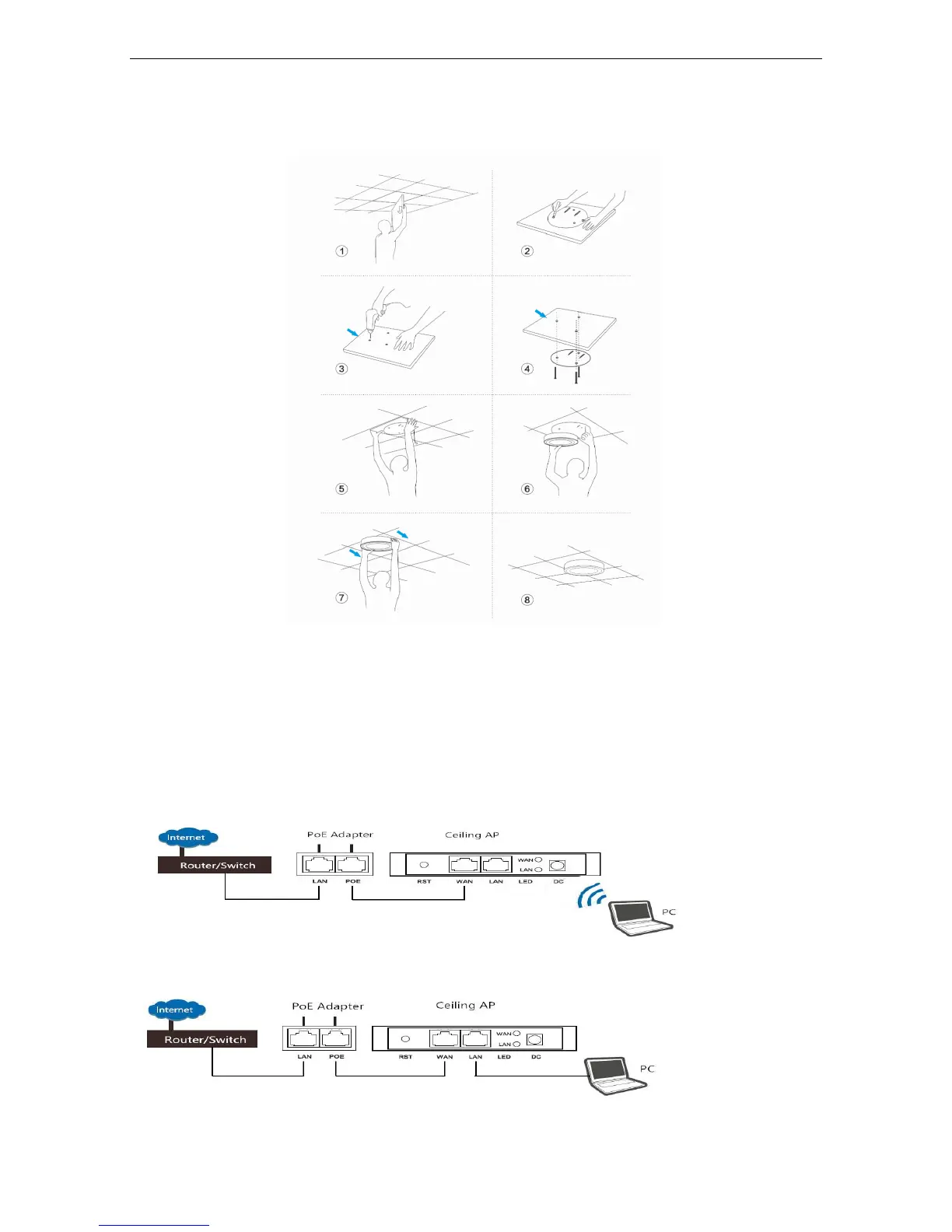

1.4 AP Installation:
P3 AP installation
1.5 Connecting AP with PC
Use can connect the PC with wireless AP by Wireless SSID and LAN cable:
The diagram of wireless connection showed as follow:
Pls note: the default 2.4GSSID is LevelOne 2.4G, default 5G SSID is LevelOne 5 G, S S ID’s
password is 66666666
The diagram of LAN cable connection showed as follow:
