LevelOne WAP-8121 - Page 9

9

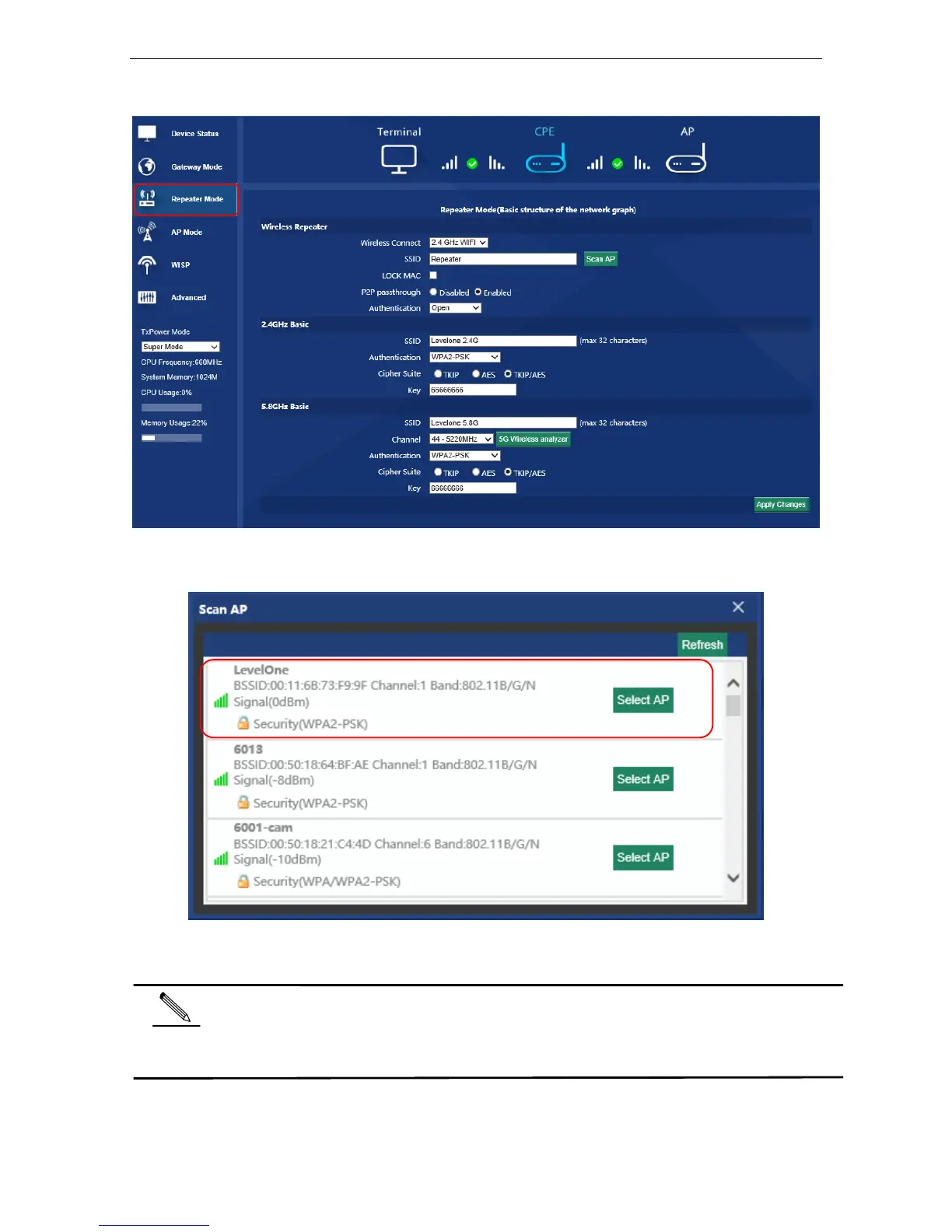

P9 Repeater Mode
B. Select the AP’s SSID want to bridge, take LevelOne for example.
P10 Select AP
C. input the SSID/password for 2.4GHz or 5.8GHz WiFi which will be broadcast. Then “apply changes” to finish.
Instruction
If your computer can’t pop up this window, pls check your IE explorer and see whether it is
blocked already. And if this Wireless AP can’t scan any SSID, pls check if there are 5G
wireless signal.
