LevelOne WAP-8123 - Hardware and Operation Mode Instruction

-1-
l Hardware and Operation mode Instruction
LED i ndicator:

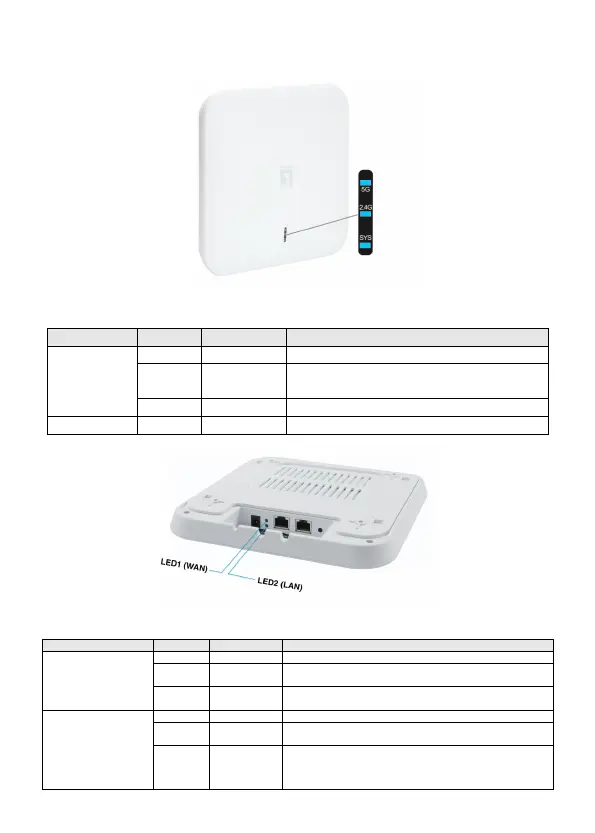

▲ Front View of the WAP-8123
▲ Rear View of the WAP-8123
LED
Color
Status
Description
LAN
(10/100/1000Mbps
RJ45 Ports)
Green
Fast Blinking
The port is transmitting/receiving packets
Green
Solow
Blinking
On LAN is connected
--
Off
The port has no active network cable connected, or it is not
established a link to connected device.
WAN
(10/100/1000Mbps
RJ45 Ports)
Green
Fast Blinking
The port is transmitting/receiving packets
Green
Solow
Blinking
On WAN is connected
--
Off
The port has no active network cable connected, or it is not
established a link to connected device.
LED indicator
Color
Status
Description
SYS
Blue
On
Device Startup state
Blue
Off
Device Startup state is completed, SYS goes out and the
WIFI blue light flashes.
Blue
Fast Blinking
Reset to Defaults
2.4G / 5G
Blue
Blinking
WIFI SSID Broadcast ON
