- 8 -
Set-Up
Assembling the Base Plate
1. Remove all parts from the packaging and make
sure all contents are included.

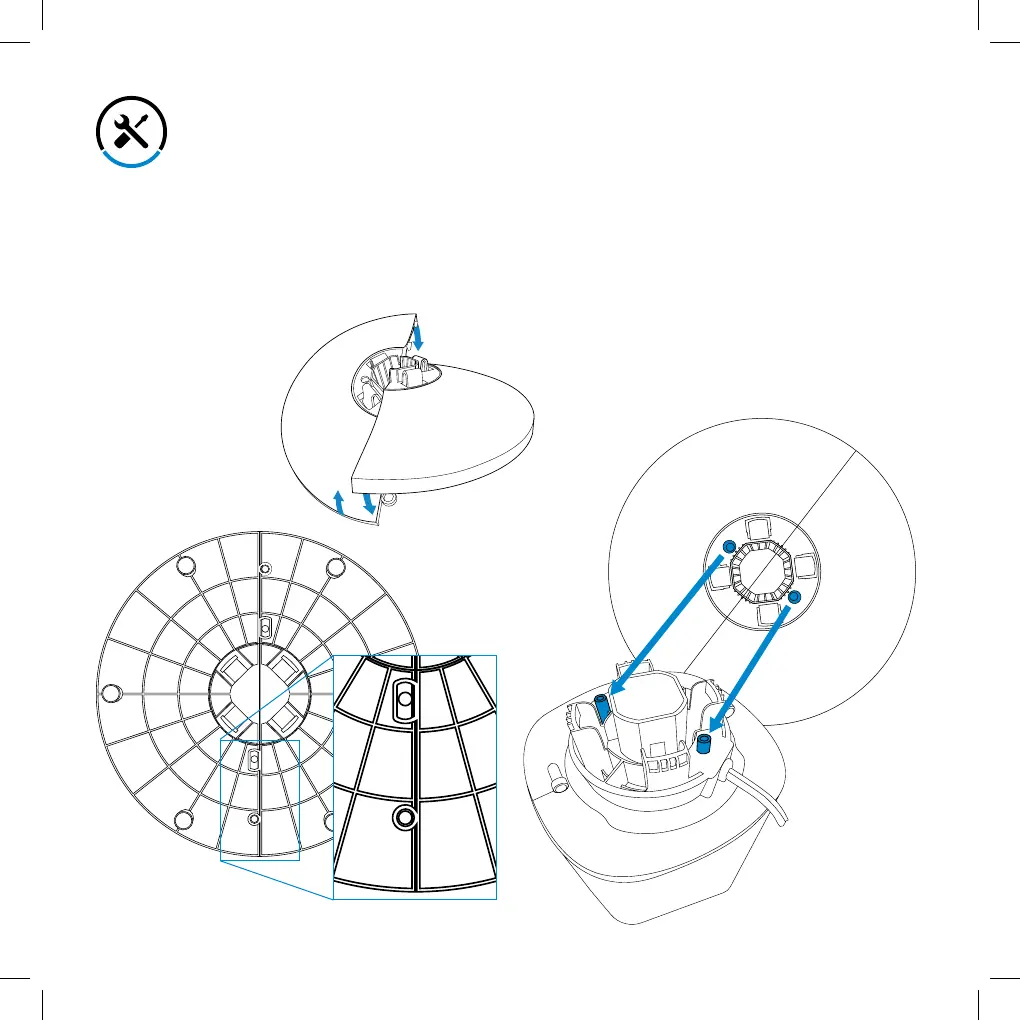

2. Assemble the base plate by interlocking both
parts as shown below. [Figures 1.1 & 1.2]
3. Align the two pegs on the oscillating base with
their respective holes on the base plate to
assemble the tower fan. Gently press on the
base plate, making sure all four tabs on the base
plate snap into place. [Figure 1.3]
NOTE: For easier installation, the fan can be laid on
its side on a flat surface while attaching the base
plate to the fan.
4. Once the fan is completely assembled, stand the
fan up on the base and plug it into an electrical
outlet.
Bottom of base plate
Top of base plate
Bottom of oscillating base
Figure 1.1
Figure 1.2
Figure 1.3
