S900/S2000 windlass ref B10500 iss.1 | 7

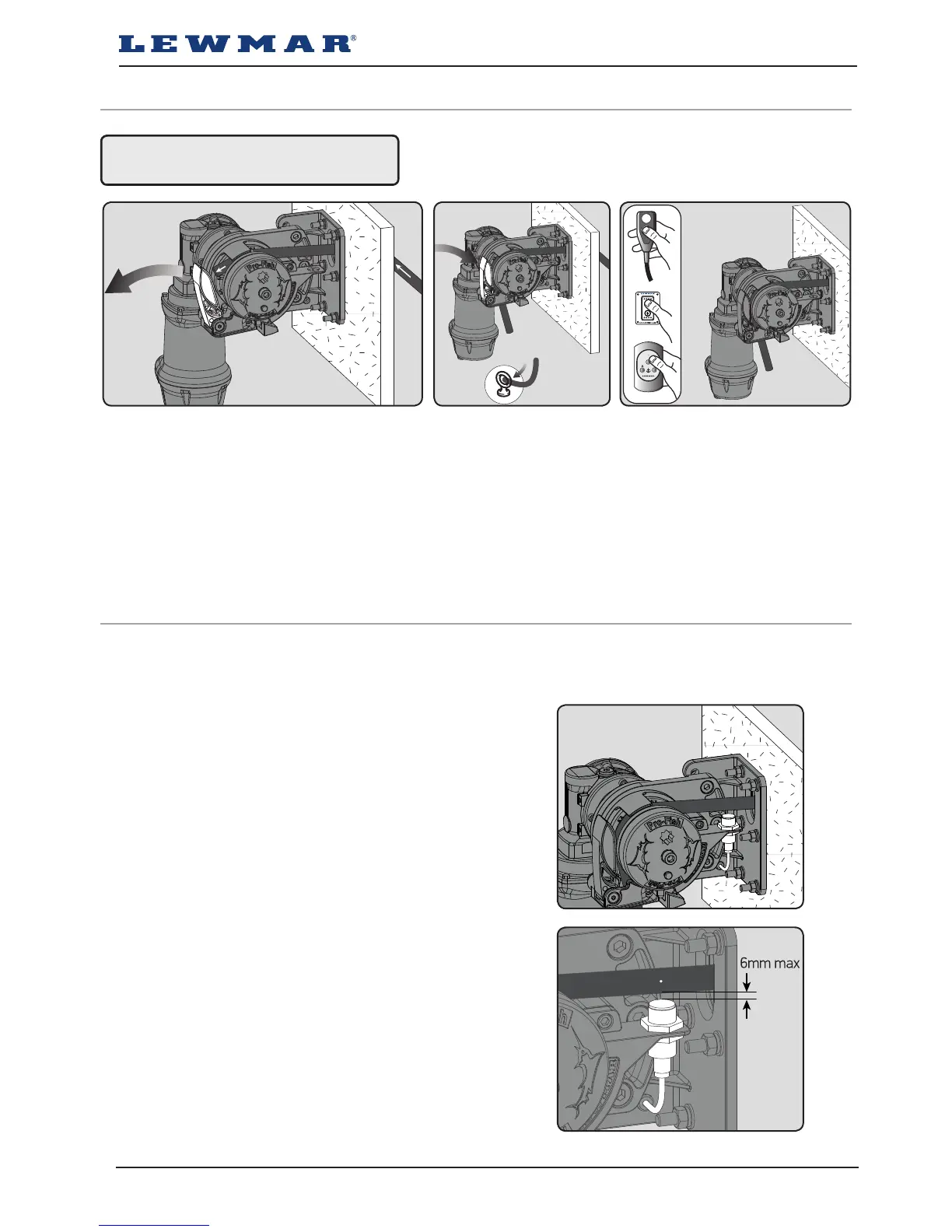

To load the anchor rode:
1. Pass it through the bulkead roller unit
• Pull back the control arm
• Pass the rode around the gypsy and down through the bottom channel of the rope guide and into the locker
2. Gently release the control arm to keep the rode engaged in the gypsy.
• Secure end of rode to a suitable strong point.
3. The remainder of the rode can then be powered in.
1. Fit the sensor to the bracket
• Feed the sensor cable through the grommet on the
housing
• Secure so that it is clear of any moving parts and
falling anchor rode.
4.5 Loading the anchor rode
4.6 Fitting the auto-stop sensor and brass coil
WARNING! Isolate (turn off) the
windlass using circuit breaker / isolator.
The auto-stop function enables the windlass to stop automatically before the anchor reaches its final stowage
position. Allowing careful & controlled anchor stowage.
2. With the anchor lowered so it is just below water level,
adjust the height of the sensor so that it is within 6mm
of the anchor rode.
• Mark the rode above the sensor where the wire coil
(provided) will be fitted
3. Stow the anchor and cut power.
• Retrieve the rode where previously marked, ready to
attach the wire coil
