Lewmar TT Series User Manual

Lewmar Thruster 110TT and 140TT 2.0 Manual ref B10417 iss.2 | 13
ITEM
PART NO
110TT
PART NO
140TT2.0
DESCRIPTION
1 582003 581029 Motor Assembly
2 553034 553034 Cover
3
B12526 B12526 Solenoid
559070 559070 Solenoid loom
4 552004 551052 Mounting Saddle
5 552005 551035 Tunnel gasket
6 582001 581001 Hub assembly
7 589451 589151 Propeller and washer
8 589453 589150 Propeller fixing kit
9 589452 589152 Installation fixing kit
10 559107 559018 Drive pin
ITEM PART NO DESCRIPTION
1 589094 Joystick
2
589021 2m Control cable & Connectors
589016 7m Control cable & Connectors
589017 10m Control cable & Connectors
589018 14m Control cable & Connectors
589019 18m Control cable & Connectors
3 589206 Y connector for dual controls
4 589006 Fuse Holder
5 589013 T2 Fuse Holder
6 589012 200A ANL Type Fuse
7 589096 Motor Support Bracket kit
8- Parts list
1
9
4
5
6
8
7
3
2
10
9
1
3
2
10
9
9
4
5
6
7
8
1
4
5
3
2
6 7

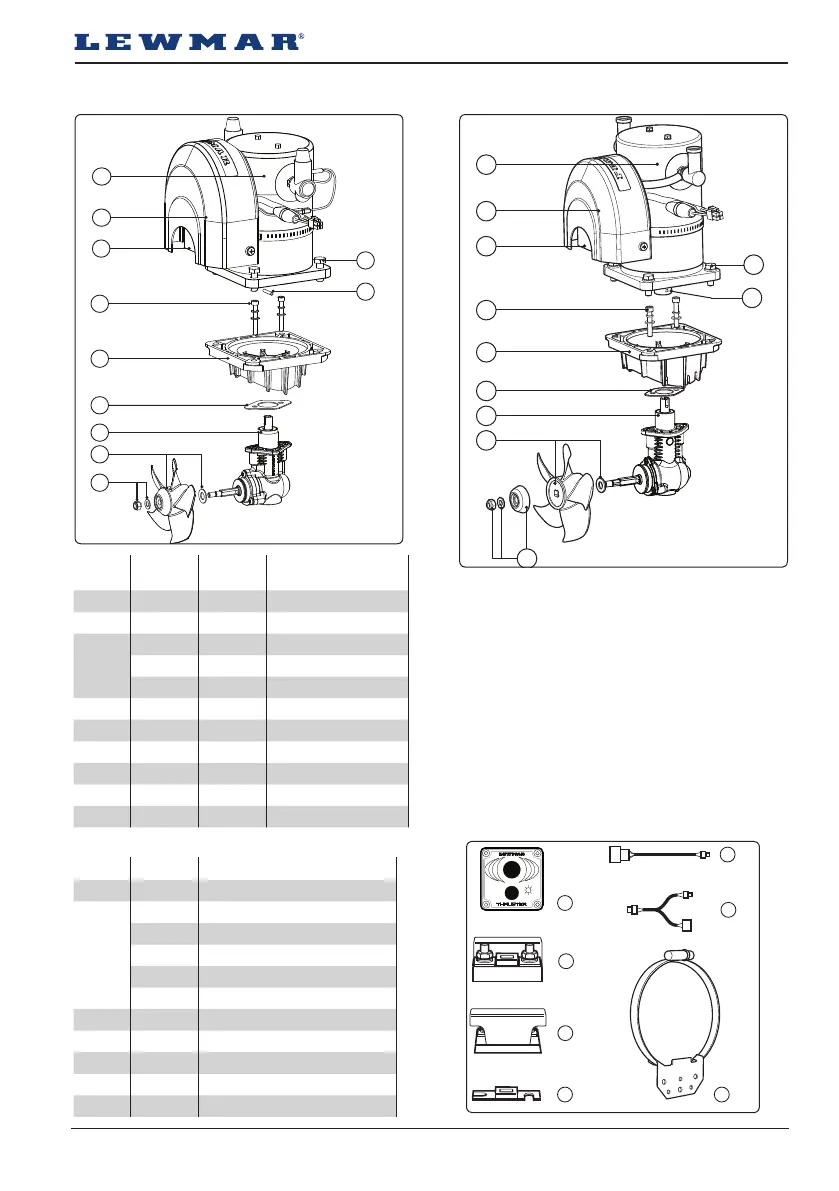

110TT Exploded view
140TT2.0 Exploded view
