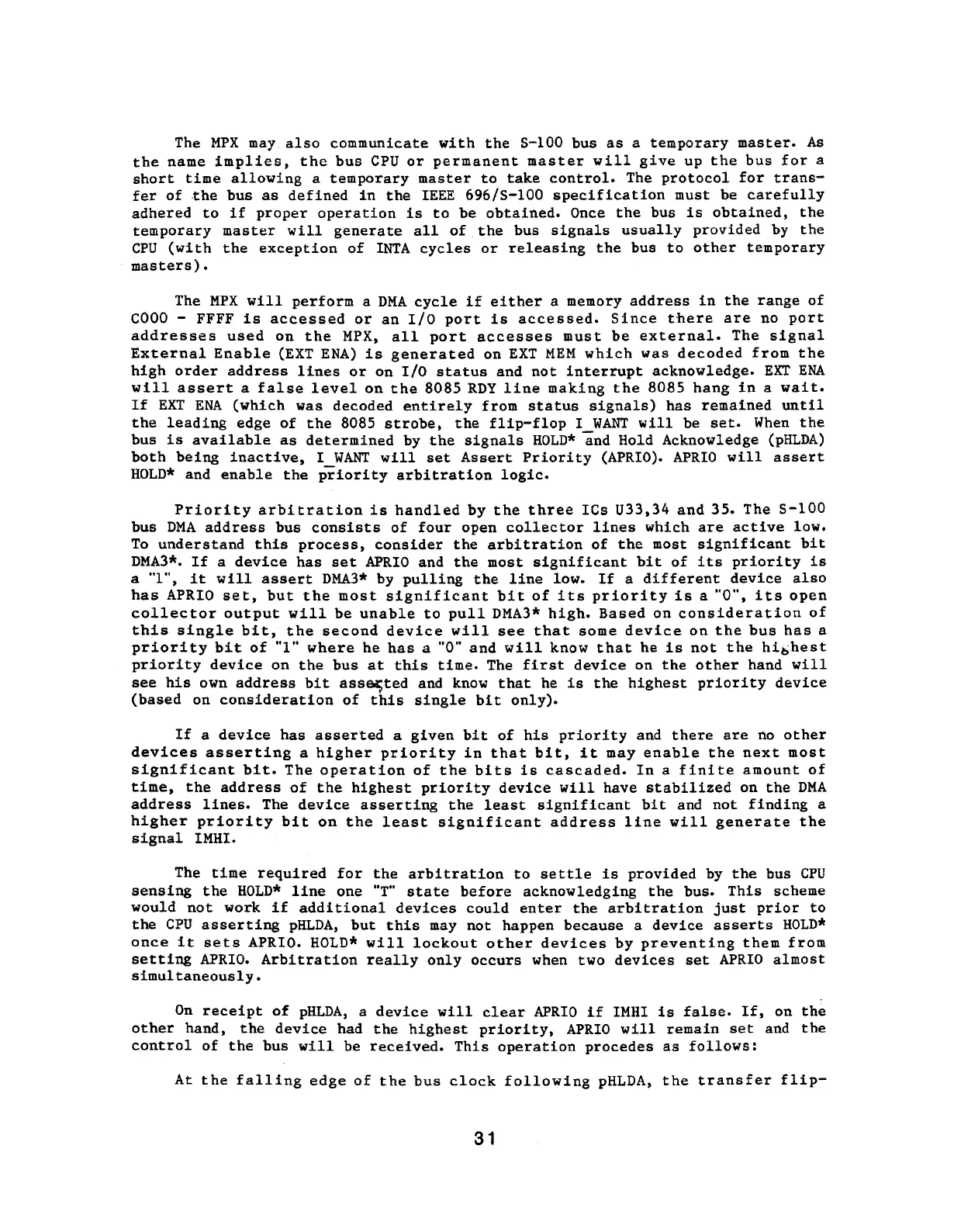

The
MPX
may
also
communicate
with
the
S-100 bus
as
a
temporary
master.
As
the
name
implies,
the
bus
CPU
or
permanent
master
will
give
up
the
bus
for
a
short
time
allowing
a
temporary
master
to
take
control.
The
protocol
for
trans-
fer
of
the
bus
as
defined
in
the
IEEE
696/S-100
specification
must be
carefully
adhered
to
if
proper
operation
is
to
be
obtained.
Once
the
bus
is
obtained,
the
temporary
master
will
generate
all
of
the
bus
signals
usually
provided
by
the
CPU
(with
the
exception
of
INTA
cycles
or
releasing
the
bus
to
other
temporary
masters).
The
MPX
will
perform
a
DMA
cycle
if
either
a memory
address
in
the
range
of
COOO
- FFFF
is
accessed
or
an
I/O
port
is
accessed.
Since
there
are
no
port
addresses
used
on
the
MPX,
all
port
accesses
must
be
external.
The
signal
External
Enable
(EXT
ENA)
is
generated
on
EXT
MEM
which
was
decoded
from
the
high
order
address
lines
or
on
I/O
status
and
not
interrupt
acknowledge.
EXT
ENA
will
assert
a
false
level
on
the
8085
RDY
line
making
the
8085
hang
in
a
wait.
If
EXT
ENA
(which
was decoded
entirely
from
status
signals)
has
remained
until
the
leading
edge
of
the
8085
strobe,
the
flip-flop
I
WANT
will
be
set.
When
the
bus
is
available
as
determined
by
the
signals
HOLD*
and
Hold Acknowledge
(pHLDA)
both
being
inactive,
I
WANT
will
set
Assert
Priority
(APRIO).
APRIO
will
assert
HOLD*
and
enable
the
priority
arbitration
logic.
Priority
arbitration
is
handled
by
the
three
ICs
U33,34
and
35.
The
5-100
bus
DMA
address
bus
consists
of
four
open
collector
lines
which
are
active
low.
To
understand
this
process,
consider
the
arbitration
of
the
most
significant
bit
DMA3*.
If
a
device
has
set
APRIO
and
the
most
significant
bit
of
its
priority
is
a "1",
it
will
assert
DMA3*
by
pulling
the
line
low.
If
a
different
device
also
has
APRIO
set,
but
the
most
significant
bit
of
its
priority
is
a
"0",
its
open
collector
output
will
be
unable
to
pull
DMA3*
high.
Based
on
consideration
of
this
single
bit,
the
second
device
will
see
that
some
device
on
the
bus
has
a
priority
bit
of
"I"
where
he
has
a "0"
and
will
know
that
he
is
not
the
hibhest
priority
device
on
the
bus
at
this
time.
The
first
device
on
the
other
hand
will
see
his
own
address
bit
ass~ted
and know
that
he
is
the
highest
priority
device
(based
on
consideration
of
this
single
bit
only).
If
a
device
has
asserted
a
given
bit
of
his
priority
and
there
are
no
other
devices
asserting
a
higher
priority
in
that
bit,
it
may
enable
the
next
most
significant
bit.
The
operation
of
the
bits
is
cascaded.
In
a
finite
amount
of
time,
the
address
of
the
highest
priority
device
will
have
stabilized
on
the
DMA
address
lines.
The
device
asserting
the
least
significant
bit
and
not
finding
a
higher
priority
bit
on
the
least
significant
address
line
will
generate
the
signal
IMHI.
The
time
required
for
the
arbitration
to
settle
is
provided
by
the
bus
CPU
sensing
the
HOLD*
line
one
"T"
state
before
acknowledging
the
bus.
This
scheme
would
not
work
if
additional
devices
could
enter
the
arbitration
just
prior
to
the
CPU
asserting
pHLDA,
but
this
may
not
happen
because
a
device
asserts
HOLD*
once
it
sets
APRIO.
HOLD*
will
lockout
other
devices
by
preventing
them
from
setting
APRIO.
Arbitration
really
only
occurs
when two
devices
set
APRIO
almost
simultaneously.
On
receipt
of
pHLDA,
a
device
will
clear
APRIO
if
IMHI
is
false.
If,
on
the
other
hand,
the
device
had
the
highest
priority,
APRIO
will
remain
set
and
the
control
of
the
bus
will
be
received.
This
operation
procedes
as
follows:
At
the
falling
edge
of
the
bus
clock
following
pHLDA,
the
transfer
flip-
31
