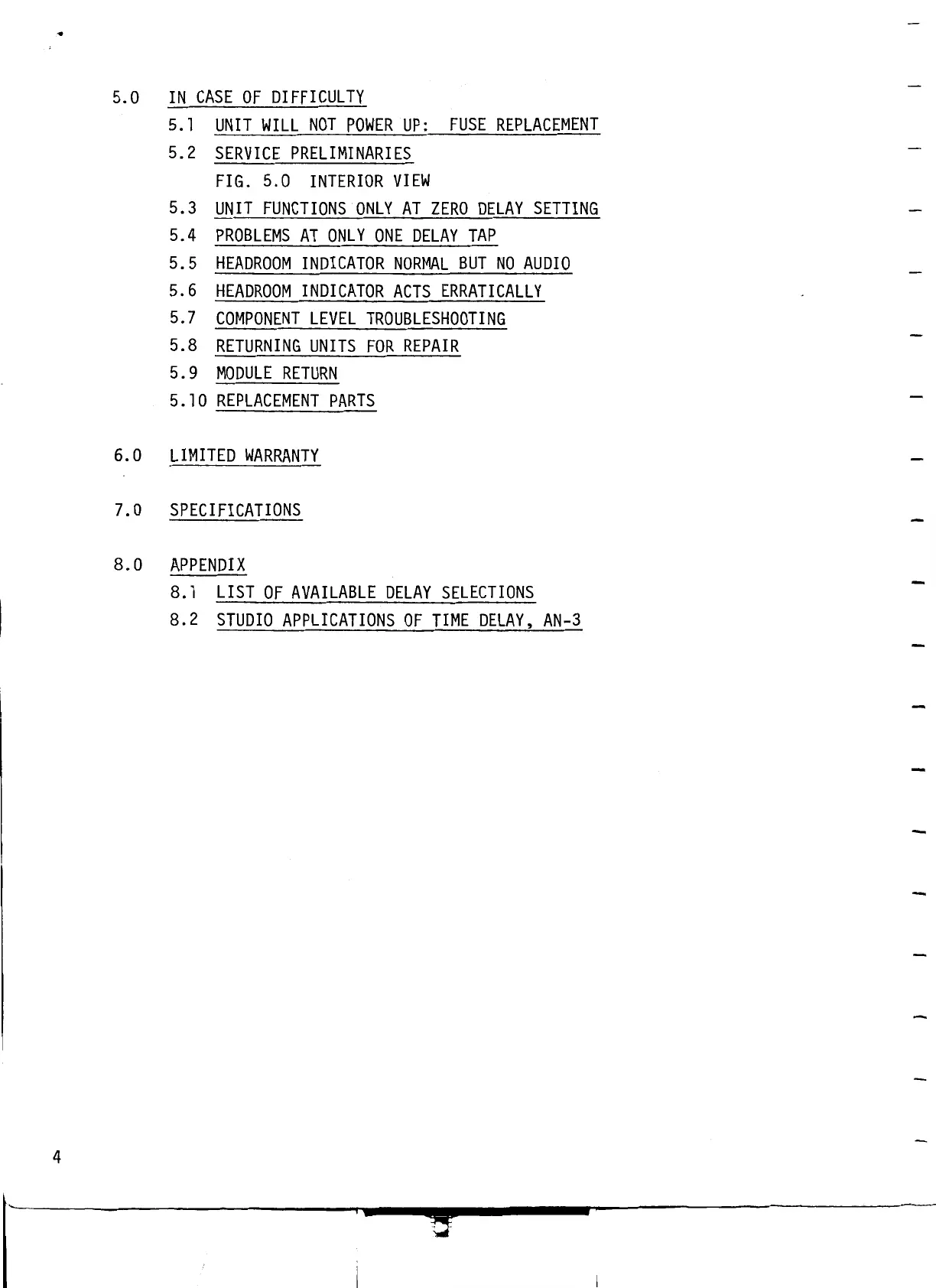

5.0
IN
CASE
OF
DIFFICULTY
5.1
UNIT
WILL
NOT
POWER
UP:
FUSE
REPLACEMENT
5.2
SERVICE
PRELIMINARIES
FIG.
5.0
INTERIOR
VIEW
5.3
UNIT
FUNCTIONS
ONLY
AT
ZERO
DELAY
SETTING
5.4
PROBLEMS
AT
ONLY
ONE
DELAY
TAP
5.5
HEADROOM
INDICATOR
NORMAL
BUT
NO
AUDIO
5.6
HEADROOM
INDICATOR
ACTS
ERRATICALLY
5.7
COMPONENT
LEVEL
TROUBLESHOOTING
5.8
RETURNING
UNITS
FOR
REPAIR
5.9
MODULE
RETURN
5.10
REPLACEMENT
PARTS
6.0
LIMITED
WARRANTY
7.0
SPECIFICATIONS
8.0
APPENDIX
8.1
LIST
OF
AVAILABLE
DELAY
SELECTIONS
8.2
STUDIO
APPLICATIONS
OF
TIME
DELAY,
AN-3
-
-
4
