Lexicon Prime Time 93 User Manual

•
8

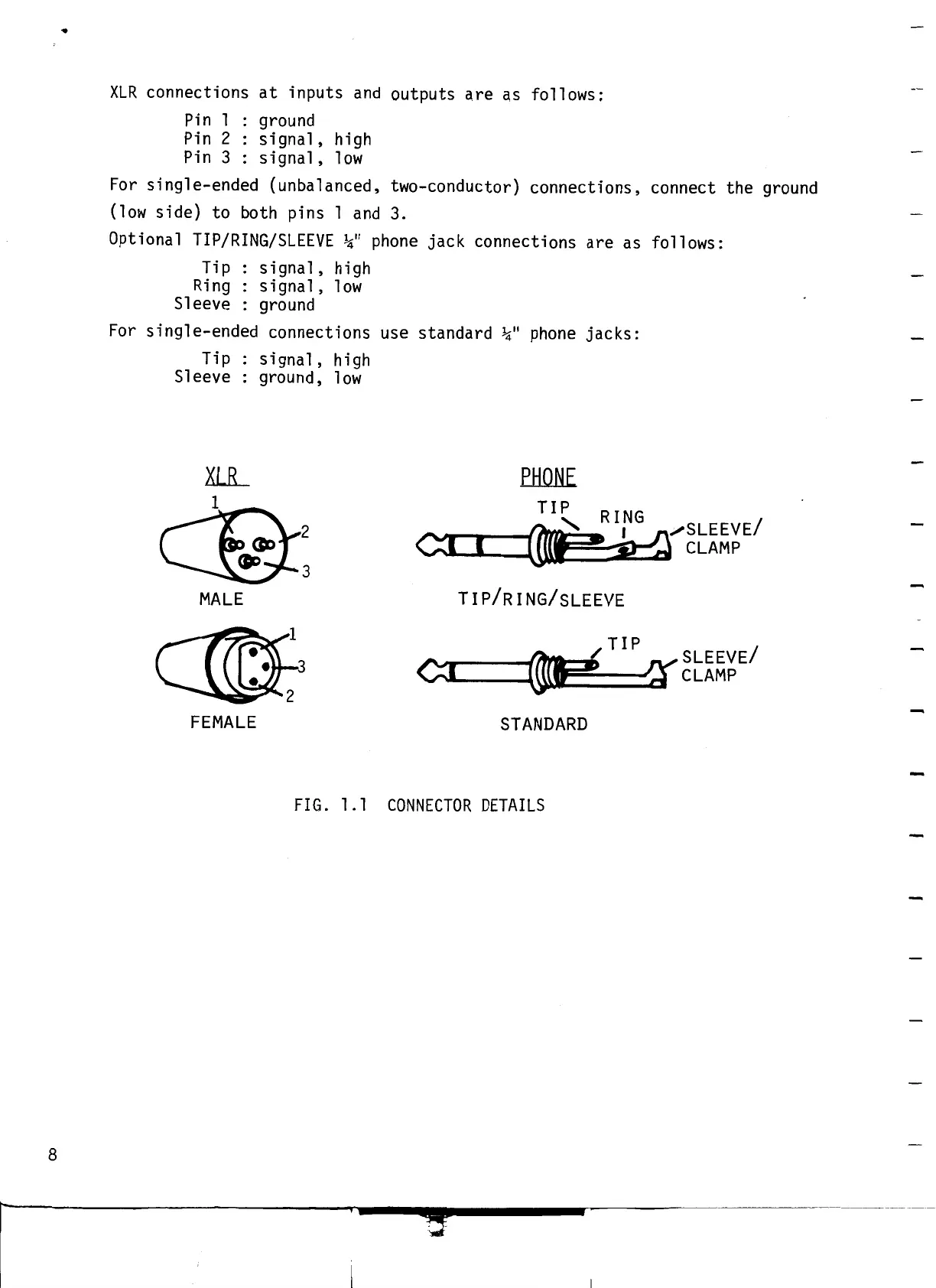

XLR connections at inputs and outputs are as follows:
Pin 1 : ground
Pin 2 :
signal, high
Pin 3 :
signal, low
For single-ended (unbalanced, two-conductor) connections, connect the ground
(low side) to both pins 1 and 3.
Optional
TIP/RING/SLEEVE~~~ phone jack connections are as follows:
Tip :
signal, high
Ring : signal, low
Sleeve : ground
For single-ended connections use standard ~~~ phone jacks:
Tip :
signal, high
Sleeve : ground,
low
Cl I
PHONE
TIP RING
@I' • M"~t!~~E/
MALE TIP/RING/SLEEVE
FEMALE STANDARD
FIG. 1.1 CONNECTOR DETAILS
5
L
