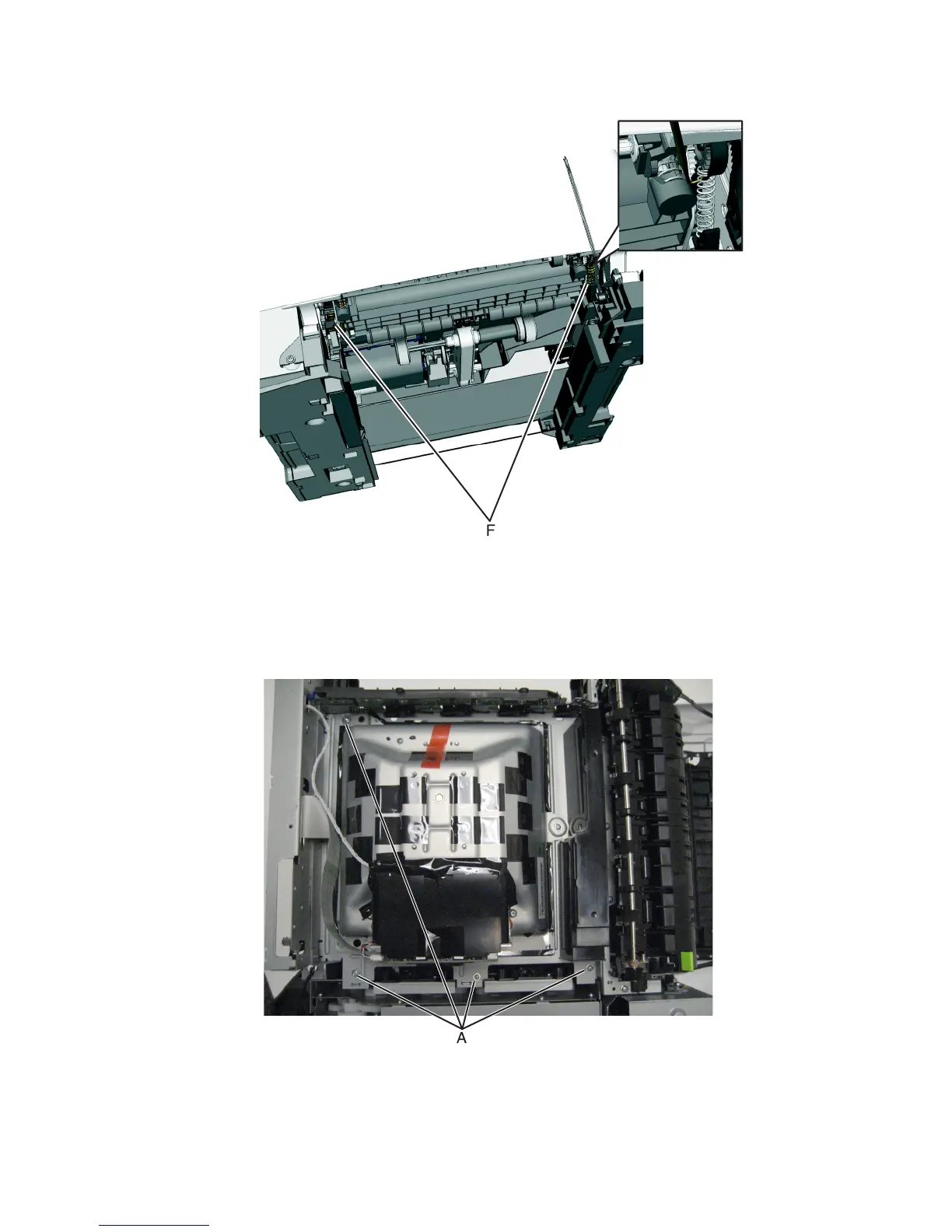

h Install the right spring (F).

Printhead removal

1 Remove the top cover assembly. See “Top cover assembly removal” on page 225.

2 Remove the four screws (A).

3 Remove the printhead.

7527

Repair information

292
