Install memory cards
Warning: Memory cards are easily damaged by static
electricity. Touch something metal on the printer before
you touch a memory card.
1 Complete the steps in “Removing
the system board shield” on
page 10.
2 Unpack the printer memory card.
Avoid touching the connection
points along the edge of the card.
Save the packaging.
3 Align the notches on the bottom of
the card with the notches on the
connector.
4 Guide the card between the
latches on each end of the
connector and push the card firmly
into the connector.
5 Make sure each latch fits over the
notch on each end of the memory
card.
6 Reattach the metal shield and side
cover. See page 12 for
instructions.

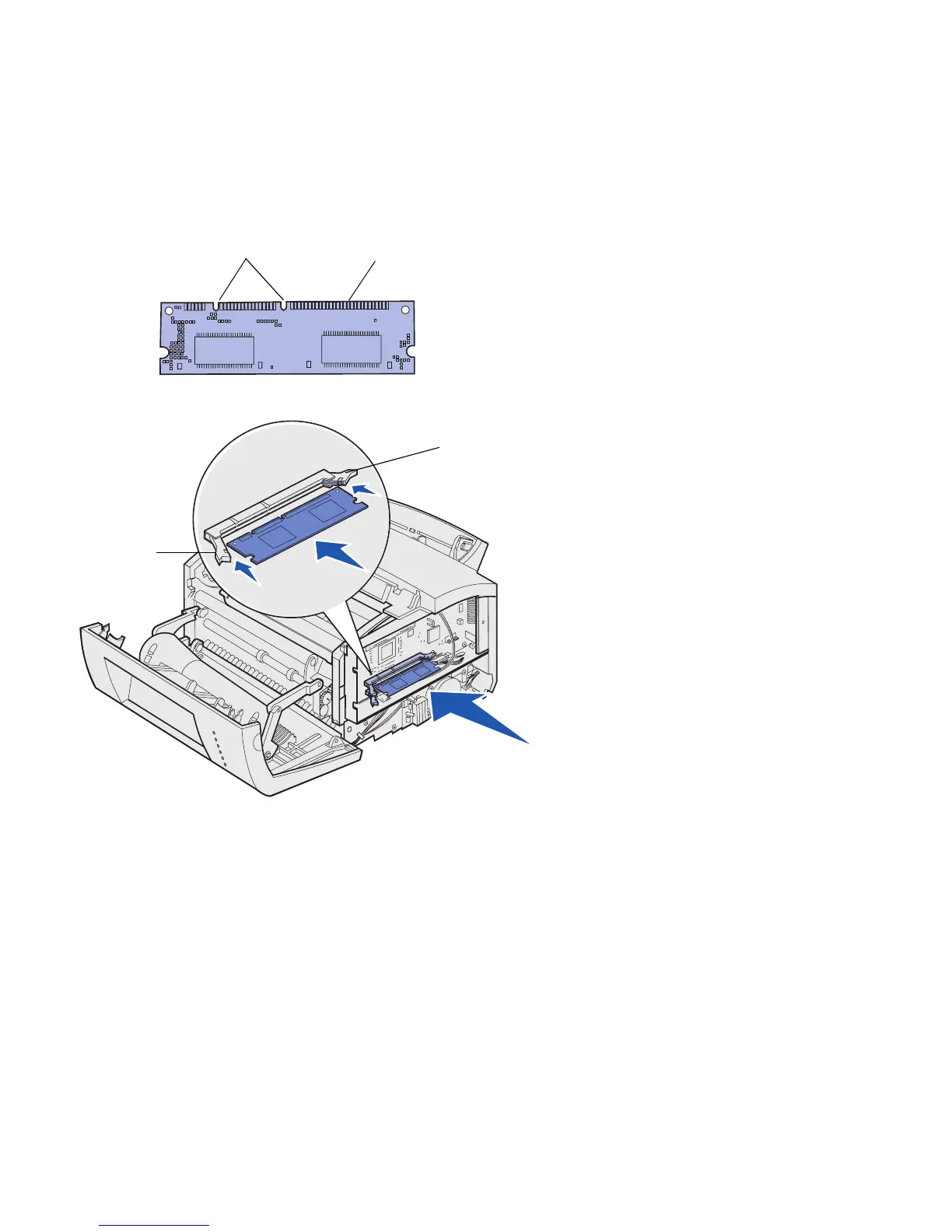

Connection points
Notches
Latch
Latch
