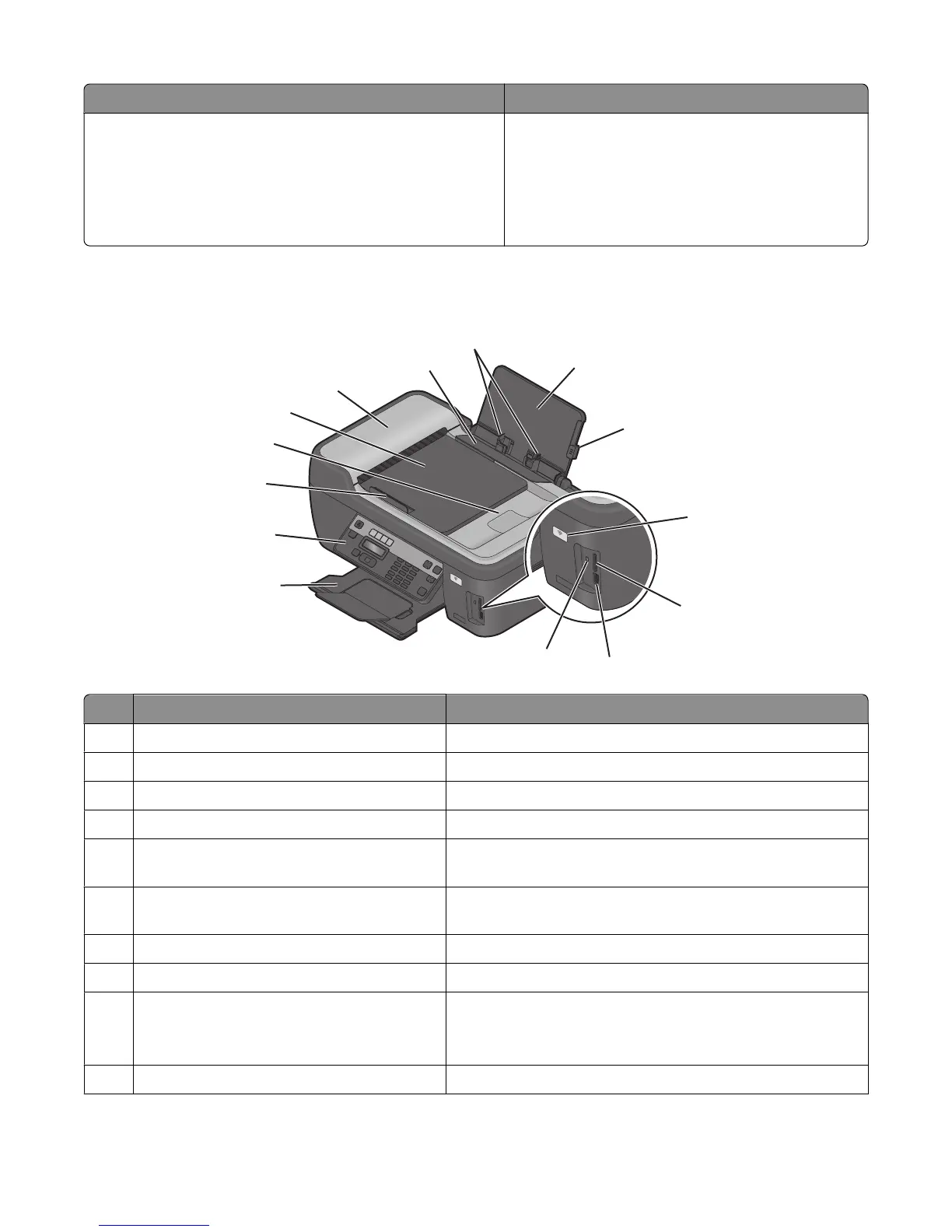

Use the To
4
EXT Port Connect additional devices (telephone or answering machine) to the printer and the
telephone line. Use this port if you do not have a dedicated fax line for the printer, and
if this connection method is supported in your country or region.
Note: Remove the plug to access the port.
5
LINE Port Connect the printer to an active telephone line (through a standard wall jack, DSL filter,
or VoIP adapter) to send and receive faxes.
6
USB port Connect the printer to a computer using a USB cable.
Warning—Potential Damage: Do not touch the USB port except when plugging in or
removing a USB cable or installation cable.
7 Printhead access Install the printhead.
Note: The carrier moves to the printhead access area when no printhead is installed on
the printer. For more information, see “Installing the printhead without the CD” on
page 14.
8
Ink cartridge access Install, replace, or remove ink cartridges.
9
Scanner unit
• Access the ink cartridges and printhead.
• Remove paper jams.
Using the printer control panel
The following diagrams explain the sections of the printer control panel:
About your printer
9
