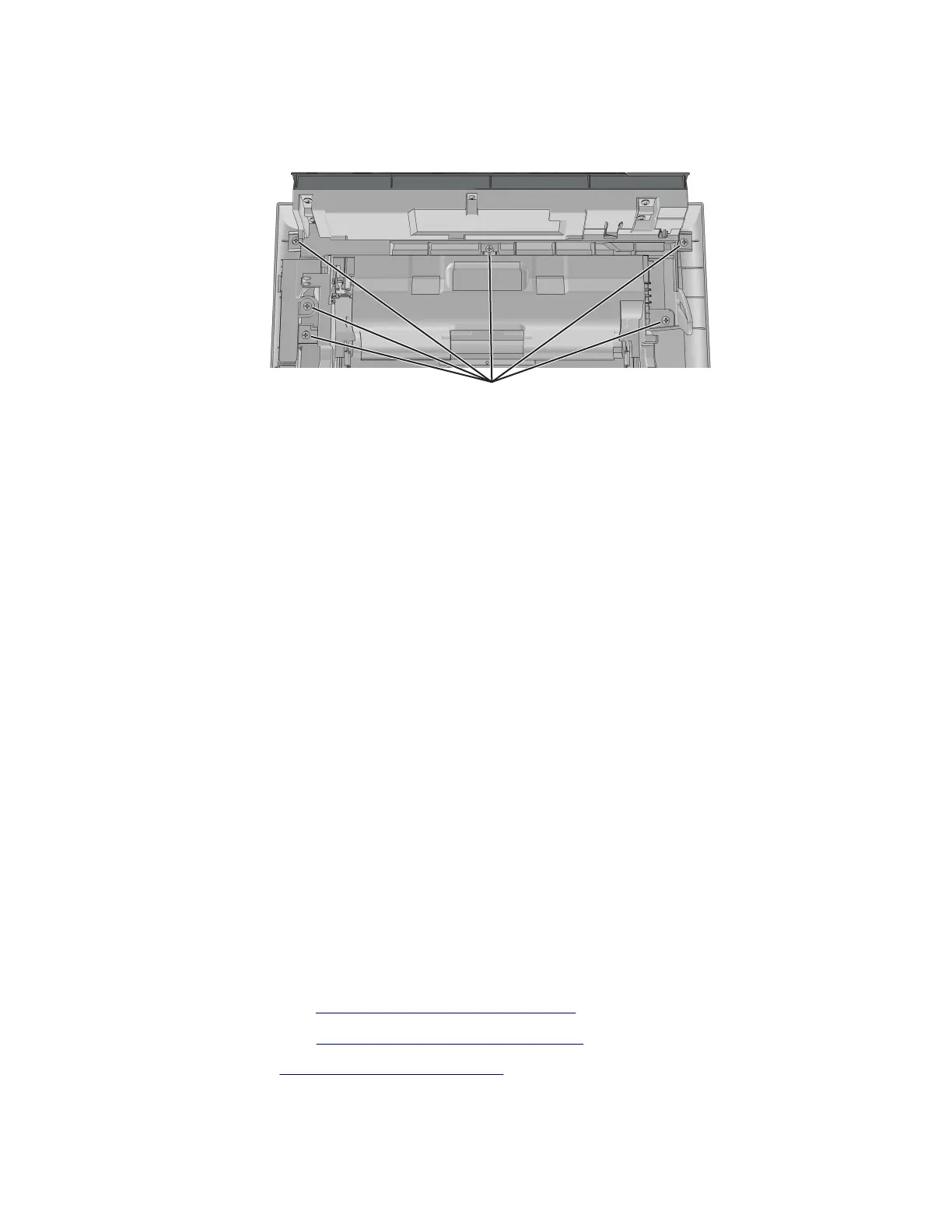

5 Remove the six screws (D) securing the nameplate.
D
Control panel assembly removals
Critical information for controller board or control panel replacement
Warning—Potential Damage: Replace only one of the following components at a time:
• Control panel
• Controller board
To replace a component, and to test whether the problem is resolved:
1 Replace the aected component.
Warning—Potential Damage: Do not perform a POR (Power‑On Reset) until the problem is resolved. If a
POR is performed at this point, the replacement part can no longer be used in another printer and must
be returned to the manufacturer.
2 Enter the Diagnostics Menu. The Diagnostics Menu allows you to temporarily use the replacement part.
Warning—Potential Damage: Some printers will automatically perform a POR if the Diagnostics Menu is
not opened within
five
seconds. If a POR is performed at this point, the replacement part can no longer
be used in another printer and must be returned to the manufacturer.
3 Use the Diagnostics Menu to test the replacement part. Do a feed test to check if the problem is resolved.
• If the problem is not resolved—Turn
o
the printer, and then reinstall the old part.
• If the problem is resolved—Perform a POR.
Removal procedure
Control panel assembly removal (MS510dn and MS610dn)
1 Remove the right cover. See “Right cover removal” on page 241.
2 Remove the nameplate. See “Nameplate removals” on page 263.
3 Remove the bezel. See “Bezel removals” on page 261.
4514-6xx
Parts removal
265

Lexmark M3150 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	47 ppm
Printing colors	Black
Maximum duty cycle	150000 pages per month
Recommended duty cycle	3000 - 16000 pages per month
Number of print cartridges	1
Paper input type	Paper tray
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Maximum print size	210 x 297 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	-
Mobile printing technologies	Not supported
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	3
Processor model	2-Core
Processor frequency	800 MHz
Maximum internal memory	2560 MB
Sound pressure level (printing)	55 dB
Display	LCD
Control type	Touch
Product color	Black, White
Display diagonal	4.3 \
Power consumption (printing)	- W
Sustainability certificates	ENERGY STAR
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %

Weight and Dimensions

Depth	396.5 mm
Width	399 mm
Height	306 mm
