Jam, pull tray 1. Push down blue flap. [23y.xx]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.

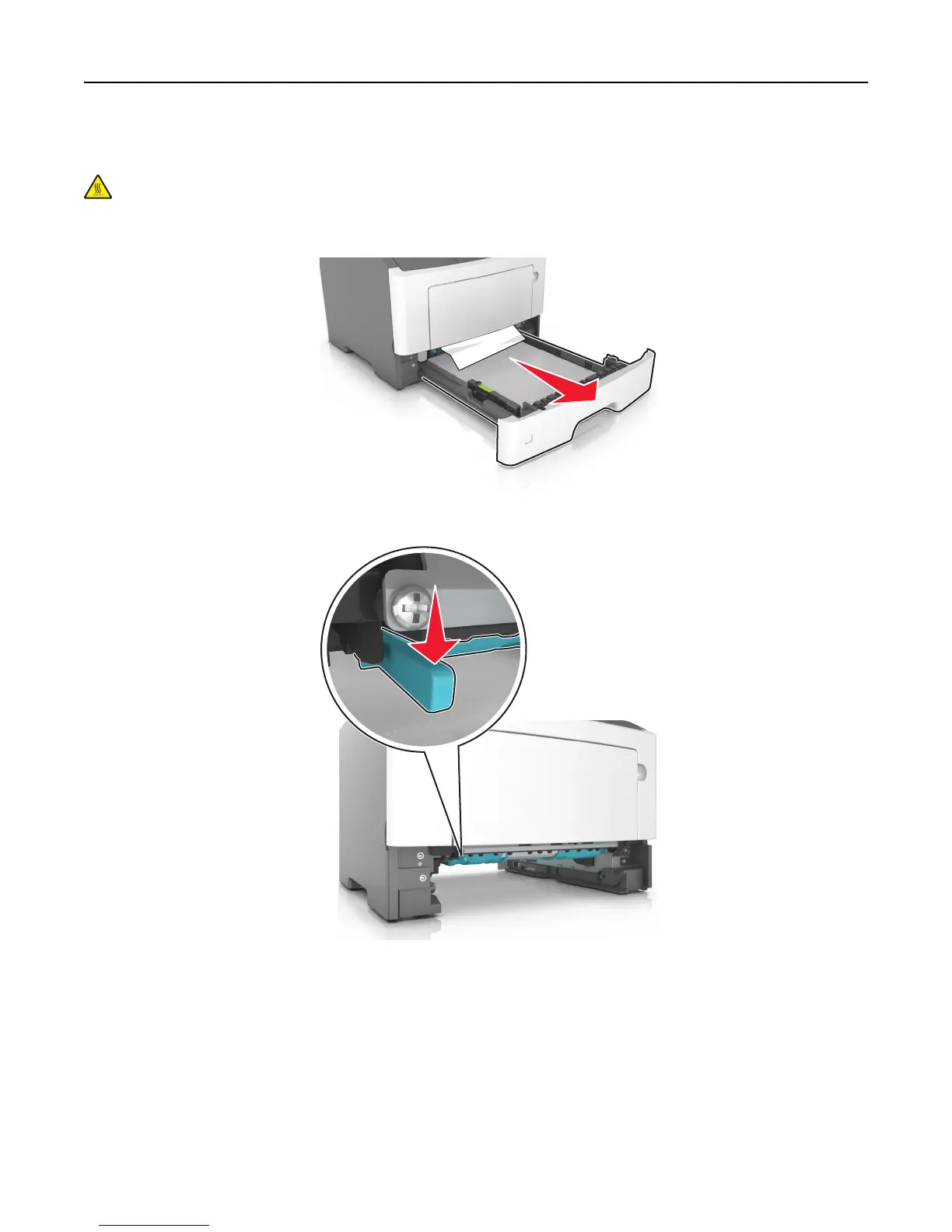

1 Pull the tray out completely.
2 Locate the blue lever, and then pull it down to release the jam.
Note: If the jammed paper is not visible in the duplex area, then open the rear door, and then gently remove the
jammed paper. Make sure all paper fragments are removed.
3 Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 111
