7 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 465.
8 Remove the media turn guide. See “Media turn guide removal” on page 462.
9 Remove the media vertical guide. See “Media vertical guide removal” on page 463.
10 Remove the duplex exit diverter. See “Duplex exit diverter removal” on page 451.
11 Remove the inner guide deflector. See “Inner guide deflector removal” on page 455.

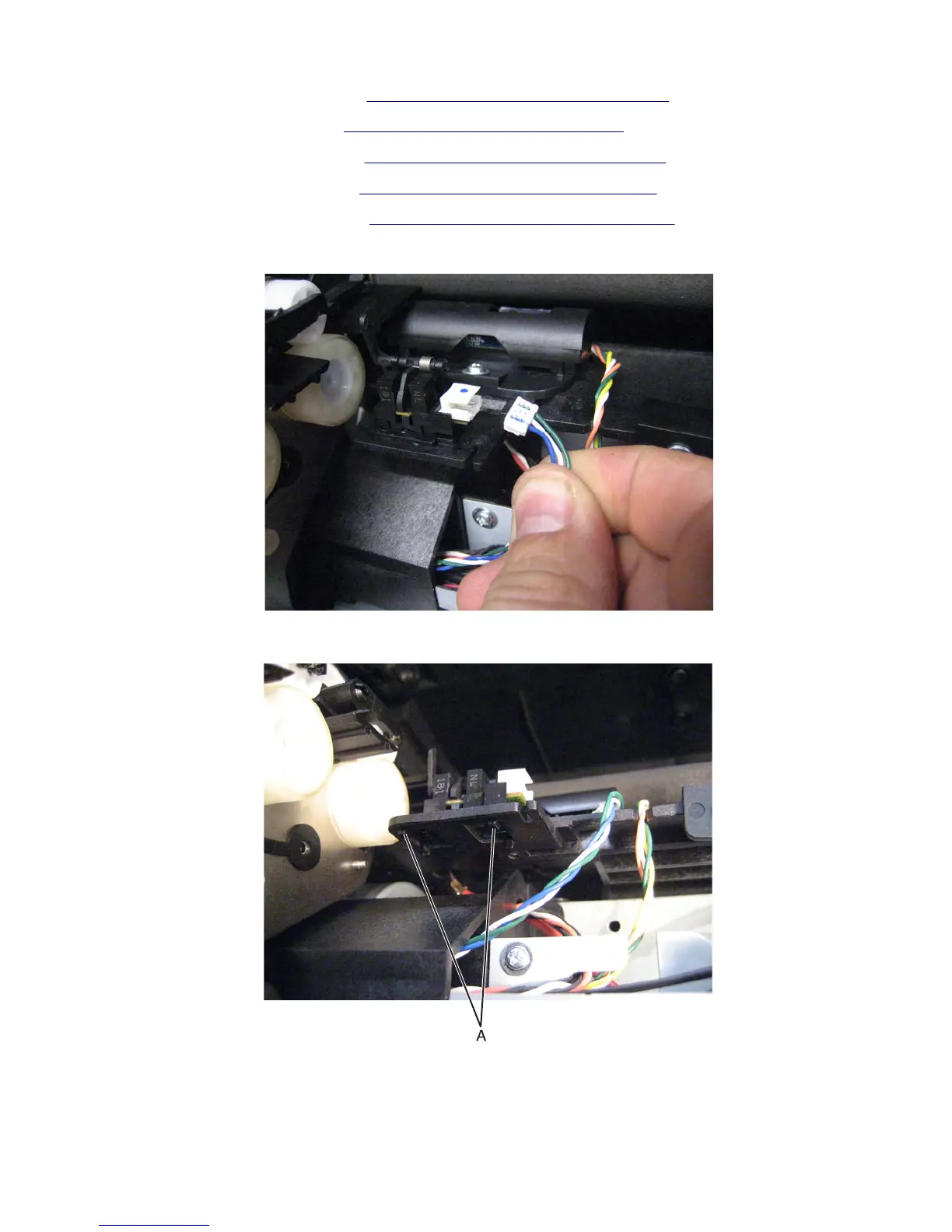

12 Disconnect the cable from the sensor (input).
13 Release the hooks (A) securing the sensor (input) to the machine.
14 Remove the sensor (input).
7463
Repair information
474
