Media tray separation roller removal

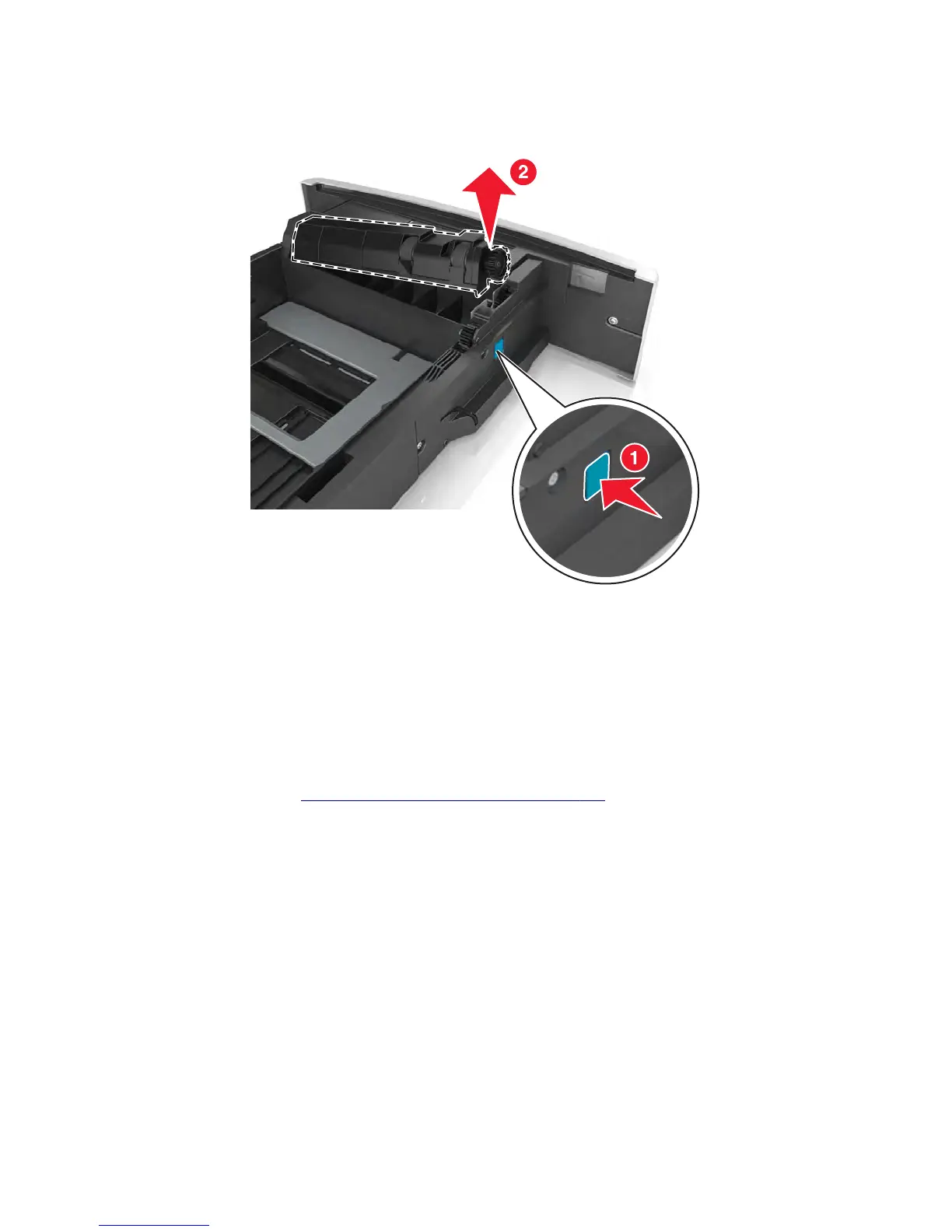

Press and hold the button (1), then pull the separation roller (2) and remove.
Media tray assembly removal
1 Fully extend the tray.
2 Tilt it upward, and then remove.
Media tray front cover removal
1 Remove the media tray. See “Media tray assembly removal” on page 689.
2 Remove the two screws (A) securing the front tray cover.
