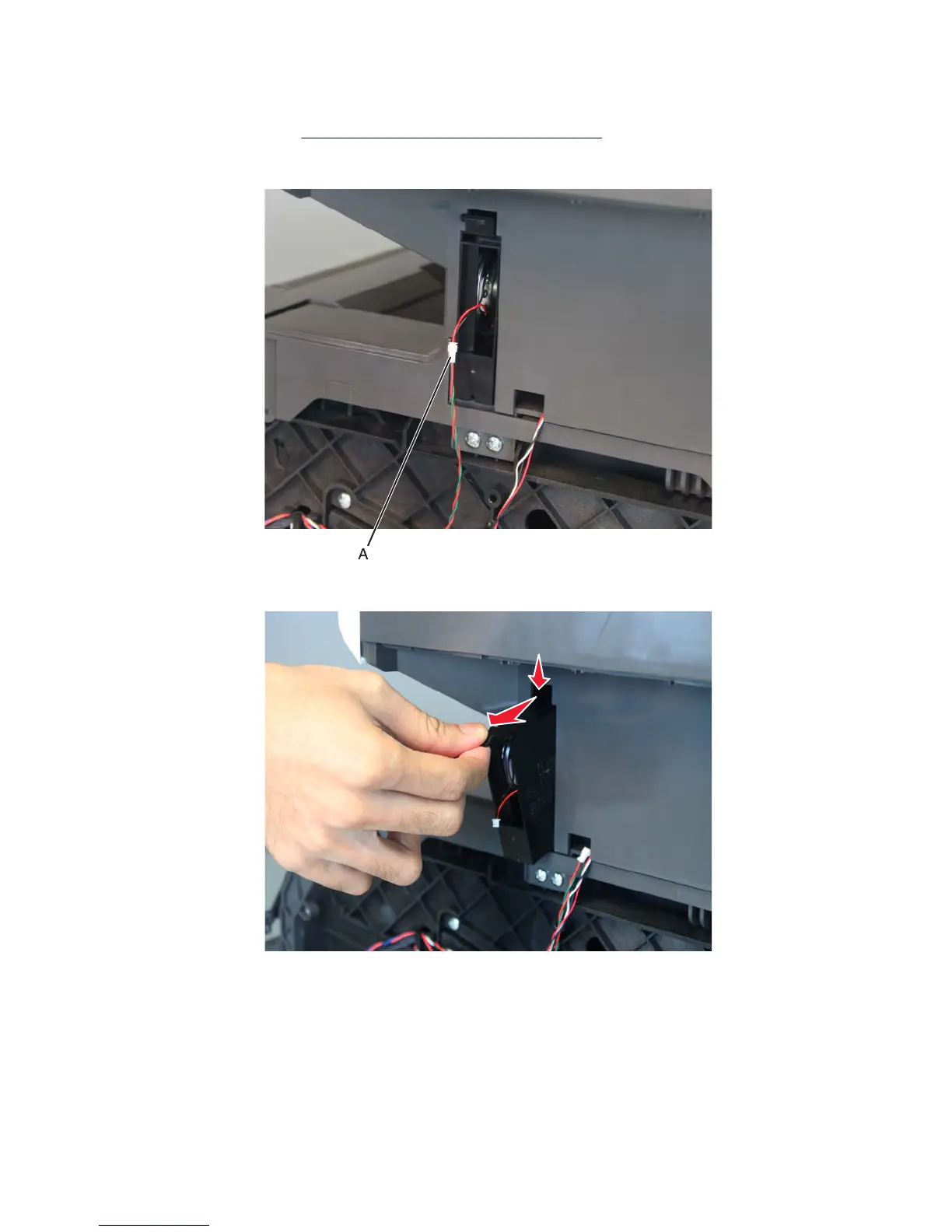

Control panel speaker and speaker bracket removal (MX71x)
1 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
2 Disconnect the speaker cable (A).
3 Press down on the latch, and then pull to remove the speaker with the speaker bracket.
7463
Repair information
441
