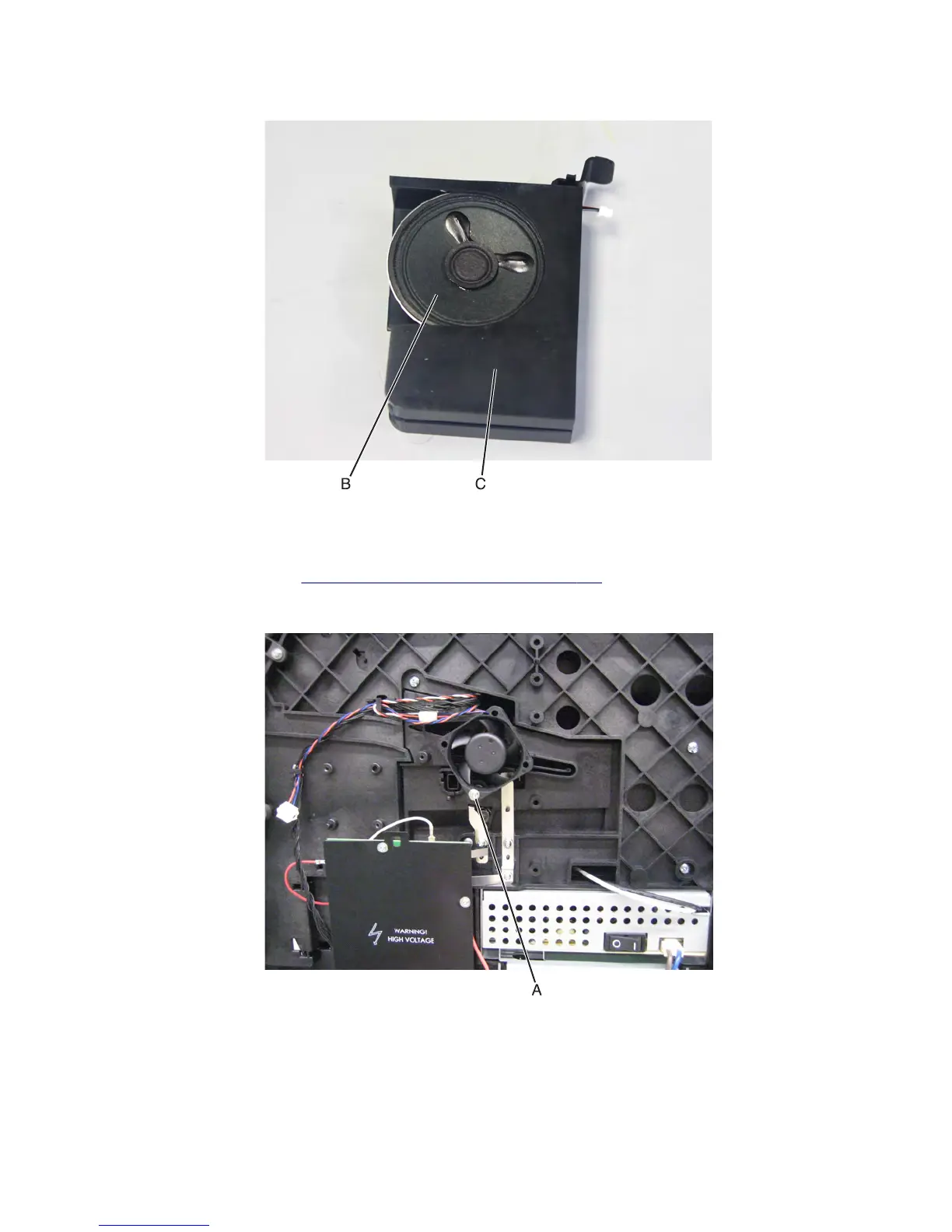

4 Remove the speaker (B) from the speaker bracket (C).
Cartridge cooling fan removal
1 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
2 Remove the screw (A) securing the cartridge cooling fan to the machine.
3 Remove the cartridge cooling fan.
7463
Repair information
442
