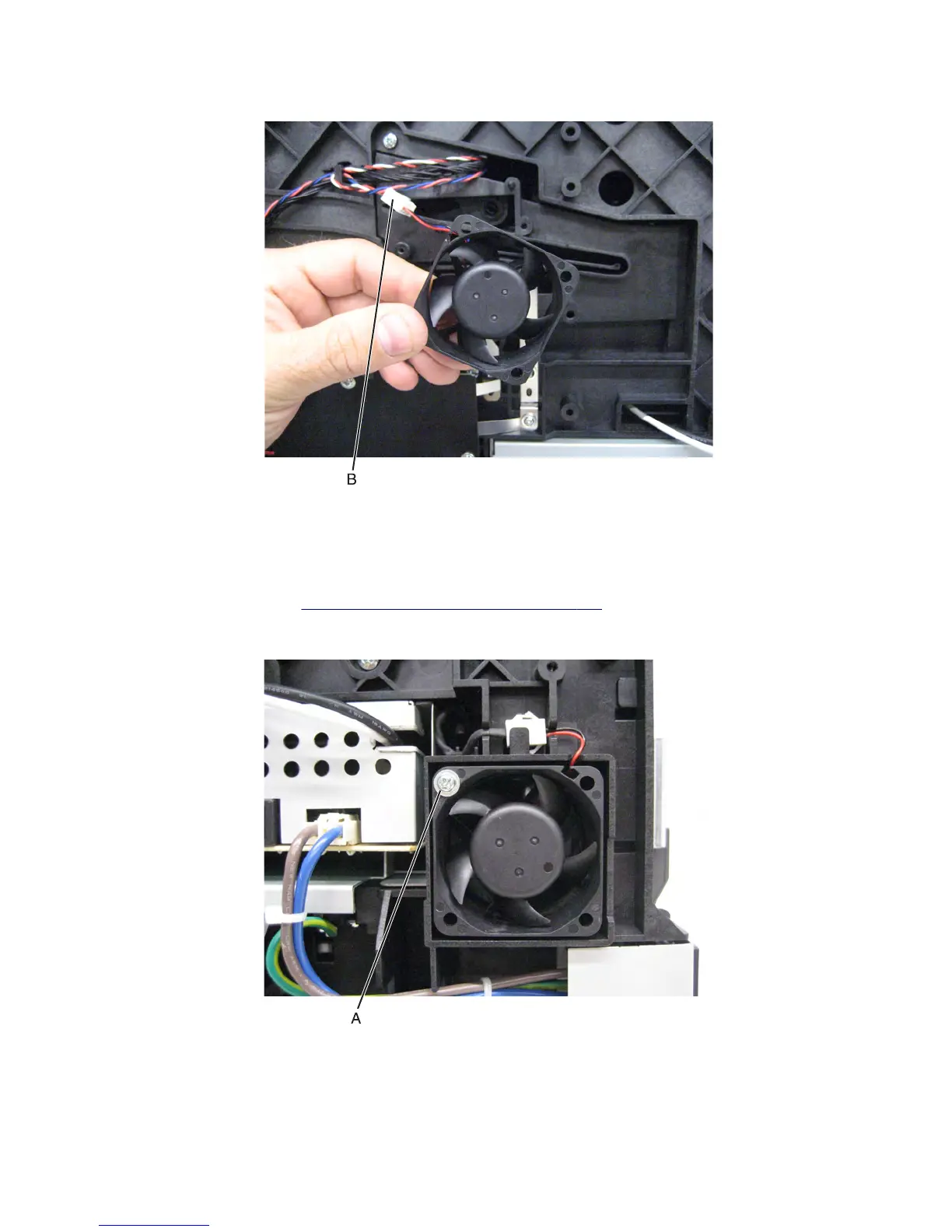

4 Disconnect the cable (B).
Installation note: When replacing the cartridge cooling fan, ensure that it is installed as shown in the picture.
Duplex cooling fan removal
1 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
2 Remove the screw (A) securing the duplex cooling fan from the machine.
3 Remove the duplex cooling fan.
