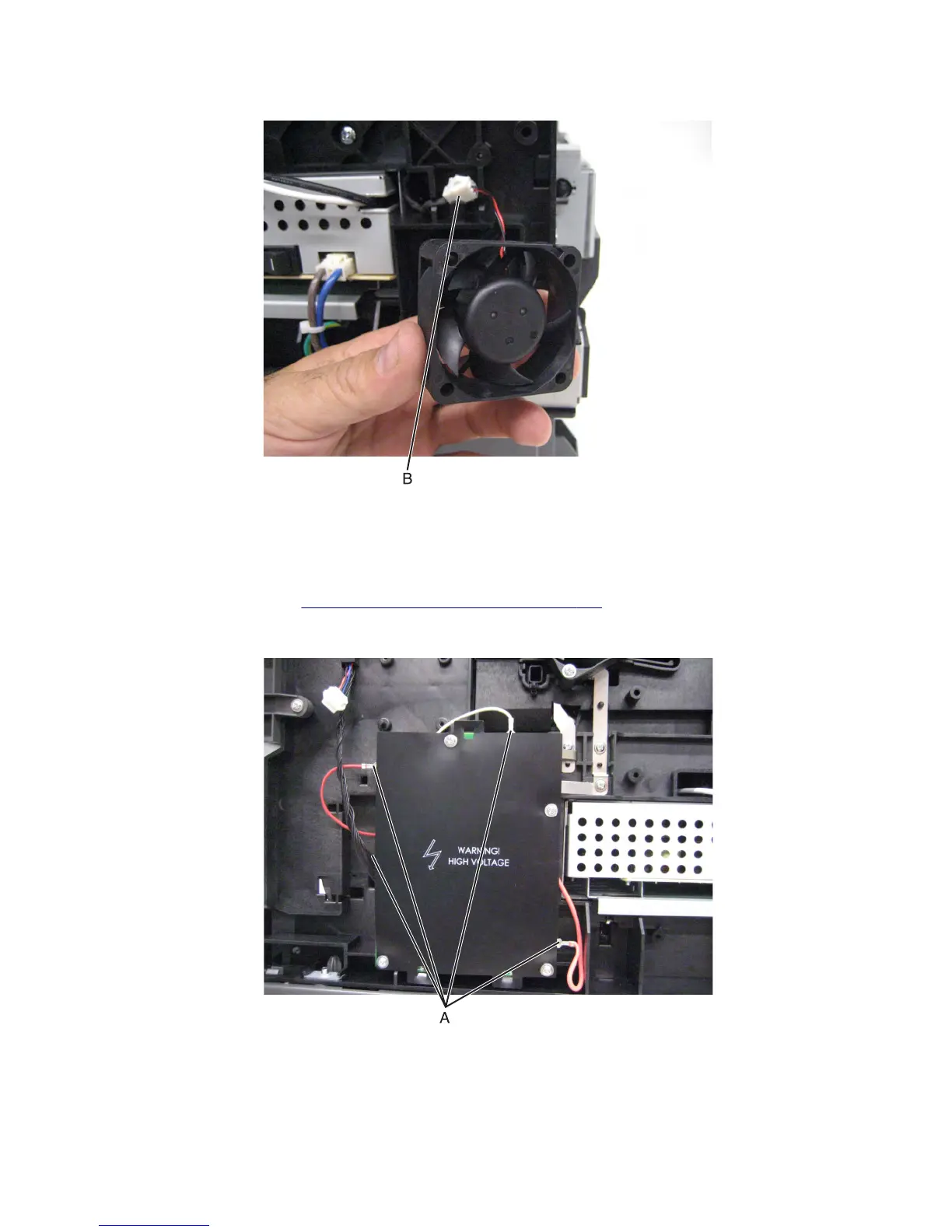

4 Disconnect the cable (B).
Installation note: When replacing the duplex cooling fan, ensure that it is installed as shown in the picture.
HVPS removal
1 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
2 Disconnect four cables (A) from the HVPS.
7463
Repair information
444
