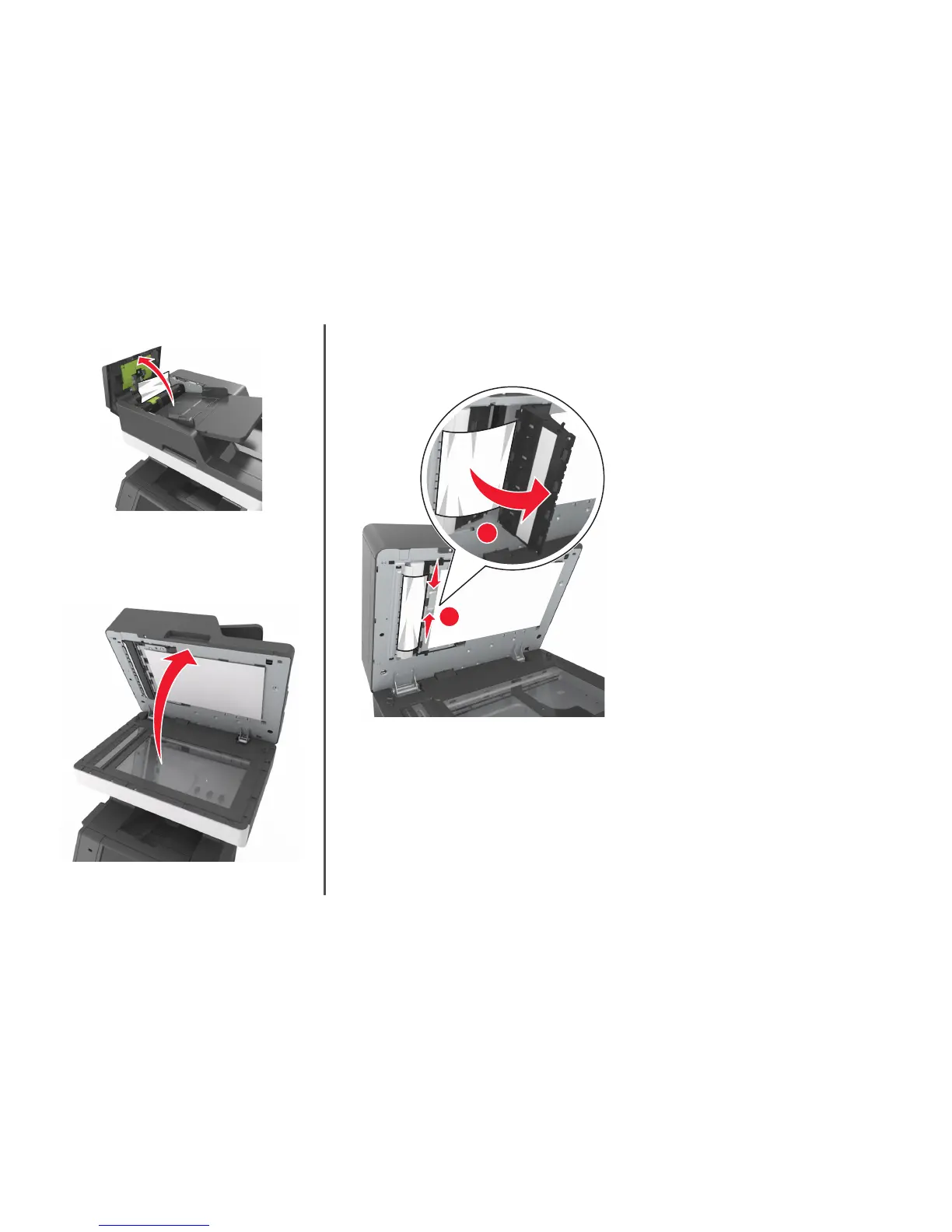

2 Open the ADF cover.
3 Firmly grasp the jammed paper on each side, and then gently pull
it out.
Note: Make sure all paper fragments are removed.
4 Close the ADF cover.
5 Open the scanner cover.
6 If the jam is in the bottom ADF door or ADF exit bin, then open the
bottom ADF door, and then firmly grasp the jammed paper on each
side.
Note: Make sure all paper fragments are removed.
1
2
7 Close the bottom ADF door.
8 Straighten the edges of the original documents, then load the
documents into the ADF, and then adjust the paper guide.
9 From the printer control panel, touch Done to clear the message
and continue printing.
