Interfaces
8-21

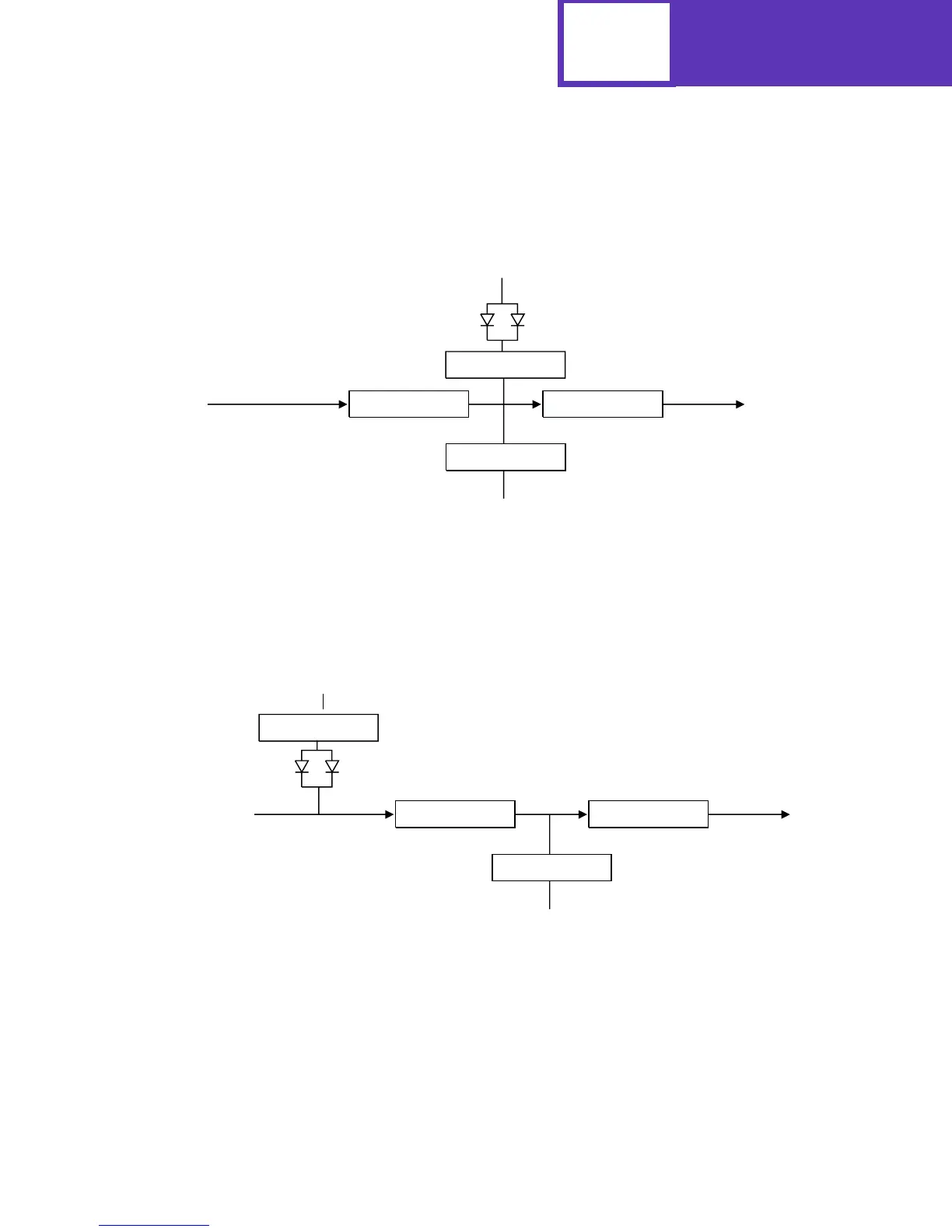

STROBE, AUTOFD* Receivers for Optra E310, Optra E312, and Optra M410
The following diagram illustrates the STROBE, AUTOFD* receivers for Optra E310,
Optra E312, and Optra M410.
STROBE Receiver for Optra Color 1200
The following diagram illustrates the STROBE receiver for the Optra Color 1200
printer.
+5V
1.0K ohm ±10%
Connector
Pin
650 pF ±20%
FCT 2828
Signal
GND
33 ohm ±10%
+5V
1.0K ohm ±5%
Connector
470 ohm ±5% FCT 2828
Signal
150 pF ±20%
GND
Pin
