2-1. Instrument cluster
Vehicle status information and indicators
The location of warning lights and indicators may differ depending on the intended destina-
tion of the vehicle and the selected main meter location.
The image may differ from the actual condition.

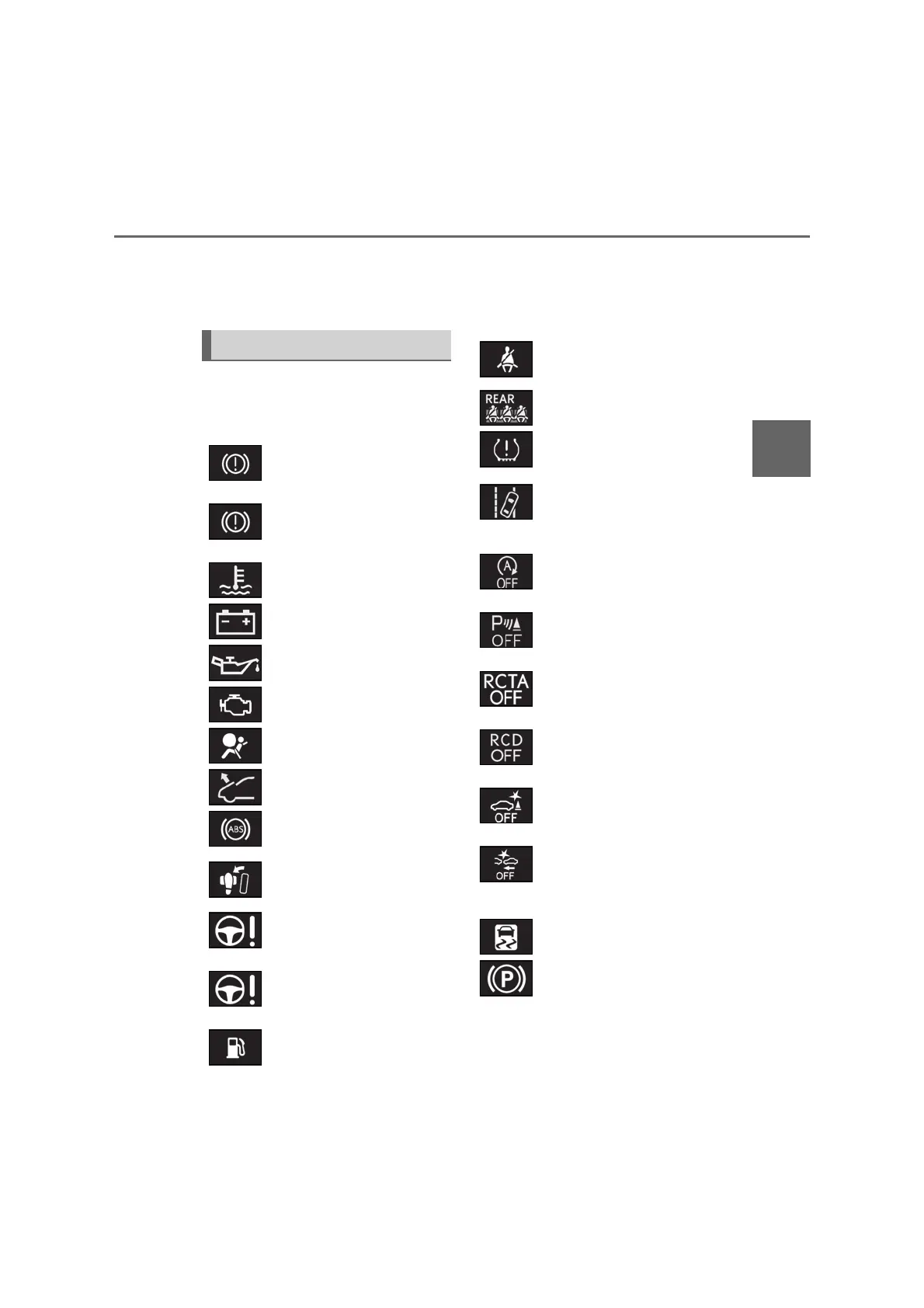

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.
Warning lights
(red)
Brake system warning light
*1
(P.432)
(yellow)
Brake system warning light
*1
(P.432)
High coolant temperature
warning light
*2
(P.432)
Charging system warning
light
*2
(P.432)
Low engine oil pressure warn-
ing light
*2
(P.433)
Malfunction indicator lamp
*1
(P.433)
SRS warning light
*1
(P.433)
Pop Up Hood warning light
*1
(P.433)
ABS warning light
*1
(P.434)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2
(P.434)
(red)
Electric power steering system
warning light
*1
(P.434)
(yellow)
Electric power steering system
warning light
*1
(P.434)
Low fuel level warning light
(P.434)
Driver’s and front passenger’s
seat belt reminder light
(P.435)
Rear passengers’ seat belt
reminder lights (P.435)
Tire pressure warning light
*1
(if
equipped) (P.436)
(orange)
LTA indicator (if equipped)
(P.436)
LDA indicator (if equipped)
(P.436)
(flashes)
Stop & Start cancel indicator
*1
(if equipped) (P.436)
(flashes)
Lexus parking assist-sensor
OFF indicator
*1
(P.437)
(flashes)
RCTA OFF indicator
*1
(if
equipped) (P.437)
(flashes)
RCD OFF indicator (if
equipped) (P.437)
(flashes)
PKSB OFF indicator
*1
(if
equipped) (P.438)
(flashes or
illuminates)
PCS warning light
*1
(if
equipped) (P.438)
Slip indicator
*1
(P.438)
(flashes)
Parking brake indicator
(P.439)
