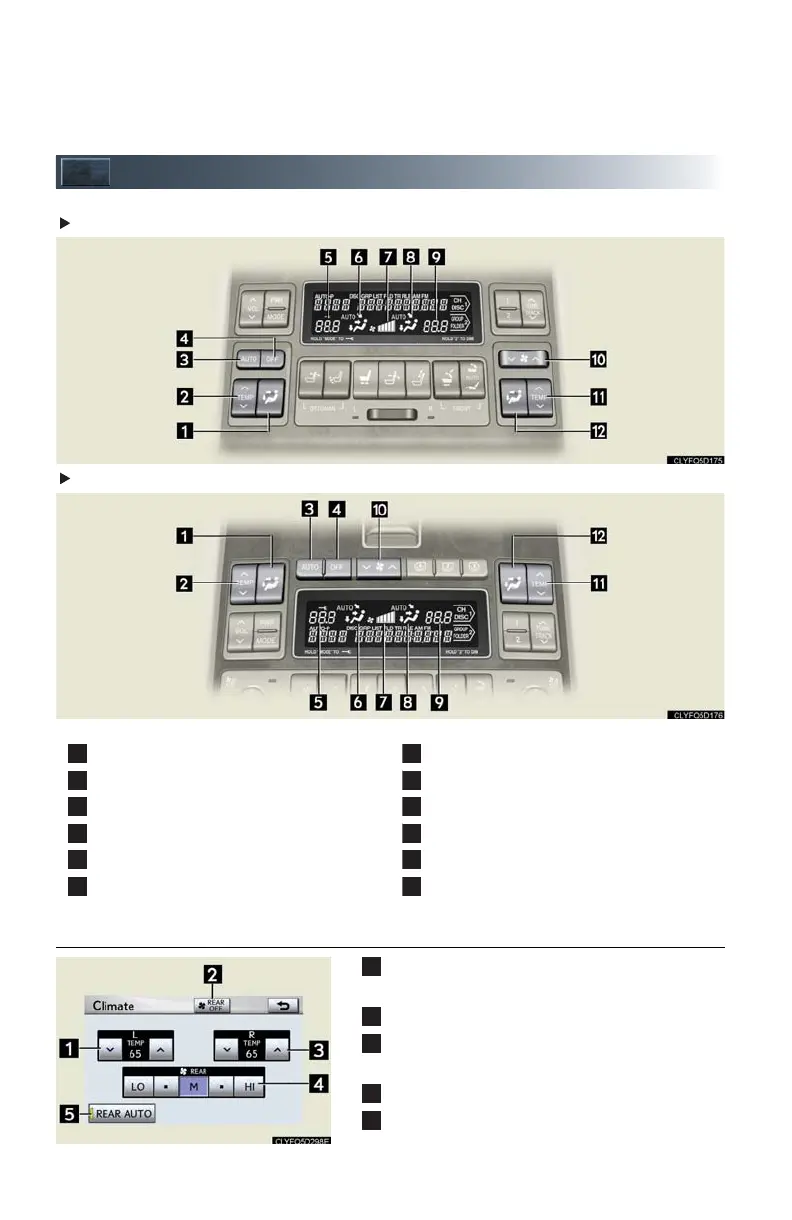

Rear Air Conditioning System (If Equipped)
5-seat models
4-seat models
■ Front controller (touch screen)
Left side temperature control switch and dis-
play
Off
Right side temperature control switch and dis-
play
Fan speed display
Automatic mode button
Changes the left side air outlet used
Left side temperature control
Automatic mode button
“OFF” button
Left side temperature display
Left side air flow display
Air volume display
Right side air flow display
Right side temperature display
Air volume controls
Right side temperature control
Changes the right side air outlet used
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
