Maintenance
19
Key to Fig. 9
1 Piston
2 Piston bushings
3 Cam
4 Slide valve
5 O-ring
6 Tapered dowel pins
7 Radial shaft seal
8 Front end plate
9 Three-phase motor
10 Spacer bushing
11 Pinion gear
12 Spacer bushing
13 Screw
14 Gasket
15 Gear box
16 Gasket
17 Retainer ring
18 Ring gear
19 Spacer
20 Outer race
21 Reverse lock
22 Inner race
23 Shims
24 Bearing
25 Retainer ring
26 Spacer
27 L-ring shaft seal

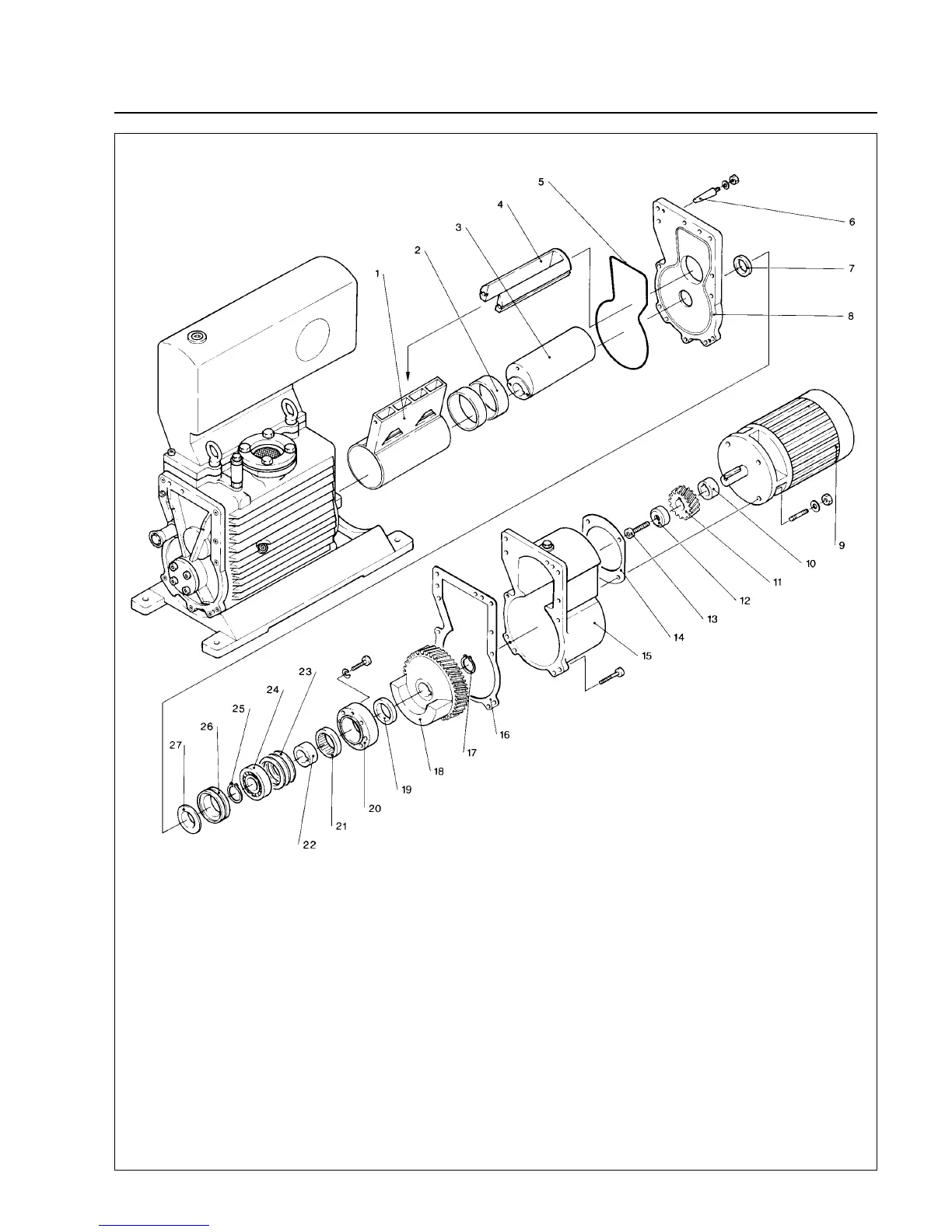

Fig. 9 Disassembling and assembling the motor side
