Installation
29300750767_002_C3 - 12/2020 - © Leybold
3.6 Electrical Connection
Take note of the information provided in the Operating Instructions “Quick
Start Guide” enclosed with the frequency converter. Read these Operating
Instructions and make yourself comfortable with the contents before install-
ing and operating the frequency converter or before doing maintenance
work on it. The frequency converter must be installed in agreement with
the information given in these Operating Instructions and in agreement with
the locally applicable regulations. Non-compliance with the safety informa-
tion can result in severe or even deadly injuries or may damage the prod-
ucts or facilities and systems operated in connection with the product.
DANGER

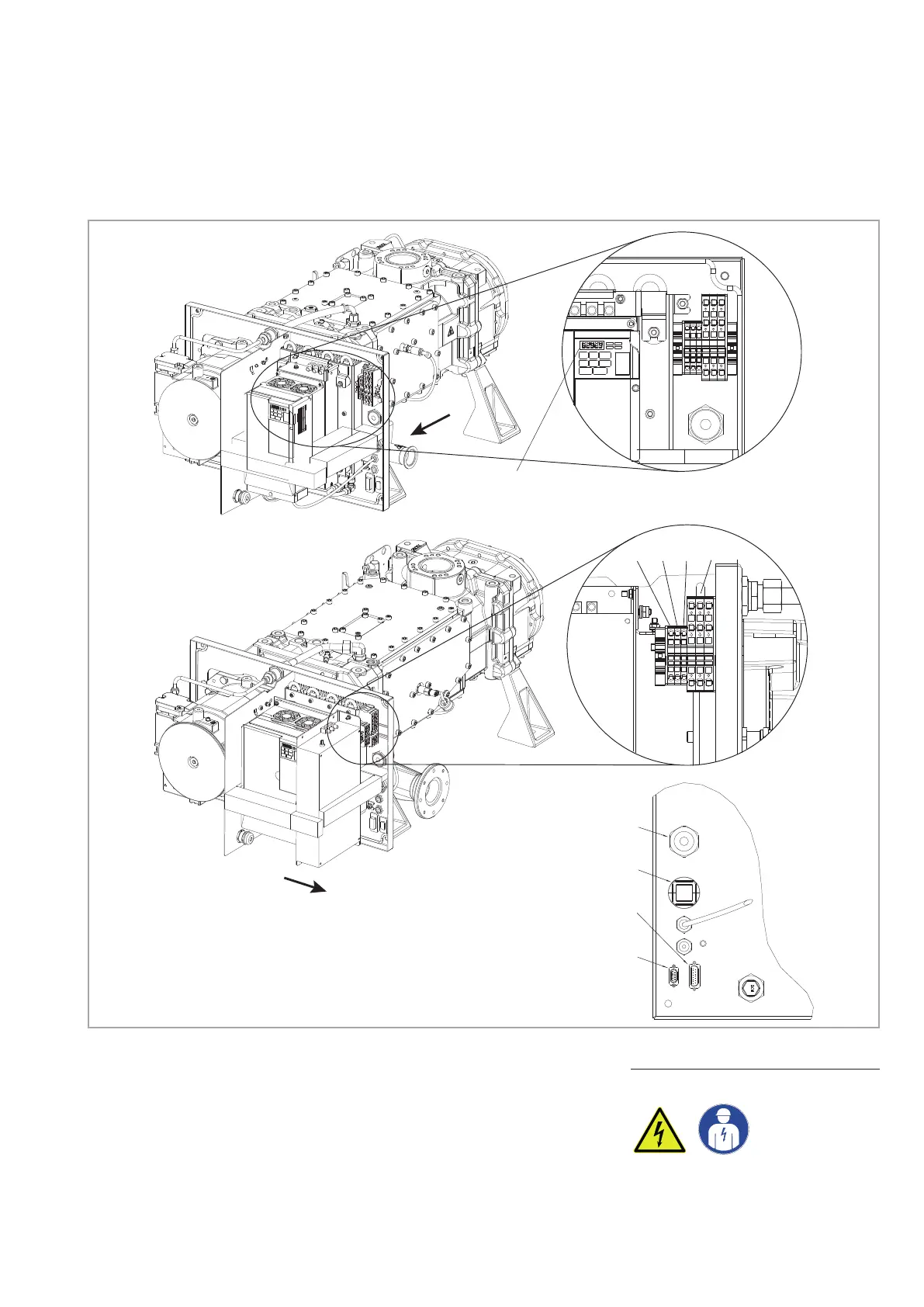

Fig. 3.5 Frequency converter without covers
Kabeldurchführung Netzanschluss
Kabeldurchführung
SUB-D-Buchse 9-pol X104
SUB-D-Stecker 15-pol X103
X1
X1
Display
DV 200/300
DV 500
X2
X2
PEL1
L2 L3
Feedthrough for mains connection
Feedthrough
Sub-D plug 15 poles X103
Sub-D socket 9 poles X104
