LF UTILITECH RAD 42-90IN - Final Installation

Note: Use a level (EE) to level mounting the Wall plate
(A).
GG
M8x60 mm lag bolts
M8 lag washers
HH
Hardware Used
11. Hang pre-assembled TV units (B) and (C) on the
wall plate (A) and pull down the cords and release;
you will hear the latches click into place.
x4
x4
Final Installation
11
B
C
A
3
11.a

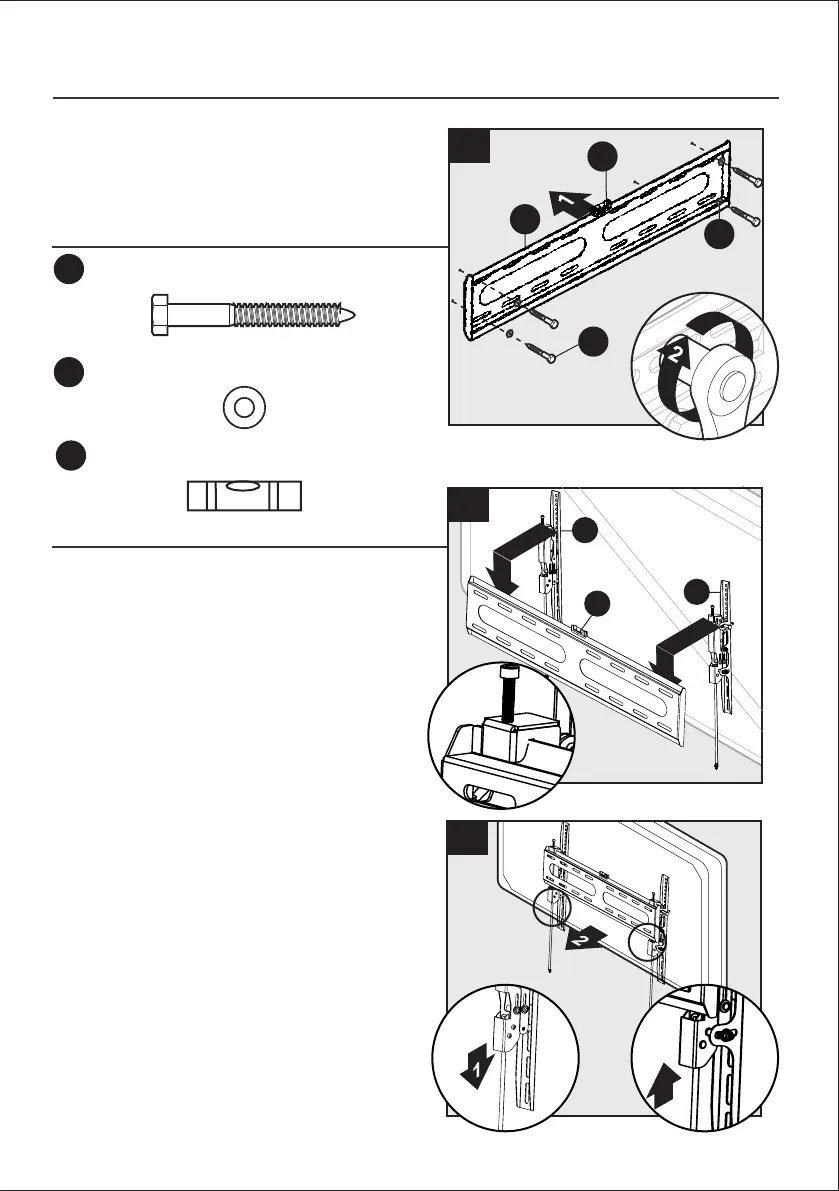

10. Fix the wall plate (A) to the wall with four M8 lag-
washers (HH) and four M8x60 mm lag bolts (GG)
using the 1/2-in. socket wrench (not included).
EE
10
A
GG
HH
EE
Bubble level
x1
