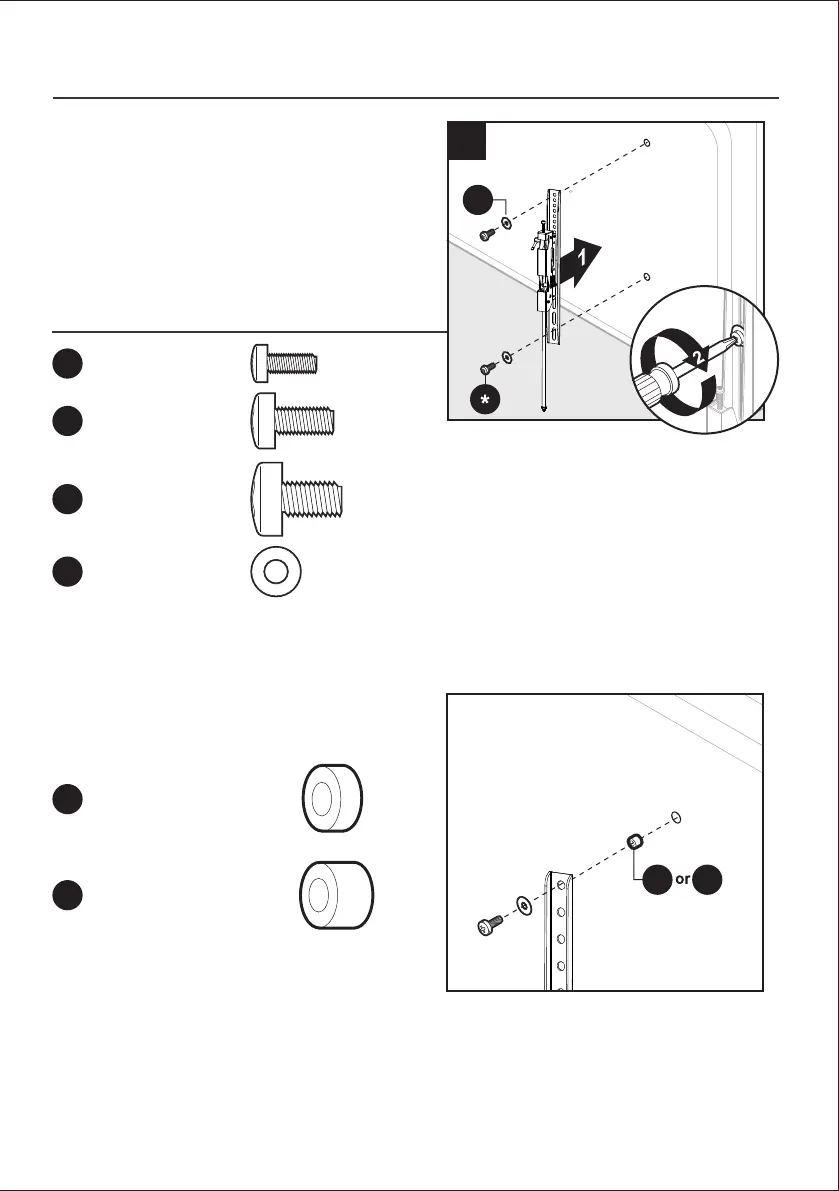

1a. For the flat back flat panel: Attach the left and
right TV brackets (B) and (C) with a four washers
(QQ) and four screws (*).
*Note: TV brackets can be attached with M4 x 12-
screws (JJ) or M6 x 12 screws (KK), or M8 x 20-
screws (LL), depending on your TV.
Hardware Used
JJ
KK
LL
QQ
M4 x 12 Screw
M6 x 12 Screw
M8 x 20 Screw
M5 Washer
x4
x4
x4
x4
5 mm Spacer
10 mm Spacer
SS
TT
QQ
Tip: 5 mm spacer (SS) and/or
14 mm spacers (TT) can also be
used.
1a
SS TT
x8
x8
ASSEMBLY INSTRUCTIONS
7
