72

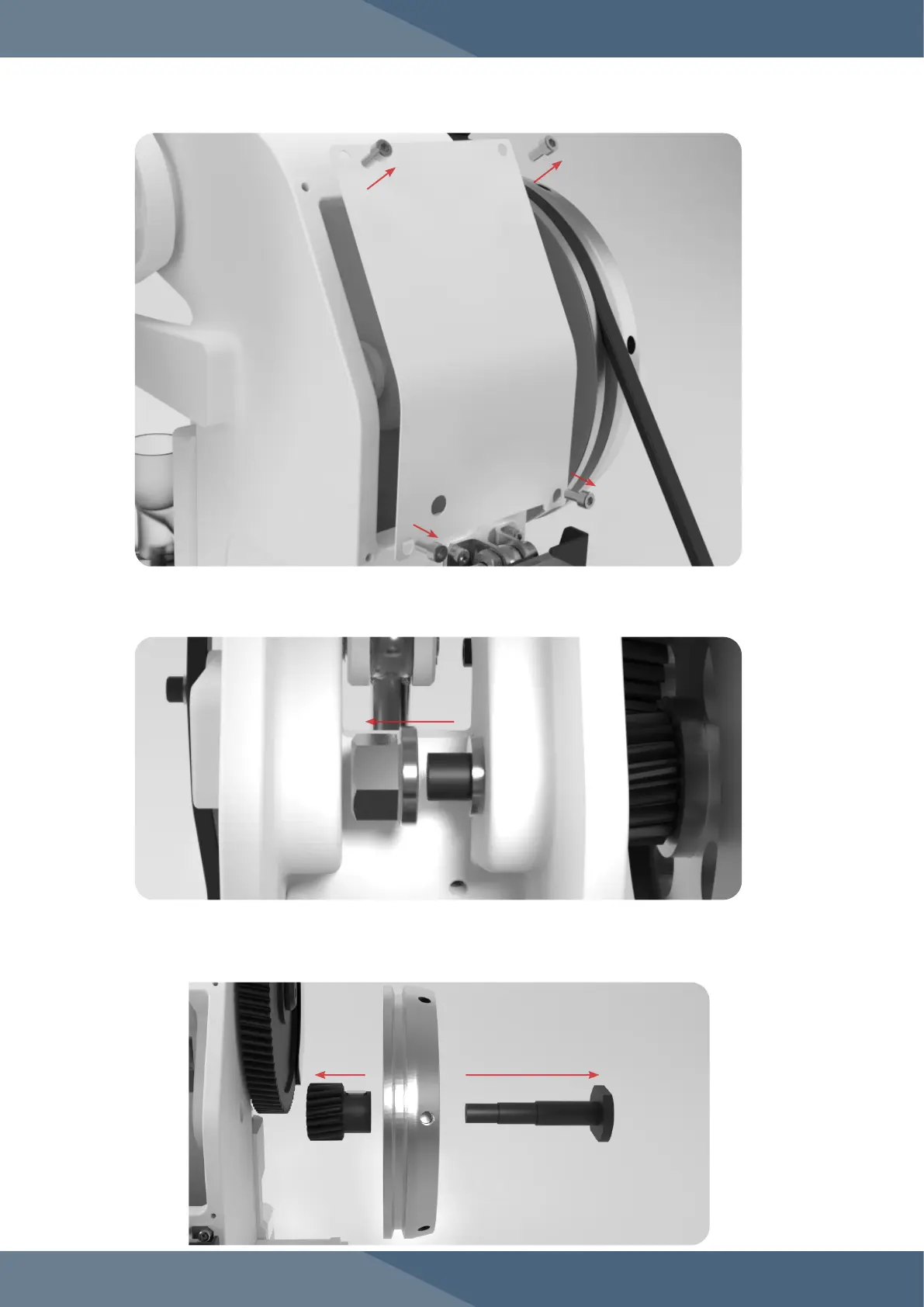

4. Loosen the nut from the Pinion Gear Cam that connects the Pinion Gear and the Electrical
Drive Flywheel to the TDP 5 Base® with a 30 mm wrench.
5. Unscrew the Pinion Gear Cam and remove the Pinion Gear from the Electrical Drive
Flywheel.
5.1 Note: Use a gear pulley if the Pinion Gear is difficult to pry out.
3. Remove the Rear Enclosure Plate off of the back of the TDP 5® with an Allen key.
