Replace the Electrical Drive Flywheel

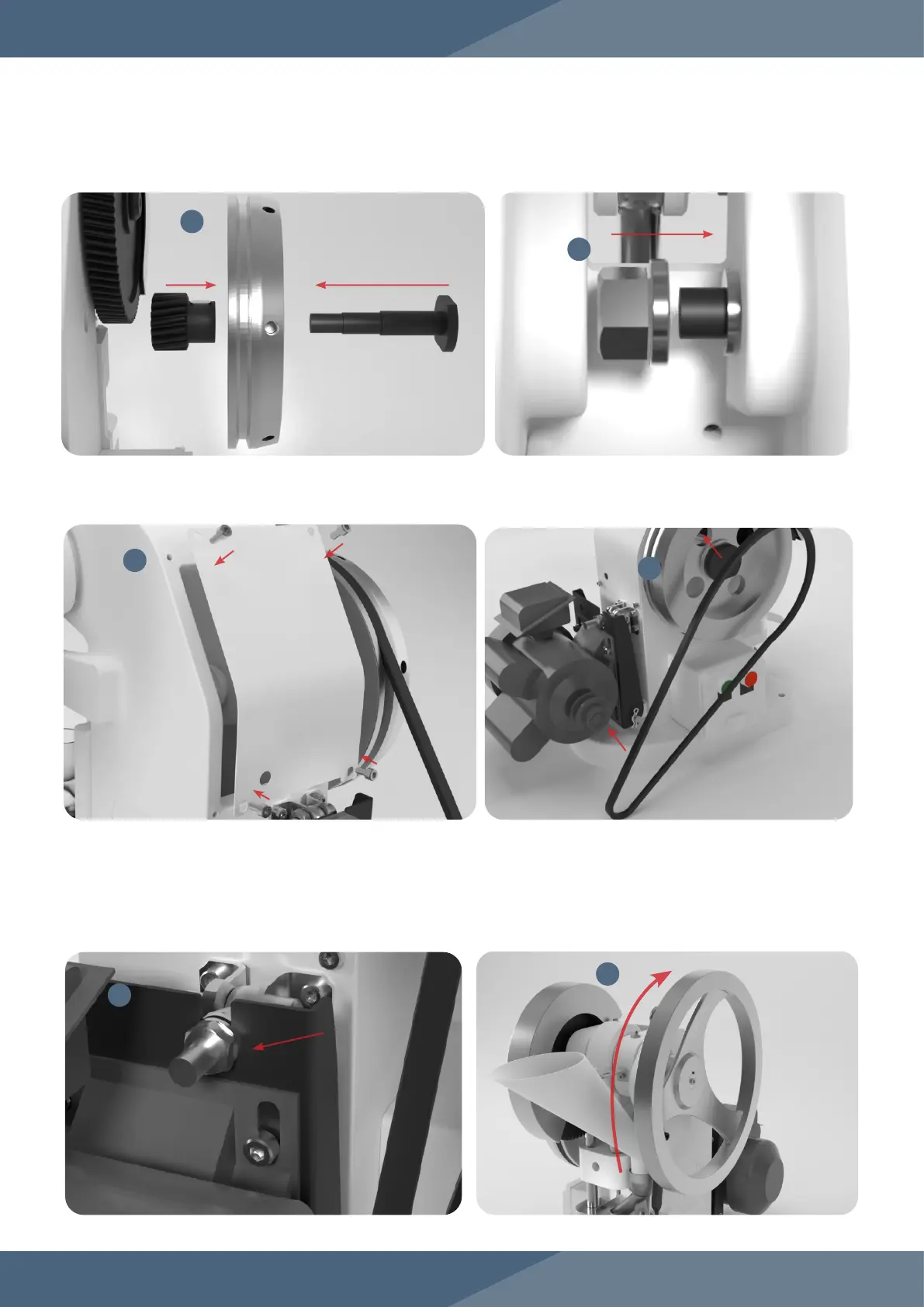

6. Insert the Pinion Gear and the Pinion Gear Cam into the new Electrical Drive Flywheel.
7. Install the Pinion Gear, the Pinion Gear Cam, and the new Electrical Drive Flywheel into the
TDP 5® Base by tightening the Pinon Gear Cam's nut.
8. Reattach the Rear Enclosure Plate to the back of the TDP 5® with an Allen key.
9. Place the V Belt back onto the Drive Belt Pulley and the new Electrical Drive Flywheel.
10. Adjust the nuts on the Motor Support Arm to tighten the V Belt.
10.1 Note: The further away the mount is from the TDP 5®, the tighter the V Belt’s slack
will be. The correct tension for the V Belt is [N] 94.42.
11. Turn the Hand Wheel for one rotation to ensure that the machine runs smoothly before
plugging it in and turning it on.
6
7
8
9
10
11
