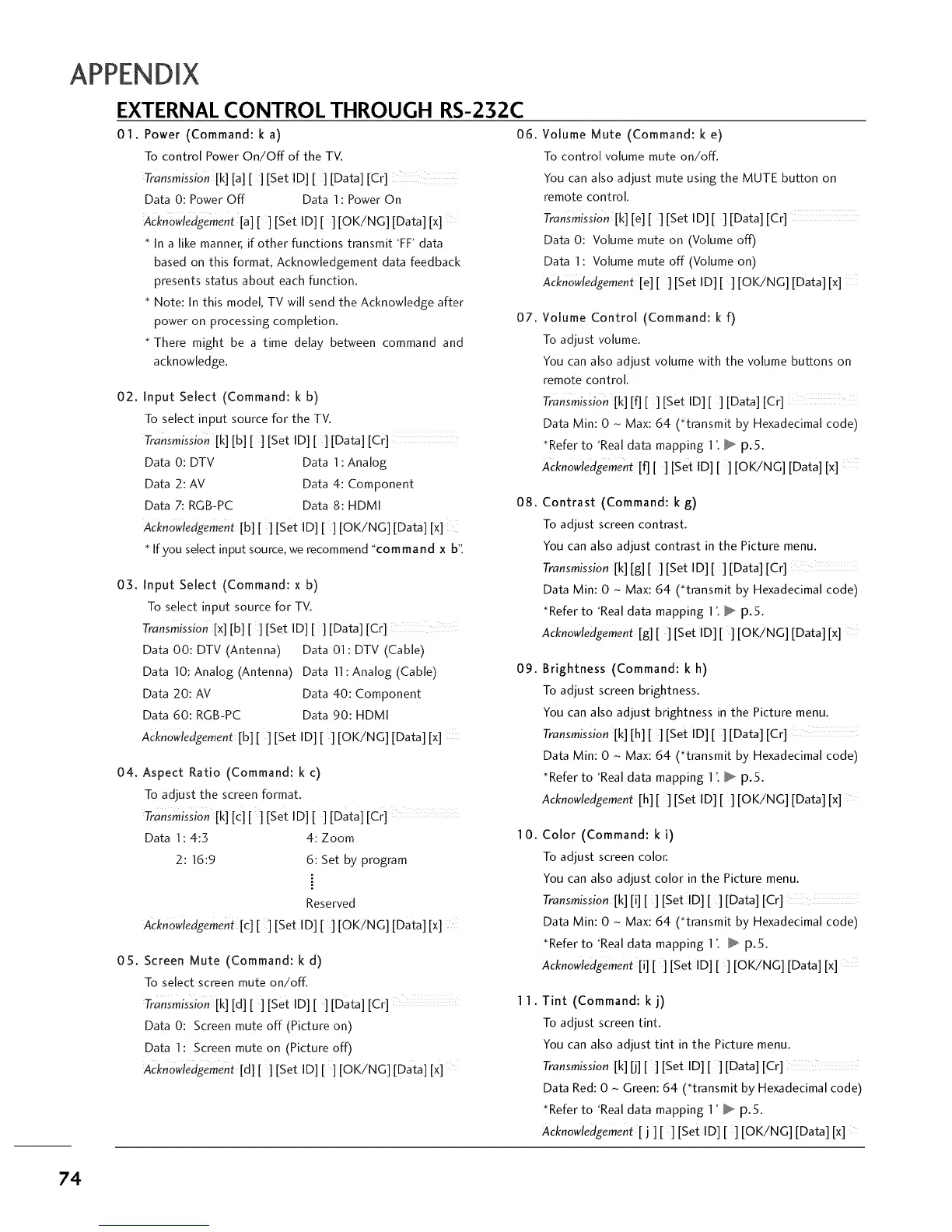

EXTERNAL CONTROL THROUGH
01. Power (Command: k a)
To control Power On/Off of the TV.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data O: Power Off Data 1 : Power On
Acknowledgement [a][] [set ID][] [OK/NG] [Data] [x]
* In a like manner, if other functions transmit 'FF' data
based on this format, Acknowledgement data feedback
presents status about each function.
* Note: In this model, TV will send the Acknowledge after
power on processing completion.
* There might be a time delay between command and
acknowledge.
RS-232C
06.
07.
02.
Input Select (Command: k b)
To select input source for the TV.
Transmission [k] [b] [ ] [Set ID] [ ] [Data] [Cr]
Data 0: DTV Data ] : Analog
Data 2: AV Data 4: Component
Data 7: RGB-PC Data 8: HDMI
Acknowledgement [b][ ][Set ID][ ][OK/NG] [Data] [X]
* If you select input source, we recommend "command x b".
08.
03. Input Select (Command: x b)
To select input source for TV.
Transmission[x] [b][] [Set ID][] [Data] [Cr]
Data 00: DTV (Antenna) Data 01 : DTV (Cable)
Data ]0: Analog (Antenna) Data ]]: Analog (Cable)
Data 20: AV Data 40: Component
Data 60: RGB-PC Data 90: HDMI
Acknowledgement [b] [ ] [Set ID] [] [OK/NG] [Data] [x]
09.
04.
Aspect Ratio (Command: k c)
To adjust the screen format.
Transmission[k] [c][] [Set ID] [ ] [Data] [Cr]
Data ]: 4:5 4: Zoom
2:]6:9 6: Set by program
Reserved
Acknowledgement [c][ l[Set ID][] [OK/NG] [Data] [x]
10.
05.
Screen Mute (Command: k d)
To select screen mute on/off.
TransmissiOn [k] [d][ ][Set ID][ ][Data] [Cr]
Data 0: Screen mute off (Picture on)
Data 1: Screen mute on (Picture off)
Acknowledgement [d][ ][Set ID][ ][OK/NG] [Data] [x]
11.
Volume Mute (Command: k e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k] [e] [ ][Set ID][ ][Data][Cr]
Data 0: Volume mute on (Volume off)
Data 1: Volume mute off (Volume on)
Acknowledgement [e][ ][Set ID][ ] [OK/NO] [Data] [x]
Volume Control (Command: k f)
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Transmission [k] [f] [][Set ID][ ] [Data] [Cr]
Data Min: 0 - Max: 64 (*transmit by Hexadecimal code)
*Refer to 'Real data mapping 1' _ p.5.
Acknowledgement [f] [] [set ID] [] [OK/NG] [Data] [x]
Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the Picture menu.
Transmission [k] [g] [] [Set ID][] [Data] [Cr]
Data Min: 0 - Max: 64 (*transmit by Hexadecimal code)
*Refer to 'Real data mapping 1'. @ p.5.
Acknowledgement [g] [] [Set ID][] [OK/NG] [Data] [x]
Brightness (Command: k h)
To adjust screen brightness.
You can also adjust brightness in the Picture menu.
Transmission [k] [h][
Data Min: 0 - Max:
*Refer to 'Real data
Acknowledgement [h]
] [Set ID][] [Data] [Cr]
64 (*transmit by Hexadecimal code)
mapping 1'. _ p.5.
[] [Set ID][] [OK/NG] [Data] [x]
Color (Command: k i)
To adjust screen color.
You can also adjust color in the Picture menu.
Transmission [k] [i] [] [Set ID] [] [Data] [Cr]
Data Min: 0 _ Max: 64 (*transmit by Hexadecimal code)
*Refer to 'Real data mapping 1' _ p.5.
Acknowledgement [i] [] [Set ID] [] [OK/NG] [Data] [x]
Tint (Command: k j)
To adjust screen tint.
You can also adjust tint in the Picture menu.
Transmission [k] [j] [] [Set ID] [] [Data] [Cr]
Data Red: 0 _ Green: 64 (*transmit by Hexadecimal code)
_Refer to 'Real data mapping 1' _ p.5.
Acknowledgement [j ] [] [Set ID] [] [OK/NG] [Data] [x]
