ASSEMBLING AND PREPARING

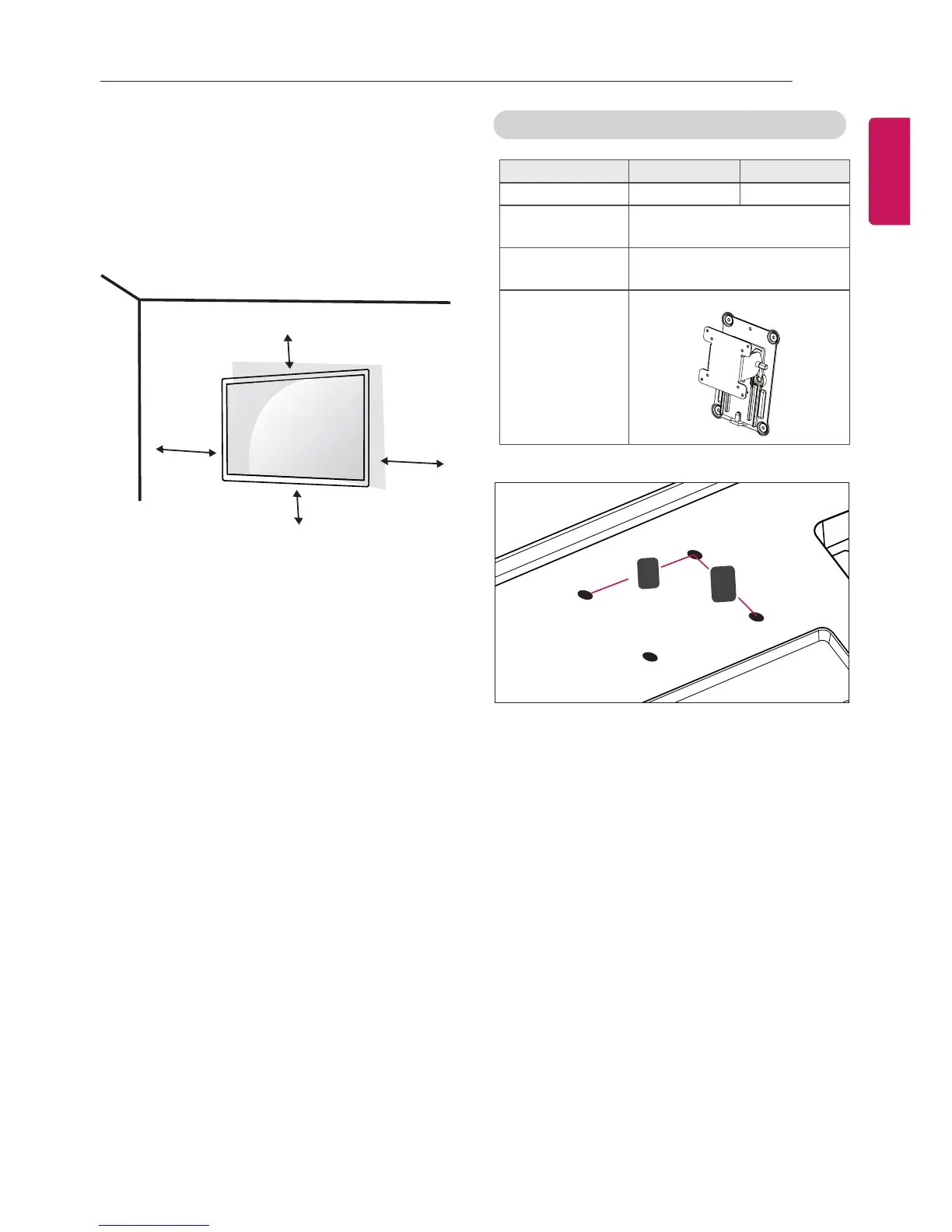

Mounting on a wall
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting
Bracket Installation and Setup Guide.
10 cm
10 cm
10 cm
10 cm
If you intend to mount the TV to a wall, attach
Wall mounting interface (optional parts) to the
back of the TV.
When you install the TV using the wall mounting
interface (optional parts), attach it carefully so it
will not drop.
1 Please, Use the screw and wall mount
interface in accordance with VESA
Standards.
2 If you use screw longer than standard, the
TV might be damaged internally.
3 If you use improper screw, the product
might be damaged and drop from mounted
position. In this case, LG Electronics is not
responsible for it.
4 VESA compatible only with respect to
screw mounting interface dimensions and
mounting screw specifications.
5 Please use VESA standard as below.

784.8 mm and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm

787.4 mm and above
* Please use VESA standard wall mount pad
and screws.
Separate purchase(Wall Mounting Bracket)
Model 22/24MT45* 28/29MT45*
VESA (A x B) 75 x 75 100 x 100
Standard
screw
M4 x L10
Number of
screws
4
Wall mount
bracket
(optional)
RW120

VESA (A x B)
A
B

LG 22MT45D Specifications

General

3D	No
HD type	-
Pixel pitch	0.24795 x 0.24795 mm
Aspect ratio	4:3, 16:9
Composite sync	Yes
Display surface	Matt
Display diagonal	21.5 \
Native aspect ratio	16:9
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	5000000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	200 cd/m²
Digital signal format system	DVB-C, DVB-T
USB Type-A downstream ports quantity	0
RMS rated power	10 W
Number of speakers	2
Product color	Black
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (max)	30 W
Power consumption (off)	0.4 W
Power consumption (standby)	- W
Power consumption (PowerSave)	1 W
Cables included	AC

Weight and Dimensions

Depth (with stand)	166.4 mm
Height (with stand)	364.3 mm
Weight (with stand)	3000 g
Depth (without stand)	56 mm
Width (without stand)	507.6 mm
Height (without stand)	314.7 mm
Weight (without stand)	2800 g
