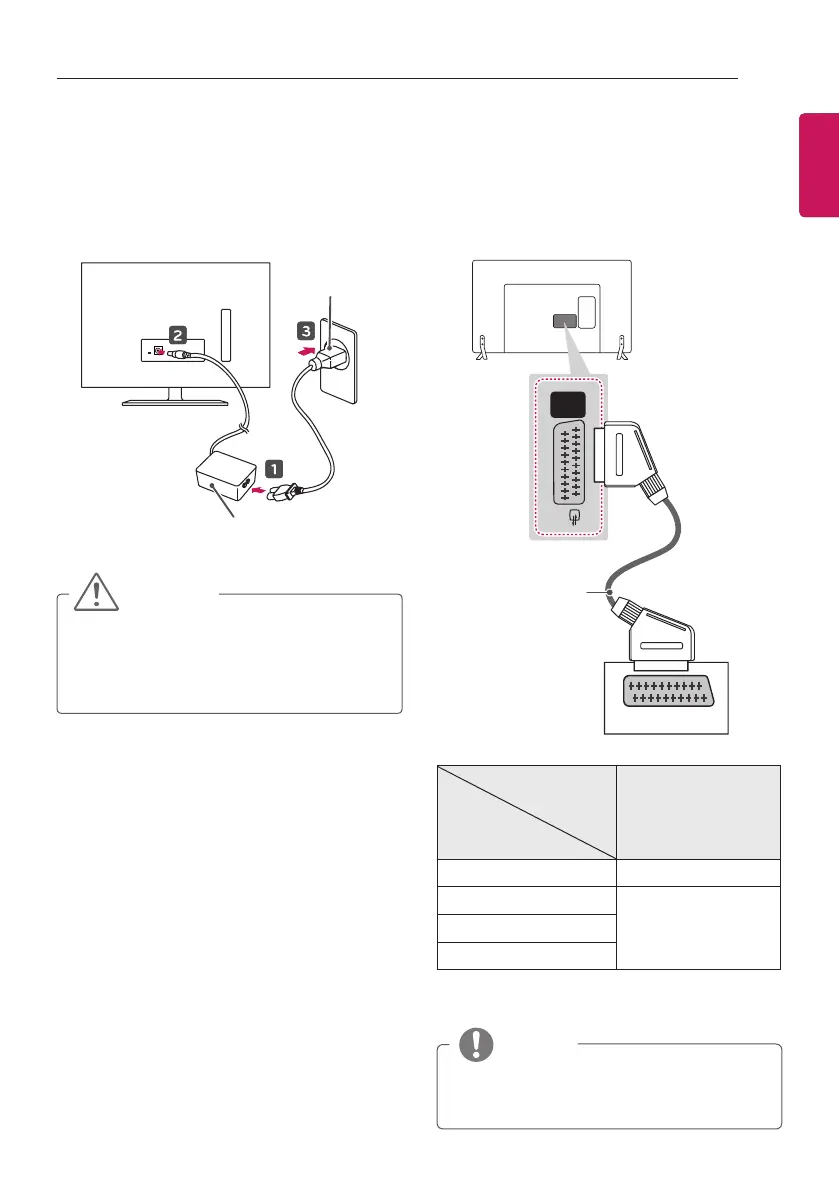

MAKING CONNECTIONS
Adapter Connection
(Only 28LY31**, 22/28LY33**, 22/28LY34**,
22/28LY54**)
(Depending on model)
DC-IN
(19V )
AC-DC Adapter
Power Cord
CAUTION
y
Please be sure to connect the TV to the
AC-DC power adapter before connecting
the TV’s power plug to a wall power
outlet.
Euro Scart Connection
Transmits the video and audio signals from
an external device to the TV set. Connect the
external device and the TV set with the euro
scart cable as shown.
AUDIO / VIDEO
AV
(RGB)
(*Not Provided)
Output
Type
Current
input mode
AV1
(TV Out
1
)
Digital TV Digital TV
Analogue TV, AV
Analogue TVComponent
HDMI
1 TV Out : Outputs Analogue TV or Digital TV
signals.
NOTE
y
Any Euro scart cable used must be signal
shielded.
To Next Page
