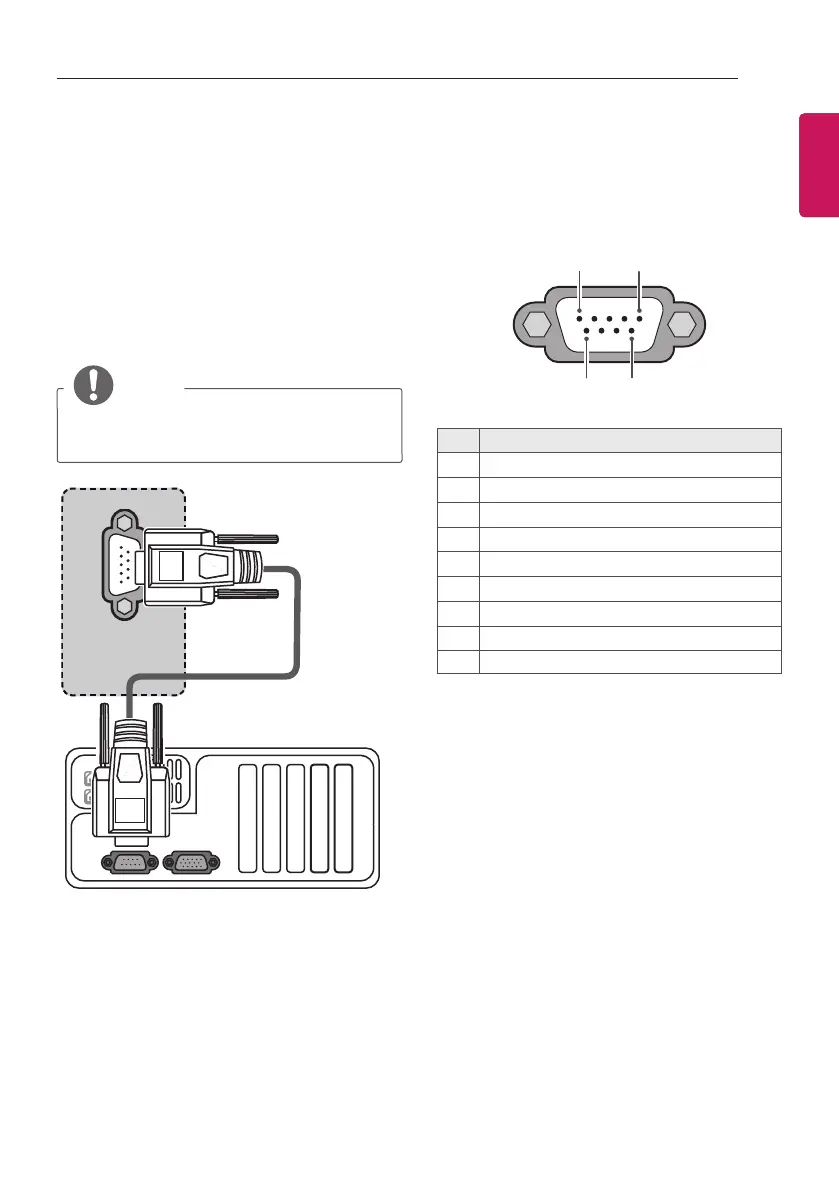

EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
y
Image shown may differ from your TV.
Connect the RS-232C (serial port) input jack to an ex-
ternal control device (such as a computer or an A/V
control system) to control the product’s functions ex-
ternally.
Connect the serial port of the control device to the RS-
232C jack on the product back panel.
NOTE
y
RS-232C connection cables are not
supplied with the product.
RS-232C IN
(CONTROL & SERVICE)
(*Not Provided)
Type of Connector:
D-Sub 9-Pin Male
6
1 5
9
No. Pin name
1
3.5 V
2
RXD (Receive data)
3
TXD (Transmit data)
4
IR OUT from TV
5
GND
6
No Connection
7
No Connection (5 V available in LY54**)
8
No Connection
9 No Connection (12 V available in LY54**)
