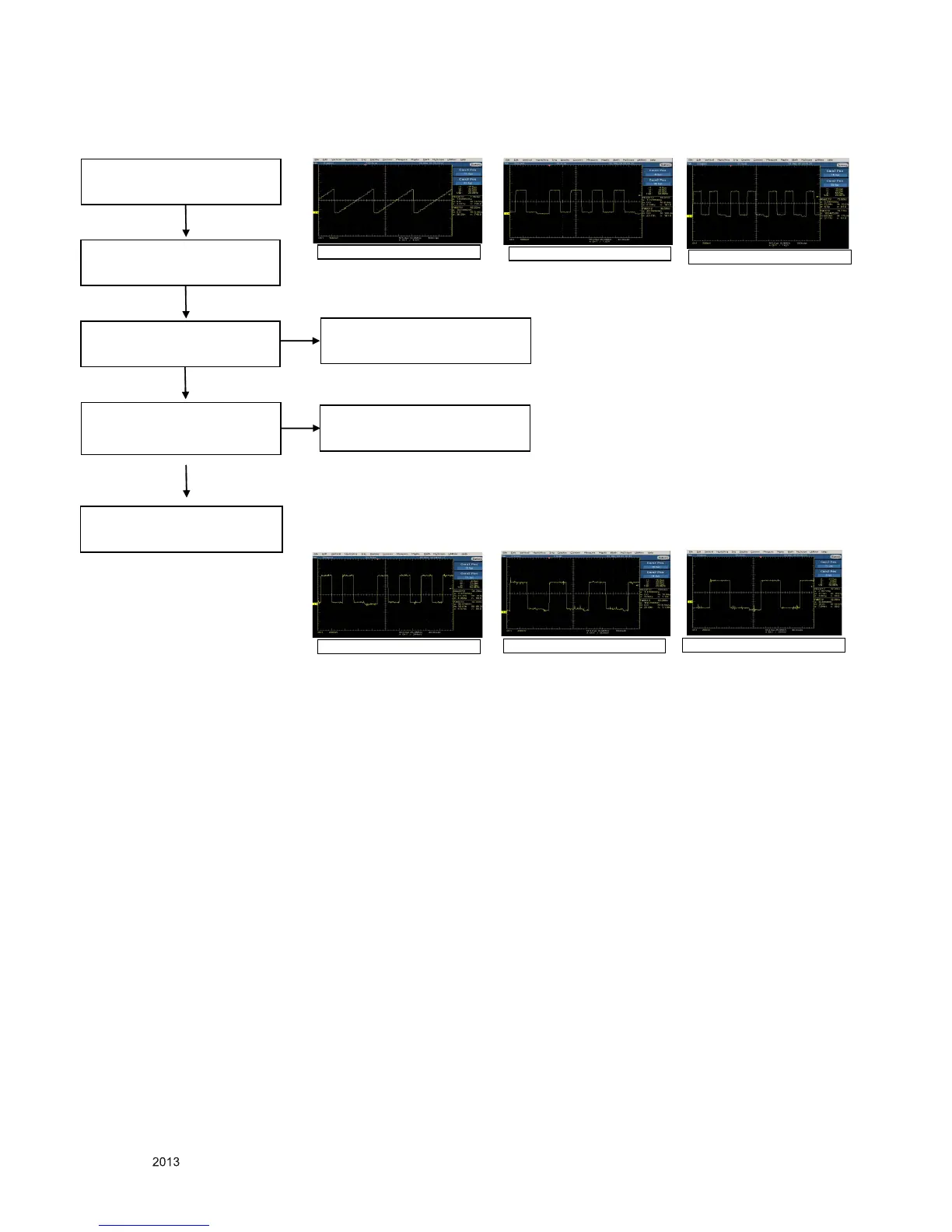

4. No Video - Component
Wave form of C220
Wave form of C218
Wave form of C222
Wave form of Comp Y
Wave form of Comp Pb
Wave form of Comp Pr
Check input signal format
Is it supported?
Check signal
R239,R237,R241
C220,C218,C222
Replace R239,R237,R241
C220,C218,C222
Y
N
Check JK2800
Replace JK2800 or
Check Device
Y
N
Y
IC101 has problem
Y
Check Component Cable
