ADJUSTMENT INSTRUCTION
1. Application Range
This document is applied to LA31R chassis TV which is
manufactured in TV (or Monitor) Factory or is produced on the
basis of this data.
2. Designation
1) The adjustment is according to the order which is designat-
ed and which must be followed, according to the plan which
can be changed only on agreeing.
2) Power adjustment : Free Voltage.
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specication Standard.
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 °C ± 5 °C
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz
6) Adjustment equipments : Color Analyzer (CA-210 or CA-
110), DDC Adjustment Jig equipment, SVC remote control-
ler.
7) Push The "IN STOP KEY" – For memory initialization

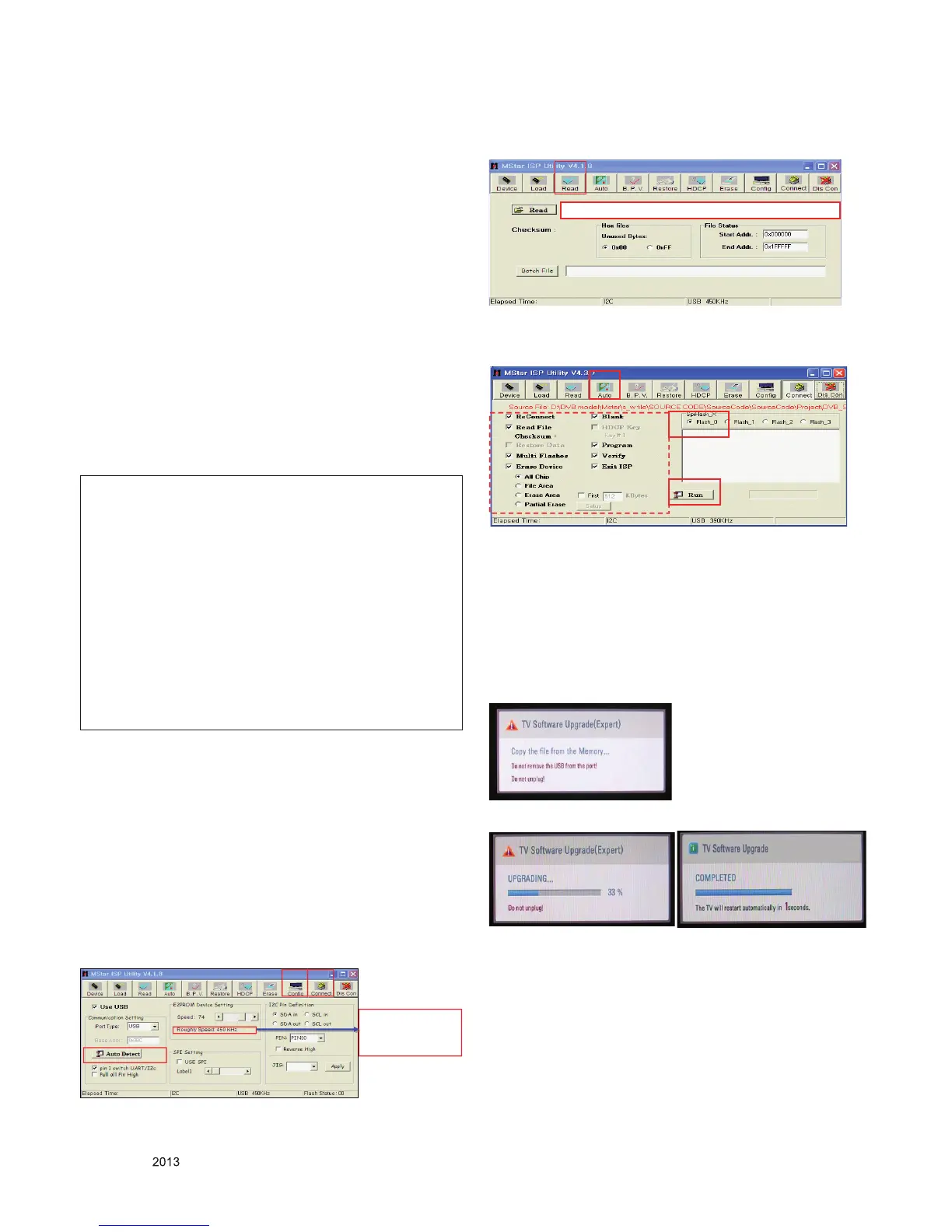

3. Main PCB check process
* APC - After Manual-Insult, executing APC
* Boot le Download
1) Execute ISP program “Mstar ISP Utility” and then click
“Cong” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message. If display “Error”, Check connect computer, jig,
and set.
3) Click “Connect” tab. If display “Can’t ”, Check connect
computer, jig, and set.
4) Click “Read” tab, and then load download le(XXXX.bin) by
clicking “Read”
5) Click “Auto” tab and set as below
6) Click “Run”.
7) After downloading, check “OK” message.
* USB DOWNLOAD(*.epk le download)
1) Make New folder named “LG_DTV” and put ISP le(*.epk)
in the folder.
2) Put the USB Stick to the USB socket.
3) Automatically detecting update le in USB Stick
- If your downloaded program version in USB Stick is
Low, it didn’t work. But your downloaded version is
High, USB data is automatically detecting.
4) Show the message “Copy the le from the Memory…”
5) Updating is starting.
6) Updating Completed, The TV will restart automatically.
7) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV
have, TV can lost all channel data. In this case, you
have to channel recover. if all channel data is cleared,
you didn’t have a DTV/ATV test on production line.
(1) (3)
(
2
)
OK
Please Check the Speed :
Use the speed under
200KHz.
(4)
filexxx.bin
(
6
)
(5)
(7) ……….OK
(
5
)
Case1 : Software version up
1) After downloading S/W by USB , Multi-vision set will
reboot automatically
2) Push "In-stop" key
3) Push "Power on" key
4) Function inspection
5) After function inspection, Push "In-stop" key.
Case2 : Function check at the assembly line
1) When TV set is entering on the assembly line, Push "In-
stop" ke y at rst.
2) Push "Power on" key for turning it on.
→ If you push "Power on" key, TV set will recover channel
information by itself.
3) After function inspection, Push "In-stop" key.

LG 29MN33D Specifications

General

Screen shape	Flat
Response time	9.5 ms
Display diagonal	29 \
Display brightness	250 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
LED backlighting type	-
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Contrast ratio (dynamic)	5000000:1
Supported graphics resolutions	1280 x 720 (HD 720), 1366 x 768
3D	No
Annual energy consumption	50 kWh
Tuner type	Analog
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	10 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	223 mm
Height (with stand)	472 mm
Weight (with stand)	5900 g
Depth (without stand)	65.8 mm
Width (without stand)	669 mm
Height (without stand)	405 mm
Weight (without stand)	5300 g
