ASSEMBLING AND PREPARING

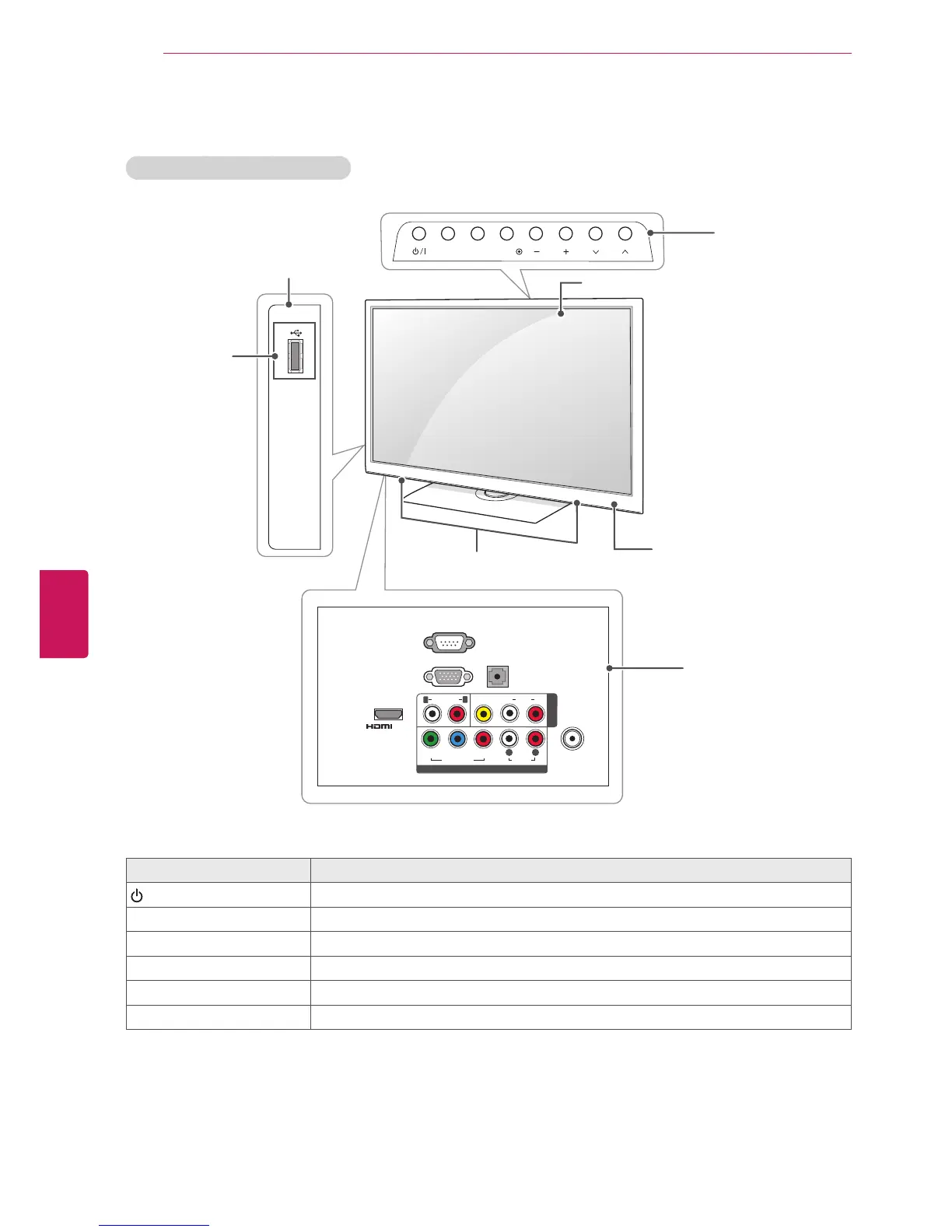

Parts and buttons
Button Description
/
I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the main menus, or saves your input and exits the menus.
ENTER
⊙
Selects the highlighted menu option or confirms an input.
- VOL + Adjusts the volume level.
v
CH
^
Scrolls through the saved channels.
USB IN
COMPONENT IN
AUDIO
VIDEO
Y
P
B
P
R
L
R
AUDIO
VIDEO
L/MONO
R
RGB IN (PC)
RS-232C IN
(CONTROL)
AUDIO IN
(RGB/DVI)
AV IN
AUDIO OUT
ANTENNA
IN
/DVI IN
2
INPUT HOME
CHVOL
ENTER
R
L
Remote control sensors,
Power indicator
USB Input
Screen
Speakers
Rear Connection Panel
(see p.43)
Buttons
Side Connection Panel
22LK310, 22LK311, 22LK311C
