A-6
PREPARATION
PREPARATION

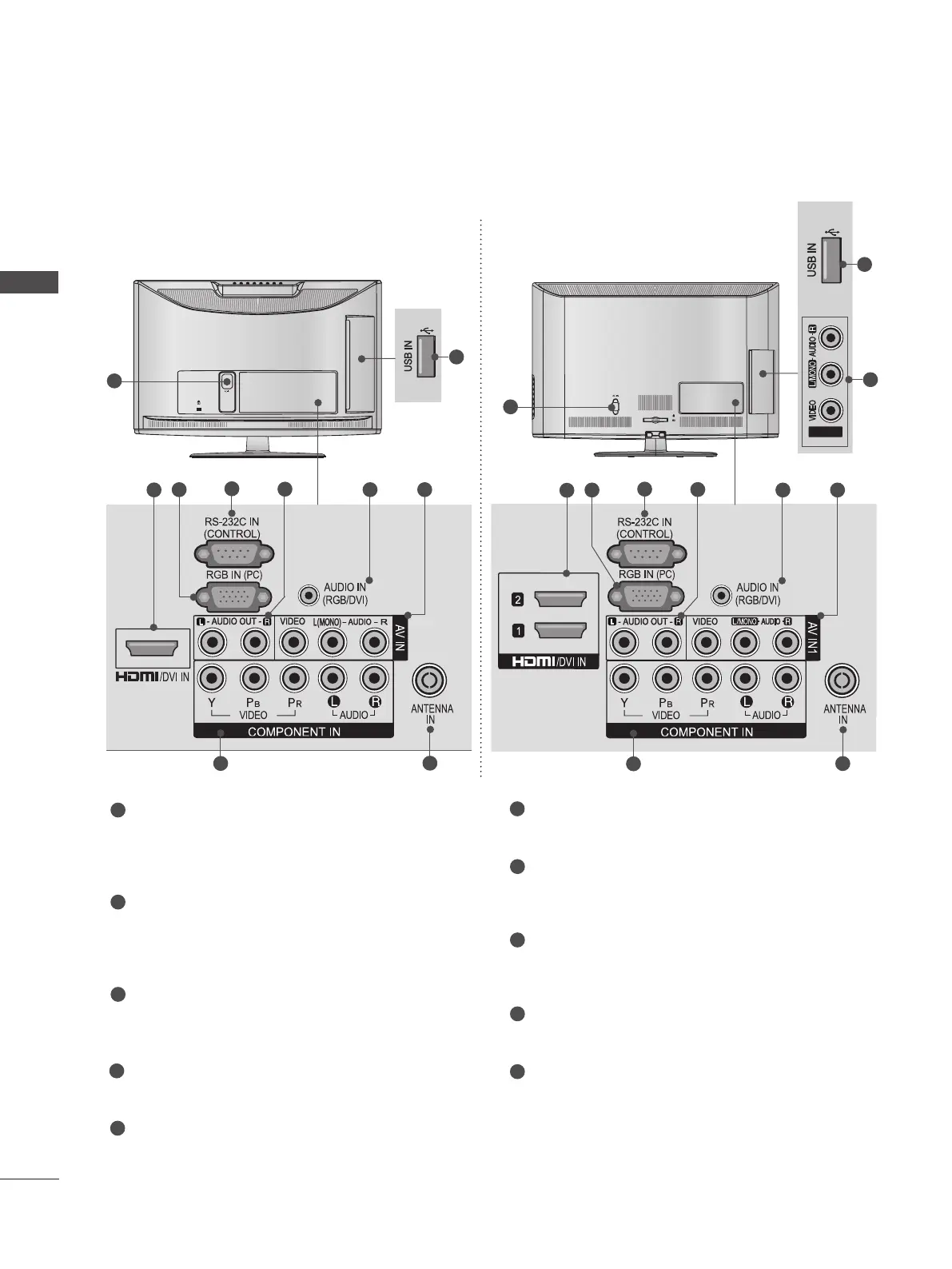

BACK PANEL INFORMATION
â– Image shown may differ from your TV.
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
HDMI Input
Connect an HDMI signal to HDMI IN.
Or DVI(VIDEO)signal to HDMI/DVI port with DVI
to HDMI cable.
RS-232C Input (CONTROL&SERVICE) Port
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
RGB Input
Connect the output from a PC.
Audio Output
Connect an external amplifier or add a subwoofer
to your surround sound system.
RGB/DVI Audio Input
Connect the audio from a PC.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Component Input
Connect a component video/audio device to these
jacks.
Antenna Input
Connect RF antenna to this jack.
USB Input
Connect USB storage device to this jack.
1
2
3
4
5
6
7
8
9
10
Only 22LK3**
10
1
2
4
5
6 7
3
9
8
4
5
6 7
3
9
8
2
AV IN2
ANTENNA
IN
L/MONO
R
AUDIO
VIDEO
AV IN1
1
AUDIO IN
(RGB/DVI)
RGB IN
(PC)
RS-232C IN
(CONTROL)
26/32LD340
COMPONENT IN
AUDIO
VIDEO
ANTENNA
IN
L(MONO)
R
AUDIO
VIDEO
AV IN
AUDIO IN
(RGB/DVI)
RGB IN
(PC)
RS-232C IN
(CONTROL)
19/22LD340
2
/DVI IN
/DVI IN
1
Only 26/32LK3**
10
7
To Next Page
