LG 32LS4600 - Component Connection for Analog Signals

23
ENG
ENGLISH
MAKING CONNECTIONS

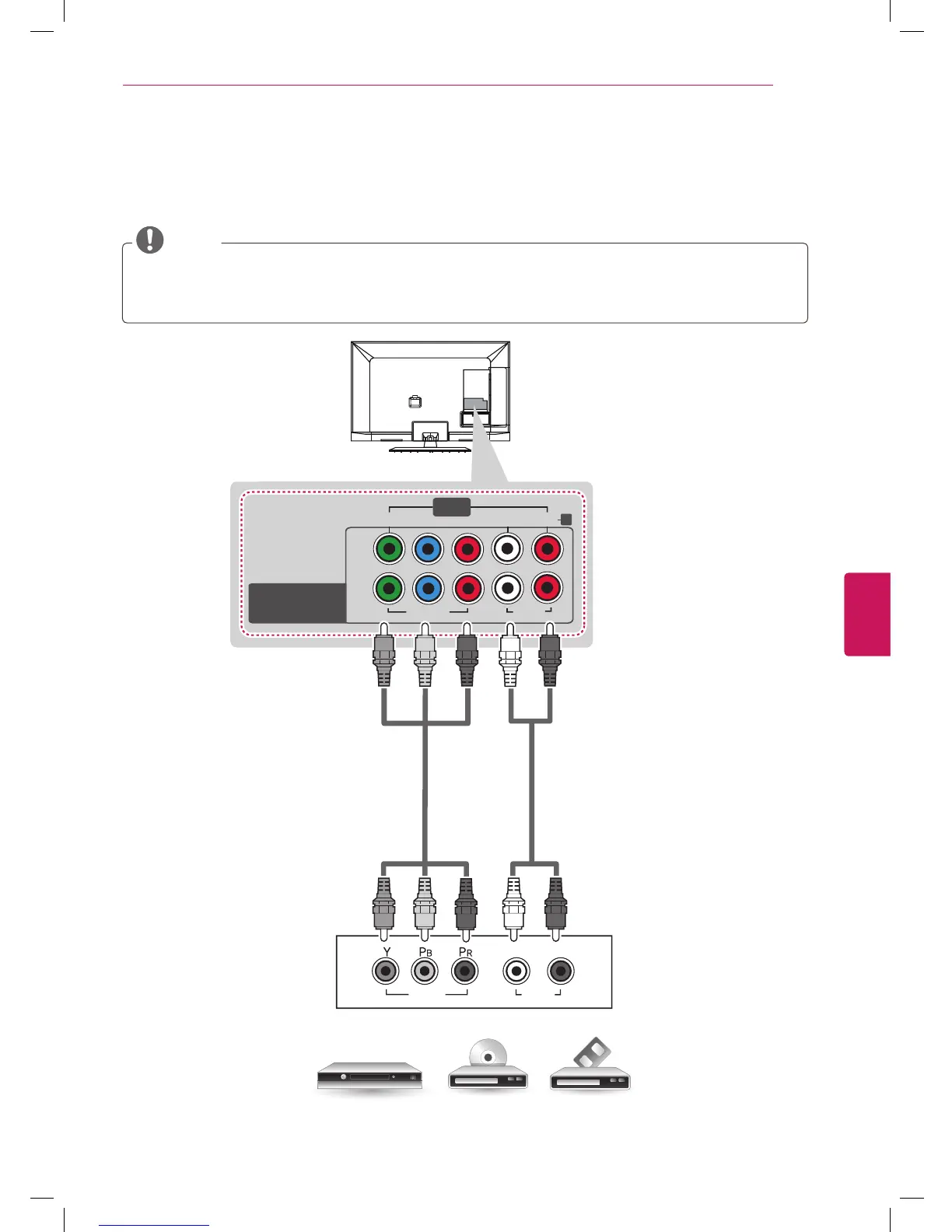

Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
NOTE
y
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
y
Check to ensure the cables are matched with the corresponding color connection.
AUDIO
VIDEO
L R
VIDEO
PB PR
1
2
Y
AUDIO
R
L/MONO
VIDEO
AUDIO
AV IN
L R
COMPONENT
IN
(*Not Provided) (*Not Provided)
DVD/ Blu-Ray / HD Cable Box
GREEN GREEN
BLUE
BLUE
RED
RED
RED
RED
WHITE
WHITE
