LG 32LS4600 - Composite Connection for Analog Signals

24
ENG
ENGLISH
MAKING CONNECTIONS
Composite Connection

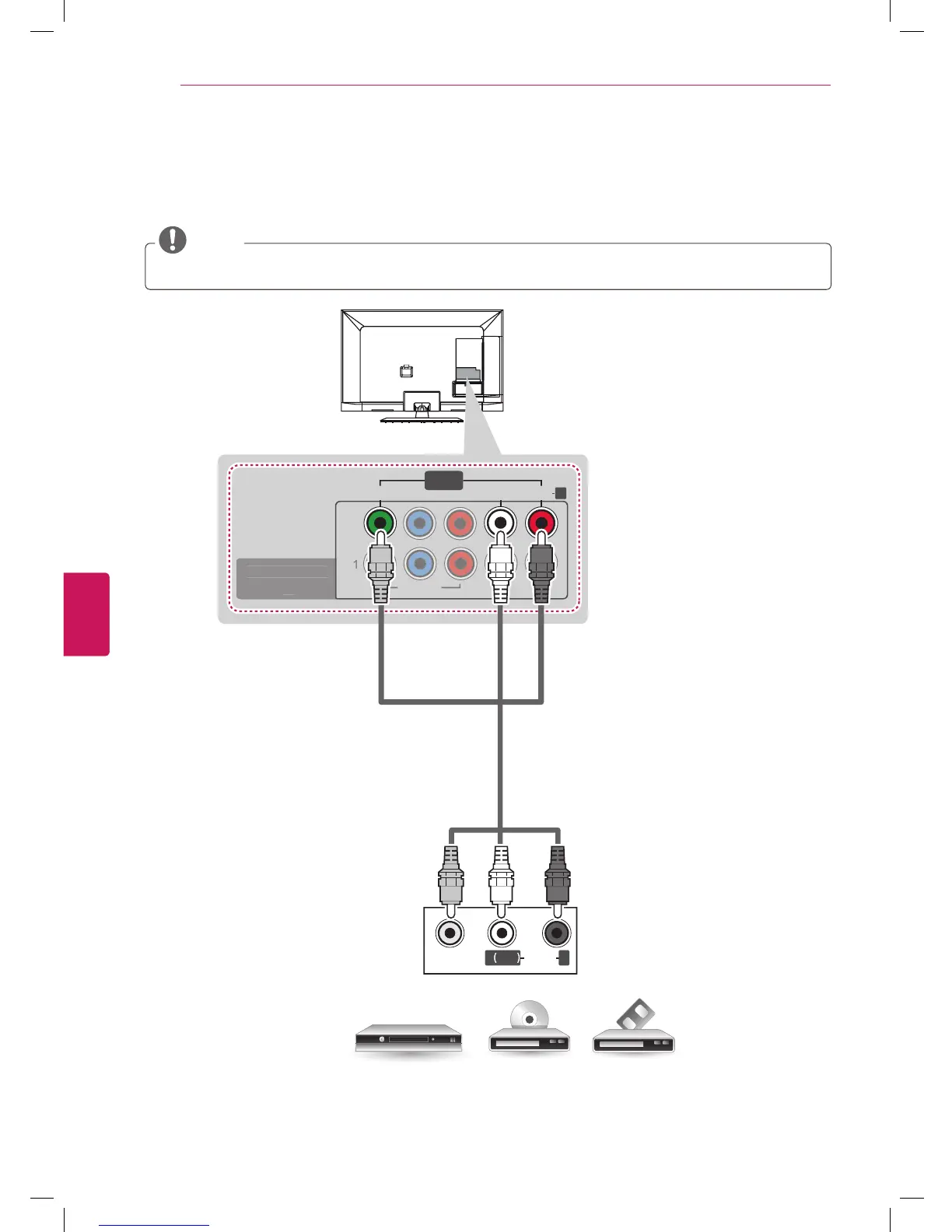

Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a composite cable as shown in the following illustration.
NOTE
y
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
VIDEO
P
B
P
R
1
2
Y
AUDIO
R
L/MONO
V
IDE
O
AU
DI
O
AV IN
L
R
COMPONEN
T
IN
VIDEO
MONO
( )
AUDIOL R
VCR / DVD/ Blu-Ray / HD Cable Box
(*Not Provided)
YELLOW
WHITE
RED
YELLOW
WHITE
RED
